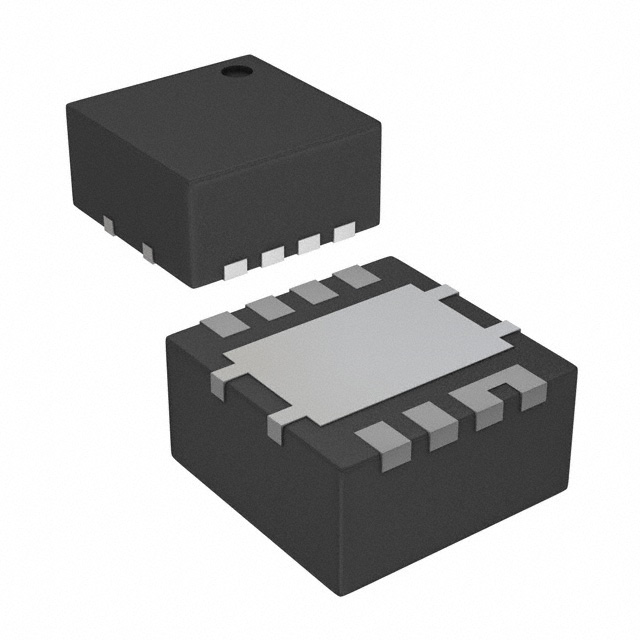

CSD87331Q3D Series

30-V, N channel synchronous buck NexFET™ power MOSFET, SON 3 mm x 3 mm power block, 15 A

Catalog

30-V, N channel synchronous buck NexFET™ power MOSFET, SON 3 mm x 3 mm power block, 15 A

Part	Vgs(th) (Max) @ Id	Vgs(th) (Max) @ Id	Supplier Device Package	Package / Case	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Mounting Type	Drain to Source Voltage (Vdss)	Power - Max [Max]	Gate Charge (Qg) (Max) @ Vgs	Technology
Texas Instruments CSD87331Q3D	1.2 V	2.1 V	8-LSON (5x6)	8-PowerLDFN	15 A	518 pF	-55 °C	150 °C	2 N-Channel (Half Bridge)	Surface Mount	30 V	6 W	3.2 nC	MOSFET (Metal Oxide)

Catalog

30-V, N channel synchronous buck NexFET™ power MOSFET, SON 3 mm x 3 mm power block, 15 A

Key Features

• Half-Bridge Power BlockUp to 27-V VINUp to 15-A Operation91% System Efficiency at 10 AHigh-Frequency Operation (up to 1.5 MHz)High Density SON 3.3-mm × 3.3-mm FootprintOptimized for 5-V Gate DriveLow-Switching LossesUltra-Low-Inductance PackageRoHS CompliantHalogen FreeLead-Free Terminal PlatingHalf-Bridge Power BlockUp to 27-V VINUp to 15-A Operation91% System Efficiency at 10 AHigh-Frequency Operation (up to 1.5 MHz)High Density SON 3.3-mm × 3.3-mm FootprintOptimized for 5-V Gate DriveLow-Switching LossesUltra-Low-Inductance PackageRoHS CompliantHalogen FreeLead-Free Terminal Plating

Description

The CSD87331Q3D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 3.3-mm × 3.3-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver. The CSD87331Q3D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 3.3-mm × 3.3-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver.
