HEN.2F Series

Standard Circular Connector FIXED RECEPTACLE NUT FIXING

Manufacturer: LEMO

Catalog

Standard Circular Connector FIXED RECEPTACLE NUT FIXING

Catalog

Standard Circular Connector FIXED RECEPTACLE NUT FIXING

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Positions	Contact Finish - Mating	Mounting Feature	Material Flammability Rating	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Orientation	Ingress Protection	Features	Color	Current Rating (Amps)	Mounting Type	Shell Material	Insert Material	Primary Material	Shell Size - Insert	Fastening Type	Applications	Connector Type	Termination
LEMO HEN.2F.319.CLLP	1.5 Ám	59 Áin	Bronze	19	Gold	Bulkhead - Front Side Nut	UL94 V-0	Shielded	150 °C	-50 °C	Chrome	N (Normal)	IP68 - Dust Tight Waterproof	Potted	Silver	5 A	Panel Mount	Brass	Polyetheretherketone (PEEK)	Metal	319	Push-Pull	Aerospace	Receptacle Female Sockets
LEMO HEN.2F.312.XLNP	1.5 Ám	59 Áin	Bronze	12	Gold	Bulkhead - Front Side Nut	UL94 V-0	Shielded	100 °C	-15 °C	Nickel	N (Normal)	IP68 - Dust Tight Waterproof	Potted	Gray	7 A	Panel Mount Through Hole	Aluminum Alloy	Polyetheretherketone (PEEK)	Metal	312	Push-Pull	Aerospace	Receptacle Female Sockets	Solder
LEMO HEN.2F.308.XLLP	1.5 Ám	59 Áin	Bronze	8	Gold	Bulkhead - Front Side Nut	UL94 V-0	Shielded	100 °C	-15 °C	Nickel	N (Normal)	IP68 - Dust Tight Waterproof	Potted	Gray	10 A	Panel Mount	Aluminum Alloy	Polyetheretherketone (PEEK)	Metal	308	Push-Pull	Aerospace	Receptacle Female Sockets
LEMO HEN.2F.319.MLNP	1.5 Ám	59 Áin	Bronze	19	Gold	Bulkhead - Front Side Nut	UL94 V-0	Shielded				N (Normal)	IP68 - Dust Tight Waterproof	Potted		5 A	Panel Mount Through Hole		Polyetheretherketone (PEEK)		319	Push-Pull	Aerospace	Receptacle Female Sockets	Solder

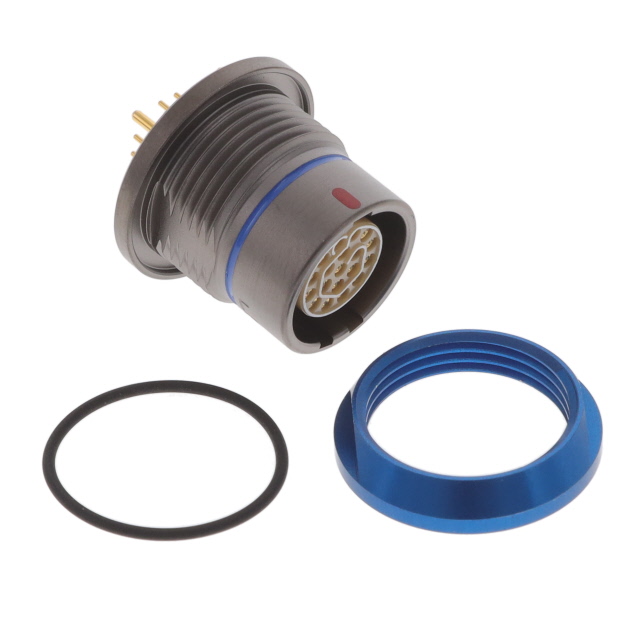

LEMO HEN.2F.319.XLNP	1.5 Ám	59 Áin	Bronze	19	Gold	Bulkhead - Front Side Nut	UL94 V-0	Shielded	100 °C	-15 °C	Nickel	N (Normal)	IP68 - Dust Tight Waterproof	Potted	Gray	5 A	Panel Mount Through Hole	Aluminum Alloy	Polyetheretherketone (PEEK)	Metal	319	Push-Pull	Aerospace	Receptacle Female Sockets	Solder
LEMO HEN.2F.319.CLNP	1.5 Ám	59 Áin	Bronze	19	Gold	Bulkhead - Front Side Nut	UL94 V-0	Shielded	150 °C	-50 °C	Chrome	N (Normal)	IP68 - Dust Tight Waterproof	Potted	Silver	5 A	Panel Mount Through Hole	Brass	Polyetheretherketone (PEEK)	Metal	319	Push-Pull	Aerospace	Receptacle Female Sockets	Solder
LEMO HEN.2F.310.XLNP	1.5 Ám	59 Áin	Bronze	10	Gold	Bulkhead - Front Side Nut	UL94 V-0	Shielded	100 °C	-15 °C	Nickel	N (Normal)	IP68 - Dust Tight Waterproof	Potted	Gray	8 A	Panel Mount Through Hole	Aluminum Alloy	Polyetheretherketone (PEEK)	Metal	310	Push-Pull	Aerospace	Receptacle Female Sockets	Solder

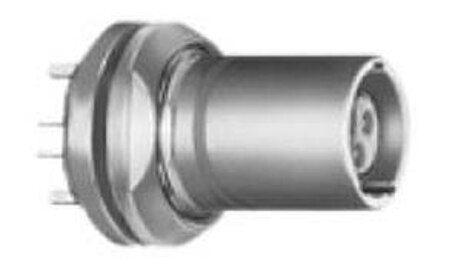

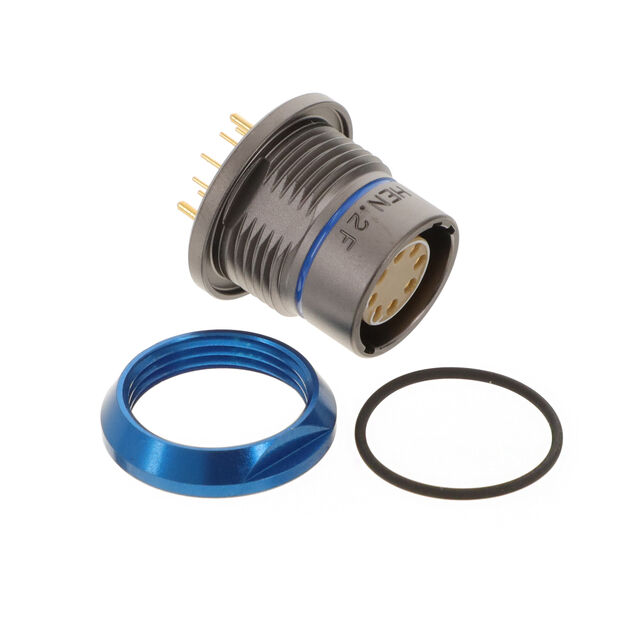

LEMO HEN.2F.308.XLNP	1.5 Ám	59 Áin	Bronze	8	Gold	Bulkhead - Front Side Nut	UL94 V-0	Shielded	100 °C	-15 °C	Nickel	N (Normal)	IP68 - Dust Tight Waterproof	Potted	Gray	10 A	Panel Mount Through Hole	Aluminum Alloy	Polyetheretherketone (PEEK)	Metal	308	Push-Pull	Aerospace	Receptacle Female Sockets	Solder
LEMO HEN.2F.319.XLLPY	1.5 Ám	59 Áin	Bronze	19	Gold	Bulkhead - Front Side Nut	UL94 V-0	Shielded	100 °C	-15 °C	Nickel	N (Normal)	IP68 - Dust Tight Waterproof	Potted	Gray	5 A	Panel Mount	Aluminum Alloy	Polyetheretherketone (PEEK)	Metal	319	Push-Pull	Aerospace	Receptacle Female Sockets
