K88X-ED Series
Manufacturer: Kycon, Inc.
Beta
⌘K
CONN D-SUB PLUG 9POS VERT SOLDER
| Part | Voltage Rating | Dielectric Material | Color | Contact Material | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Flange Feature | Mounting Type | Contact Finish | Material Flammability Rating | Contact Finish Thickness | Connector Type | Contact Type | Connector Style | Features | Number of Rows [custom] | Shell Material, Finish | Current Rating (Amps) | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

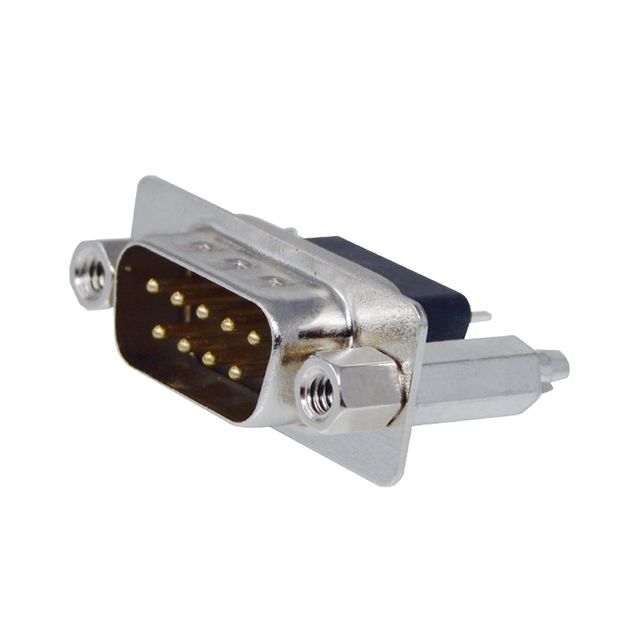

 Kycon, Inc. | 30 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | Brass | Stamped | -55 C | 105 ░C | 1 | DE E | 9 | Board Side (4-40) | Through Hole | Gold | UL94 V-0 | Flash | Plug Male Pins | Signal | D-Sub | Grounding Indents | 2 | Nickel Plated Steel | 2 A | Solder | ||
 Kycon, Inc. | 30 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | Brass | Stamped | -55 C | 105 ░C | 1 | DE E | 9 | Board Side (4-40) Mating Side Female Screwlock (4-40) | Through Hole | Gold | UL94 V-0 | Plug Male Pins | Signal | D-Sub | Board Lock Grounding Indents | 2 | Nickel Plated Steel | 2 A | Solder | 30 Áin | 0.76 Ám | |
Kycon, Inc. | 30 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | Brass | Stamped | -55 C | 105 ░C | 1 | DE E | 9 | Board Side (4-40) Mating Side Female Screwlock (4-40) | Through Hole | Gold | UL94 V-0 | Flash | Plug Male Pins | Signal | D-Sub | Grounding Indents | 2 | Nickel Plated Steel | 2 A | Solder | ||

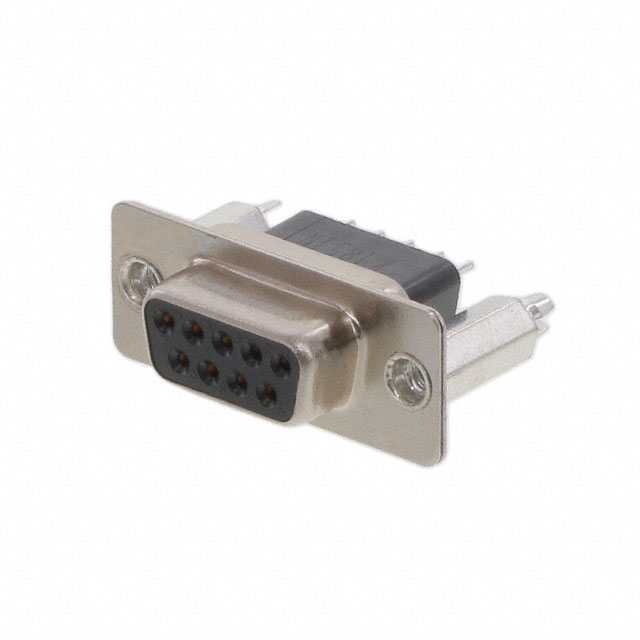

 Kycon, Inc. | 30 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | Phosphor Bronze | Stamped | -55 C | 105 ░C | 1 | DE E | 9 | Board Side (4-40) | Through Hole | Gold | UL94 V-0 | Flash | Receptacle Female Sockets | Signal | D-Sub | Board Lock | 2 | Nickel Plated Steel | 2 A | Solder | ||
Kycon, Inc. | 30 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | Phosphor Bronze | Stamped | -55 C | 105 ░C | 1 | DE E | 9 | Board Side (4-40) | Through Hole | Gold | UL94 V-0 | Receptacle Female Sockets | Signal | D-Sub | Board Lock | 2 | Nickel Plated Steel | 2 A | Solder | 30 Áin | 0.76 Ám |
