2404815 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

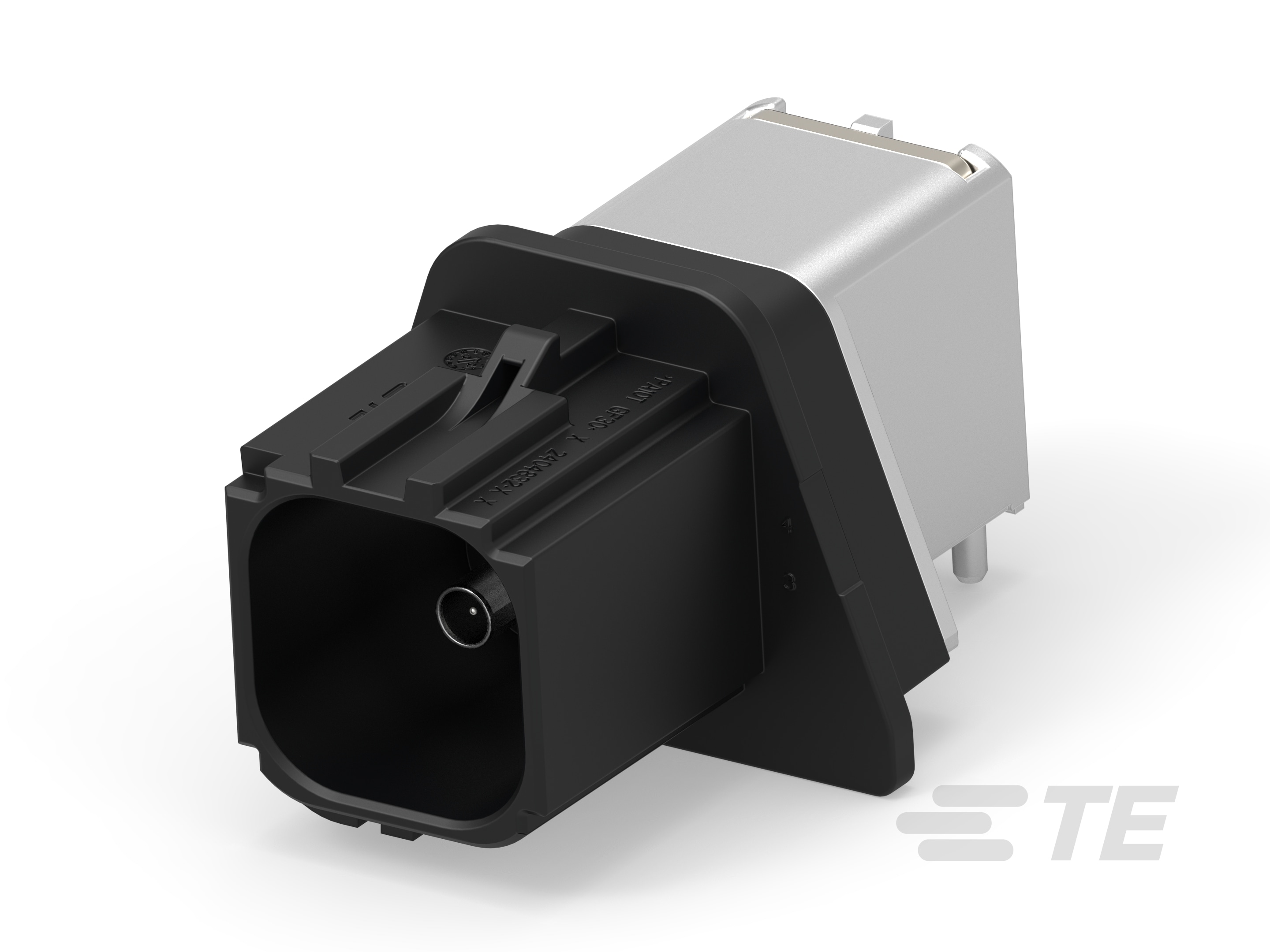

1X4 COMBO,MATE-AX,HDR ASSY,SEALE

Part	Features	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Style	Connector Type	Voltage Rating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Finish - Post	Insulation Color	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Material	Number of Rows	Shrouding	Contact Shape	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Material
TE Connectivity Raychem Cable Protection 2404815-9	Board Guide	20.75 mm	0.817 in	-40 °C	105 ░C	Solder	Board to Cable/Wire	Header	60 VDC	2.16 mm	0.085 in	0.3 µm	12 µin	4	Tin	Blue	Silver	5 mm	0.197 in	Male Pin	Copper Alloy	2	Shrouded - 4 Wall	Circular	Through Hole Right Angle	5 mm	0.197 "	All	Locking Ramp	78.7 µin	2 µm	3 A	Polyamide (PA10T) Nylon 10T
TE Connectivity Raychem Cable Protection 2404815-1	Board Guide	20.75 mm	0.817 in	-40 °C	105 ░C	Solder	Board to Cable/Wire	Header	60 VDC	2.16 mm	0.085 in	0.3 µm	12 µin	4	Tin	Black	Silver	5 mm	0.197 in	Male Pin	Copper Alloy	2	Shrouded - 4 Wall	Circular	Through Hole Right Angle	5 mm	0.197 "	All	Locking Ramp	78.7 µin	2 µm	3 A	Polyamide (PA10T) Nylon 10T
TE Connectivity Raychem Cable Protection 2404815-2	Board Guide	20.75 mm	0.817 in	-40 °C	105 ░C	Solder	Board to Cable/Wire	Header	60 VDC	2.16 mm	0.085 in	0.3 µm	12 µin	4	Tin	White	Silver	5 mm	0.197 in	Male Pin	Copper Alloy	2	Shrouded - 4 Wall	Circular	Through Hole Right Angle	5 mm	0.197 "	All	Locking Ramp	78.7 µin	2 µm	3 A	Polyamide (PA10T) Nylon 10T
