LY M67F Series

Catalog

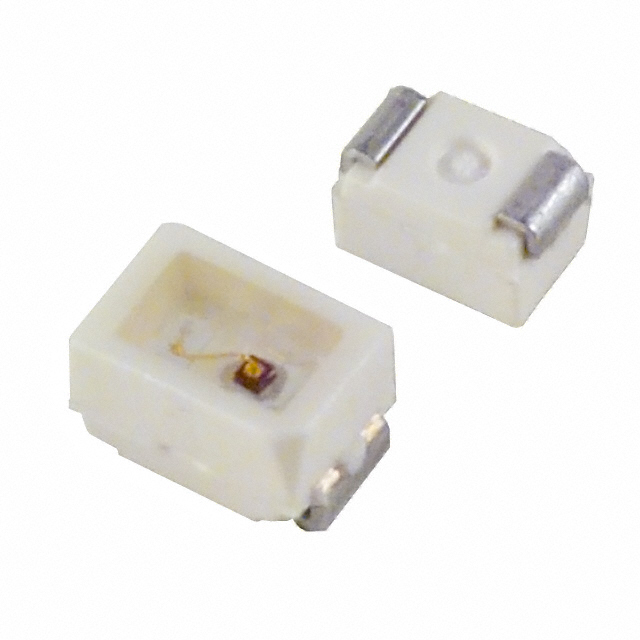

LED YELLOW CLEAR SMD

Part	Millicandela Rating	Color	Height (Max) [Max] [z]	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ)	Lens Transparency	Package / Case	Wavelength - Peak	Supplier Device Package	Wavelength - Dominant	Lens Style	Mounting Type	Current - Test	Lens Color	Viewing Angle	Configuration
ams-OSRAM USA INC. LY M67F-U2V2-56-1-20-R18-ZV-XX	840 mcd	Yellow	1.4 mm	1.5 mm	1 mm	2.2 V	Clear	2-SMD J-Lead	597 nm	SMD	592 nm	Rectangle with Flat Top	Surface Mount	20 mA	Colorless	120 °
ams-OSRAM USA INC. LY M67F-U2V2-34-1-20-R18-Z	840 mcd	Yellow	1.4 mm	1.5 mm	1 mm	2.2 V	Clear	2-SMD J-Lead	597 nm	SMD	586 nm	Rectangle with Flat Top	Surface Mount	20 mA	Colorless	120 °
ams-OSRAM USA INC. LY M67F-U1V2-45-1-20-R18-Z	785 mcd	Yellow	1.4 mm	1.5 mm	1 mm	2.2 V	Clear	2-SMD J-Lead	597 nm	SMD	589 nm	Rectangle with Flat Top	Surface Mount	20 mA	Colorless	120 °
ams-OSRAM USA INC. LY M67F-V1-4-1-20-R18-Z-BP		Yellow	1.4 mm	1.5 mm	1 mm	2.2 V	Clear	2-SMD J-Lead	597 nm	SMD	588 nm	Rectangle with Flat Top	Surface Mount	20 mA	Colorless	120 °
ams-OSRAM USA INC. LY M67F-T2V2-36-1-20-R18-Z	737.5 mcd	Yellow	1.4 mm	1.5 mm	1 mm	2.2 V	Clear	2-SMD J-Lead	597 nm	SMD	590 nm	Rectangle with Flat Top	Surface Mount	20 mA	Colorless	120 °	Standard
ams-OSRAM USA INC. LY M67F-V1V2-45-G3R3-20-R18-Z-XX	915 mcd	Yellow	1.4 mm	1.5 mm	1 mm	2.2 V	Clear	2-SMD J-Lead	597 nm	SMD	589 nm	Rectangle with Flat Top	Surface Mount	20 mA	Colorless	120 °
ams-OSRAM USA INC. LY M67F-U2V2-56-1-20-R18-Z-XX	840 mcd	Yellow	1.4 mm	1.5 mm	1 mm	2.2 V	Clear	2-SMD J-Lead	597 nm	SMD	592 nm	Rectangle with Flat Top	Surface Mount	20 mA	Colorless	120 °
ams-OSRAM USA INC. LY M67F-U2V1-4-1-20-R18-Z-XX	735 mcd	Yellow	1.4 mm	1.5 mm	1 mm	2.2 V	Clear	2-SMD J-Lead	597 nm	SMD	588 nm	Rectangle with Flat Top	Surface Mount	20 mA	Colorless	120 °
ams-OSRAM USA INC. LY M67F-U2-4-1-20-R18-Z-BP		Yellow	1.4 mm	1.5 mm	1 mm	2.2 V	Clear	2-SMD J-Lead	597 nm	SMD	590 nm	Rectangle with Flat Top	Surface Mount	20 mA	Colorless	120 °
