SP4062-04UTG Series

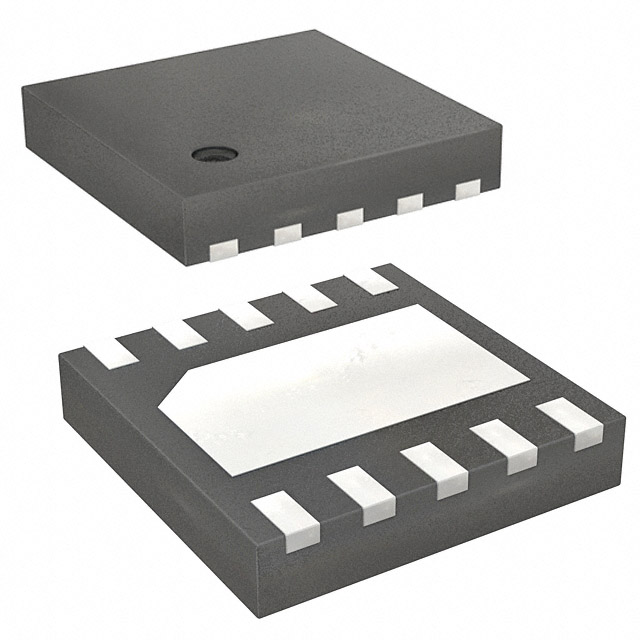

4 Ch 30KV 3.3V Low Voltage & Cap uDFN
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
4 Ch 30KV 3.3V Low Voltage & Cap uDFN
Key Features
• ESD, IEC61000-4-2, ±30kV contact, ±30kV air
• EFT, IEC61000-4-4, 40 A (tp = 5/50 ns)
• Lightning, IEC61000-4-5, 20A (tp=8/20μs)
• Low typical capacitance of 3.5 pF per I/O
• Low leakage current of 1μA (MAX) at 3.3V
Description
AI
NOT RECOMMENDED FOR NEW DESIGNS; WILL EVENTUALLY BE REPLACED BY THE SP3304N SERIES The SP4062 integrates 4 channels of low capacitance diodes with an additional zener diode to protect sensitive I/O pins against lightning induced surge events and ESD. This robust device can safely absorb up to 20A per IEC61000-4-5 (tp=8/20μs) without performance degradation and a minimum ±30kV ESD per IEC61000-4-2 international standard. The low loading capacitance makes the SP4062 ideal for protecting high-speed signal pins.
