R16408 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

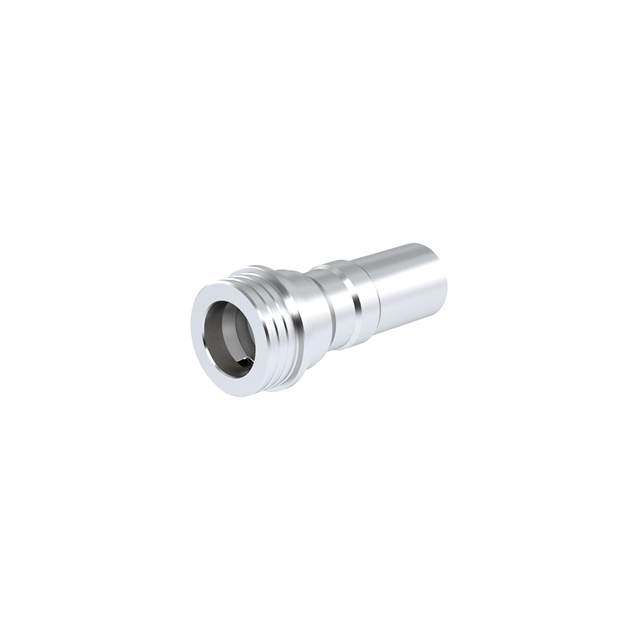

QN / STRAIGHT PLUG FULL CRIMP TY
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Dielectric Material | Body Finish | Connector Style | Shield Termination | Ingress Protection | Mounting Type | Center Contact Material | Fastening Type | Contact Termination | Cable Group | Cable Group | Connector Type | Housing Color | Impedance | Number of Ports | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1400 V | -55 C | 125 °C | Brass | Silver | Polytetrafluoroethylene (PTFE) | White Bronze | QN | Crimp | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | Snap-On | Crimp | 225 | RG-214 | Plug Male Pin | Silver | 50 Ohms | 1 | 6000 MHz |
 Radiall USA, Inc. | 1000 VDC | -55 C | 125 °C | Brass | Silver | Polytetrafluoroethylene (PTFE) | White Bronze | QN | Crimp | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | Snap-On | Crimp | LMR-400 | Plug Male Pin | Silver | 50 Ohms | 1 | 6000 MHz |
