TPS62122 Series

15V, 75mA, 96% efficiency Step-Down Converter

Catalog

15V, 75mA, 96% efficiency Step-Down Converter

Part	Current - Output	Function	Topology	Output Type	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Mounting Type	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching [Max]	Number of Outputs	Output Configuration	Supplier Device Package	Supplied Contents	Board Type	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Contents	Utilized IC / Part	Regulator Topology	Frequency - Switching	Voltage - Output
Texas Instruments TPS62122DRVT	75 mA	Step-Down	Buck	Adjustable	15 V	1.2 V	Surface Mount	5.5 V	2 V	85 C	-40 ¯C	800 kHz	1	Positive	6-WSON (2x2)
Texas Instruments TPS62122DRVR	75 mA	Step-Down	Buck	Adjustable	15 V	1.2 V	Surface Mount	5.5 V	2 V	85 C	-40 ¯C	800 kHz	1	Positive	6-WSON (2x2)

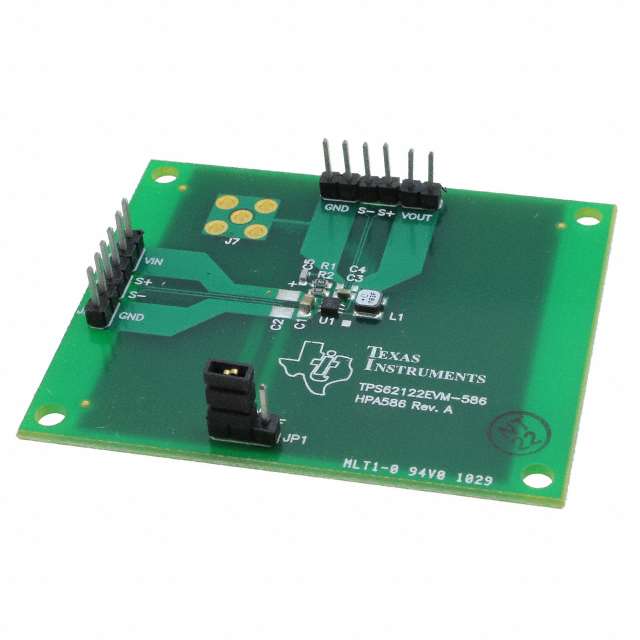

Texas Instruments TPS62122EVM-586	75 mA															Board(s)	Fully Populated	1	1 Non-Isolated Output Non-Isolated	15 V	2 V	DC/DC Step Down	Board(s)	TPS62122	Buck	800 kHz	1.8 V

Catalog

15V, 75mA, 96% efficiency Step-Down Converter

Description

The TPS6212x device is a highly efficient synchronous step-down DC-DC converter optimized for low-power applications. The device supports up to 75-mA output current and allows the use of tiny external inductors and capacitors. The wide operating input voltage range of 2 V to 15 V supports energy harvesting, battery powered and as well 9-V or 12-V line powered applications. With its advanced hysteretic control scheme, the converter provides power save mode operation. At light loads the converter operates in pulse frequency modulation (PFM) mode and transitions automatically in pulse width modulation (PWM) mode at higher load currents. The power save mode maintains high efficiency over the entire load current range. The hysteretic control scheme is optimized for low output ripple voltage in PFM mode in order to reduce output noise to a minimum. The device consumes only 10-µA quiescent current from VIN in PFM mode operation. In shutdown mode, the device is turned off. An open-drain power good output is available in the TPS62120 and indicates once the output voltage is in regulation. The TPS62120 has an additional SGND pin which is connected to GND during shutdown mode. This output can be used to discharge the output capacitor. The TPS6212x operates over an free air temperature range of –40°C to 85°C. The TPS62120 is available in a small 8-pin SOT-23 package and the TPS62122 in a 2 mm × 2 mm 6-pin DFN package. The TPS6212x device is a highly efficient synchronous step-down DC-DC converter optimized for low-power applications. The device supports up to 75-mA output current and allows the use of tiny external inductors and capacitors. The wide operating input voltage range of 2 V to 15 V supports energy harvesting, battery powered and as well 9-V or 12-V line powered applications. With its advanced hysteretic control scheme, the converter provides power save mode operation. At light loads the converter operates in pulse frequency modulation (PFM) mode and transitions automatically in pulse width modulation (PWM) mode at higher load currents. The power save mode maintains high efficiency over the entire load current range. The hysteretic control scheme is optimized for low output ripple voltage in PFM mode in order to reduce output noise to a minimum. The device consumes only 10-µA quiescent current from VIN in PFM mode operation. In shutdown mode, the device is turned off. An open-drain power good output is available in the TPS62120 and indicates once the output voltage is in regulation. The TPS62120 has an additional SGND pin which is connected to GND during shutdown mode. This output can be used to discharge the output capacitor. The TPS6212x operates over an free air temperature range of –40°C to 85°C. The TPS62120 is available in a small 8-pin SOT-23 package and the TPS62122 in a 2 mm × 2 mm 6-pin DFN package.
