CS10M Series
Manufacturer: EXCELSYS / Advanced Energy
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
AC/DC CONVERTER 48V 1000W
| Part | Current - Output 1 | Mounting Type | Voltage - Isolation | Operating Temperature (Max) | Operating Temperature (Min) | Type | Number of Outputs | Standard Number | Voltage - Output 1 | Approval Agency | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Features | Power (Watts) | Applications | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Efficiency | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

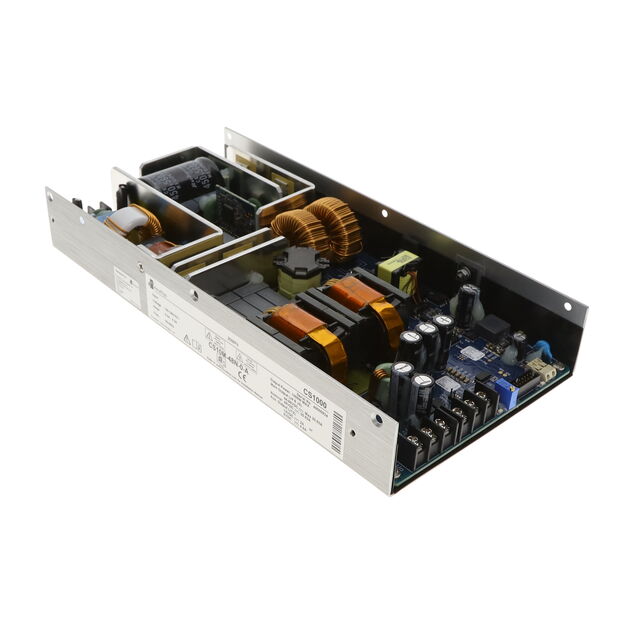

 EXCELSYS / Advanced Energy | 20.8 A | Chassis Mount | 4000 Vpk | 85 °C | -40 °C | Enclosed | 1 | 60601-1 62368-1 | 48 V | CSA EN IEC UL | 85 VAC | 264 V | Adjustable Output PFC PMBus™ Remote Sense Universal Input | 1 kW | ITE (Commercial) Medical | 10.3 in | 1.54 in | 5 in | 95 % | Yes |

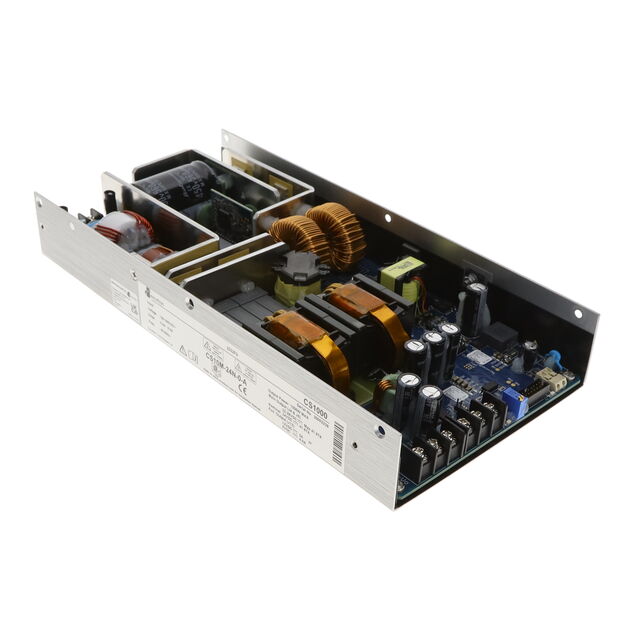

 EXCELSYS / Advanced Energy | 41.6 A | Chassis Mount | 4000 Vpk | 85 °C | -40 °C | Enclosed | 1 | 60601-1 62368-1 | 24 V | CSA EN IEC UL | 85 VAC | 264 V | Adjustable Output PFC PMBus™ Remote Sense Universal Input | 1 kW | ITE (Commercial) Medical | 10.3 in | 1.54 in | 5 in | 94 % | Yes |
