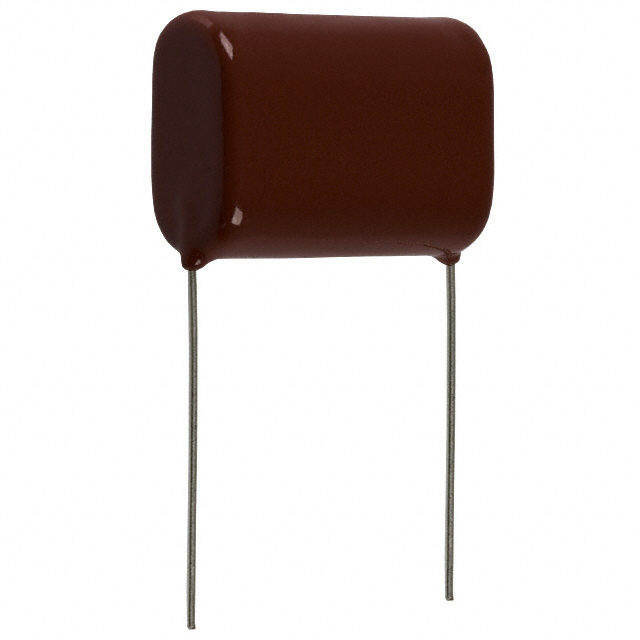

ECQ-E6155 Series

Catalog

CAP FILM 1.5UF 10% 630VDC RADIAL

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Package / Case	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Termination	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Tolerance	Mounting Type
Panasonic Industrial Automation Sales ECQ-E6155KFW	29.7 mm	1.169 in	Polyester Metallized	Radial	1.5 µF	-40 °C	105 ░C	22.5 mm	0.886 in	PC Pins	15.3 mm	0.602 in	31 mm	1.22 in	General Purpose	10 %	Through Hole
Panasonic Industrial Automation Sales ECQ-E6155KFB	29.7 mm	1.169 in	Polyester Metallized	Radial	1.5 µF	-40 °C	105 ░C	22.5 mm	0.886 in	PC Pins	15.3 mm	0.602 in	31 mm	1.22 in	General Purpose	10 %	Through Hole
