725-072 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 72POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Contact Material	Read Out	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish	Card Type	Gender	Number of Positions/Bay/Row	Contact Type
EDAC Inc. 725-072-540-201	2	Polyester Thermoplastic	0.1 "	2.54 mm	Copper Alloy	Dual	2	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	72	Gold	Non Specified - Dual Edge	Female	36	Cantilever

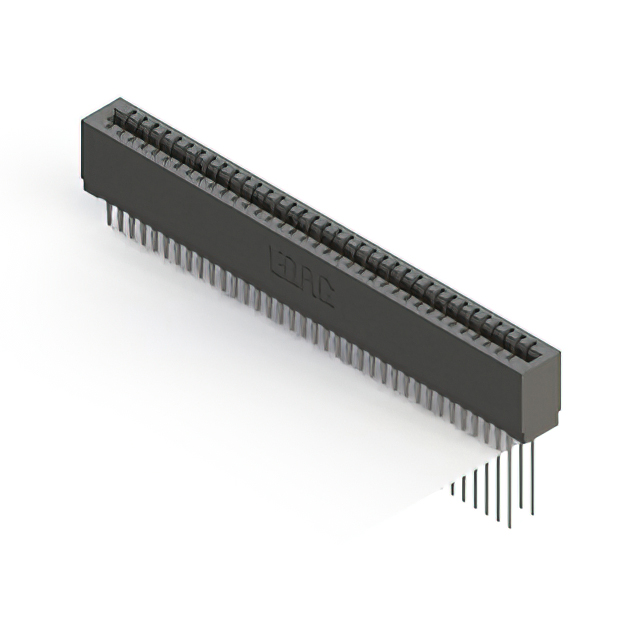

EDAC Inc. 725-072-541-201	2	Polyester Thermoplastic	0.1 "	2.54 mm	Copper Alloy	Dual	2	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	72	Gold	Non Specified - Dual Edge	Female	36	Cantilever
EDAC Inc. 725-072-525-201	2	Polyester Thermoplastic	0.1 "	2.54 mm	Copper Alloy	Dual	2	30 Áin	0.76 Ám	Black	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	72	Gold	Non Specified - Dual Edge	Female	36	Cantilever
EDAC Inc. 725-072-522-201	2	Polyester Thermoplastic	0.1 "	2.54 mm	Copper Alloy	Dual	2	30 Áin	0.76 Ám	Black	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	72	Gold	Non Specified - Dual Edge	Female	36	Cantilever
EDAC Inc. 725-072-545-201	2	Polyester Thermoplastic	0.1 "	2.54 mm	Copper Alloy	Dual	2	30 Áin	0.76 Ám	Black	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	72	Gold	Non Specified - Dual Edge	Female	36	Cantilever

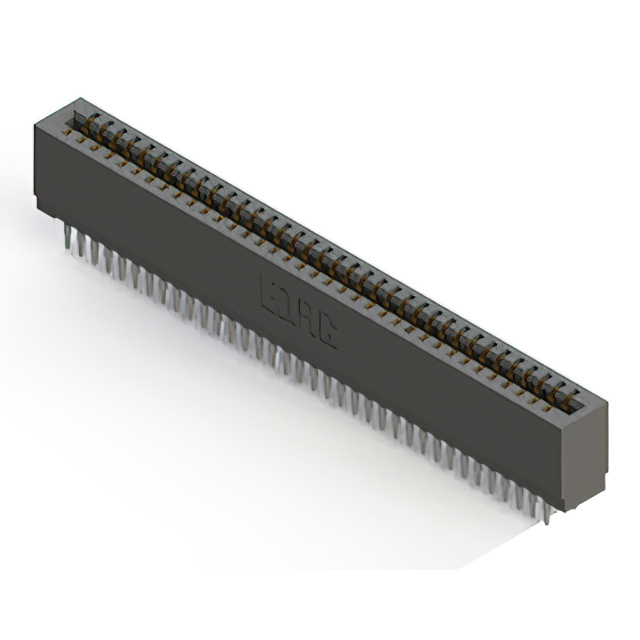

EDAC Inc. 725-072-560-201	2	Polyester Thermoplastic	0.1 "	2.54 mm	Copper Alloy	Dual	2	30 Áin	0.76 Ám	Black	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	72	Gold	Non Specified - Dual Edge	Female	36	Cantilever Make Before Break
