1757827 Series

Catalog

CONN D-SUB PLUG 37POS VERT SLDR

Part	Contact Finish	Current Rating (Amps)	Number of Positions	Color	Flange Feature	Contact Type	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Shell Material, Finish	Connector Style	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout

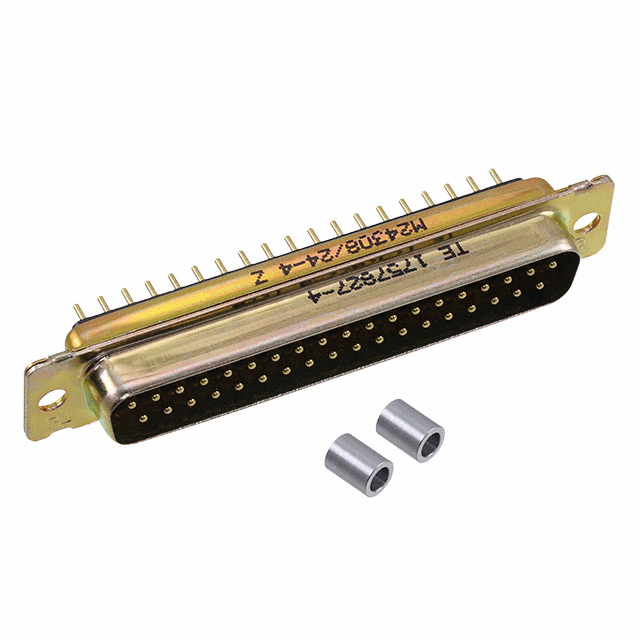

TE Connectivity Aerospace, Defense and Marine 1757827-4	Gold	5 A	37	Black	Housing/Shell (Unthreaded)	Signal	4 (DC C)	10 Áin	0.25 Ám	2	Steel Yellow Chromate Plated Zinc	D-Sub	Solder	-55 °C	125 °C	Male Pins Plug	Brass	Through Hole
TE Connectivity Aerospace, Defense and Marine 1757827-1	Gold	5 A	9	Black	Housing/Shell (Unthreaded)	Signal		10 Áin	0.25 Ám	2	Steel Yellow Chromate Plated Zinc	D-Sub	Solder	-55 °C	125 °C	Male Pins Plug	Brass	Through Hole	DE E	1
TE Connectivity Aerospace, Defense and Marine 1757827-3	Gold	5 A		Black	Housing/Shell (Unthreaded)	Signal		10 Áin	0.25 Ám	2	Steel Yellow Chromate Plated Zinc	D-Sub	Solder	-55 °C	125 °C	Male Pins Plug	Brass	Through Hole	B DB	3
TE Connectivity Aerospace, Defense and Marine 1757827-2	Gold	5 A	15	Black	Housing/Shell (Unthreaded)	Signal		10 Áin	0.25 Ám	2	Steel Yellow Chromate Plated Zinc	D-Sub	Solder	-55 °C	125 °C	Male Pins Plug	Brass	Through Hole			2

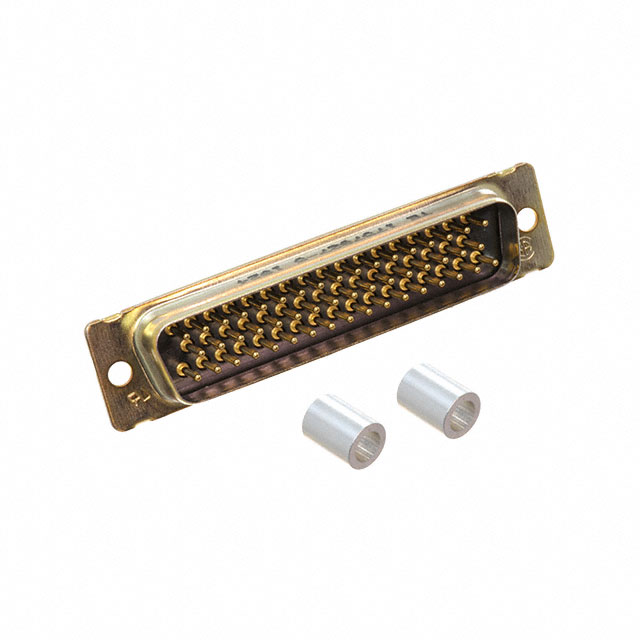

TE Connectivity Aerospace, Defense and Marine 1757827-5	Gold	5 A	50	Black	Housing/Shell (Unthreaded)	Signal		10 Áin	0.25 Ám	3	Steel Yellow Chromate Plated Zinc	D-Sub	Solder	-55 °C	125 °C	Male Pins Plug	Brass	Through Hole			5
