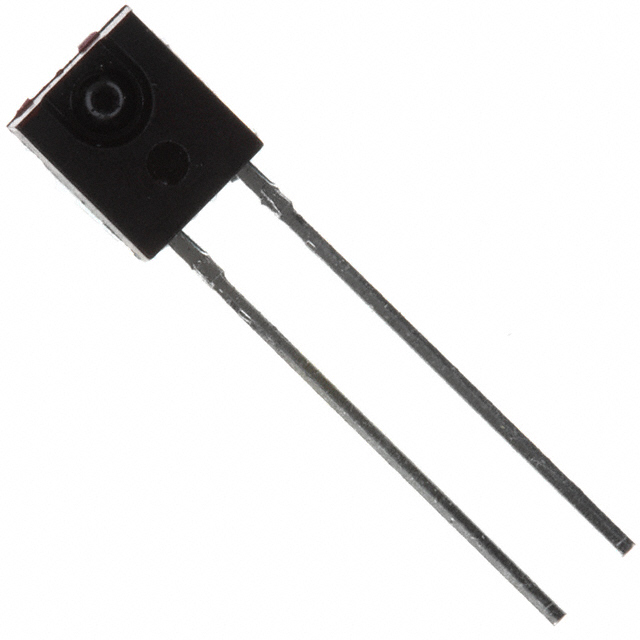

QSE122 Series

Plastic Silicon Infrared Phototransistor

Catalog

Plastic Silicon Infrared Phototransistor

Part	Wavelength	Package / Case	Power - Max [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Id) (Max) [Max]	Orientation	Viewing Angle
ON Semiconductor QSE122	880 nm	Radial Side View	100 mW	Through Hole	30 V	100 °C	-40 °C	100 nA	Side View	50 °

Plastic Silicon Infrared Phototransistor

• NPN silicon phototransistor

• Package type: sidelooker

• Medium wide reception angle, 50< °

• Package material and color: black epoxy

• Matched emitter: QEE113

• Daylight filter

• High sensitivity

The QSE122 is a silicon phototransistor encapsulated in a wide angle, infrared transparent, black plastic sidelooker package.
