MS9225 Series

Catalog

FAN AXIAL 92X25MM 24VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Voltage - Rated	Bearing Type	RPM	Weight	Weight	Fan Type	Width [y]	Noise	Static Pressure	Static Pressure	Air Flow	Air Flow	Features	Termination	Size / Dimension [y]	Size / Dimension [x]	Ingress Protection
Mechatronics Fan Group MS9225H24B-FSR	Plastic	0.2 A	Plastic	24 VDC	Ball	4500 RPM	102.06 g	0.225 lb	Tubeaxial	25 mm	49 dB	84.7 Pa	0.34 in H2O	2.06 m³/min	73.6 CFM	Auto Restart	2 Wire Leads	92 mm	92 mm
Mechatronics Fan Group MS9225H24B-FSR-2EM	Plastic	0.2 A	Plastic	24 VDC	Ball	4500 RPM	102.06 g	0.225 lb	Tubeaxial	25 mm	49 dB	84.7 Pa	0.34 in H2O	2.06 m³/min	73.6 CFM	Auto Restart	2 Wire Leads	92 mm	92 mm	IP68 - Dust Tight Waterproof

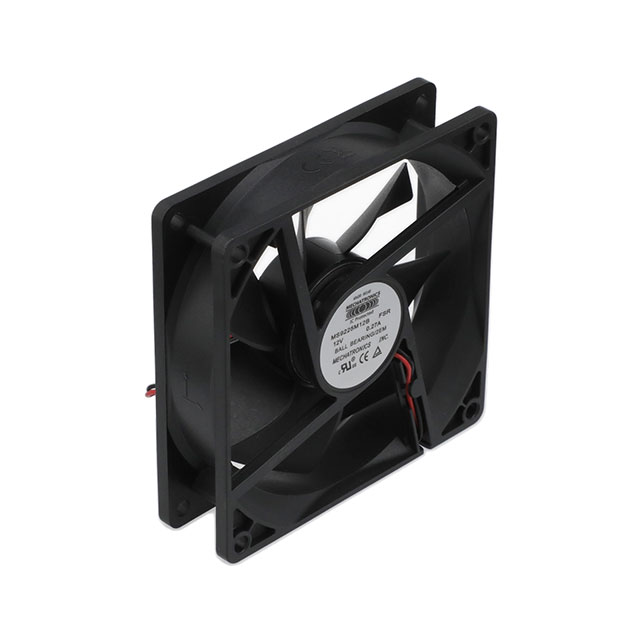

Mechatronics Fan Group MS9225M12B-FSR-2EM	Plastic	270 mA	Plastic	12 VDC	Ball	3500 RPM	102.06 g	0.225 lb	Tubeaxial	25 mm	43 dB	55 Pa	0.22 in H2O	1.63 mł/min	58.1 CFM	Auto Restart	2 Wire Leads	92 mm	92 mm	IP68 - Dust Tight Waterproof
Mechatronics Fan Group MS9225H48B-FSR	Plastic	110 mA	Plastic	48 VDC	Ball	4500 RPM	102.06 g	0.225 lb	Tubeaxial	25 mm	49 dB	84.7 Pa	0.34 in H2O	2.06 m³/min	73.6 CFM	Auto Restart	2 Wire Leads	92 mm	92 mm
Mechatronics Fan Group MS9225H48B-FSR-2EM	Plastic	110 mA	Plastic	48 VDC	Ball	4500 RPM	102.06 g	0.225 lb	Tubeaxial	25 mm	49 dB	84.7 Pa	0.34 in H2O	2.06 m³/min	73.6 CFM	Auto Restart	2 Wire Leads	92 mm	92 mm	IP68 - Dust Tight Waterproof
