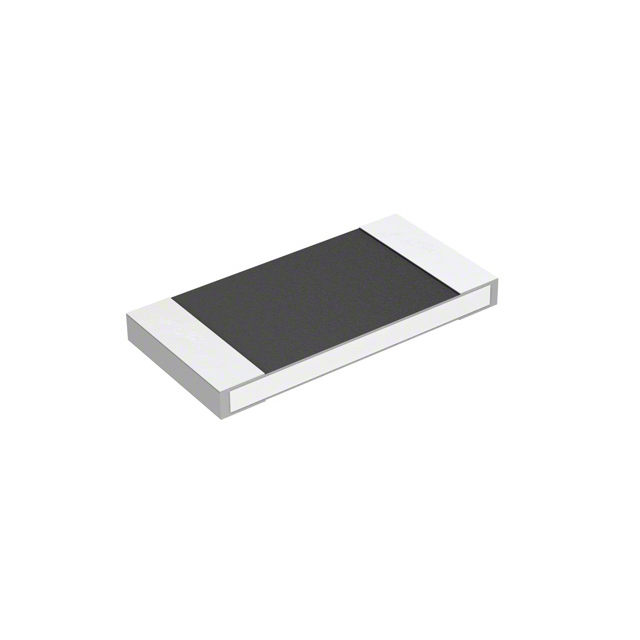

CRA2512 Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES 0.004 OHM 1% 3W 2512
| Part | Tolerance | Power (Watts) | Supplier Device Package | Ratings | Features | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient | Composition | Resistance | Number of Terminations [custom] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1 % | 3 W | 2512 | AEC-Q200 | Automotive AEC-Q200 Current Sense Moisture Resistant | 2512 (6432 Metric) | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 170 °C | -55 C | 50 ppm/░C | Metal Element | 4 mOhms | 2 | 0.035 in | 0.9 mm | |
Bourns Inc. | 1 % | 3 W | 2512 | AEC-Q200 | Automotive AEC-Q200 Current Sense Moisture Resistant | 2512 2512 (6432 Metric) | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 170 °C | -55 C | 50 ppm/░C | Metal Element | 2 | 0.035 in | 0.9 mm | 6332 Metric | |
Bourns Inc. | 5 % | 3 W | 2512 | AEC-Q200 | Automotive AEC-Q200 Current Sense Moisture Resistant | 2512 2512 (6432 Metric) | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 170 °C | -55 C | 50 ppm/░C | Metal Element | 0.03 Ohms | 2 | 0.035 in | 0.9 mm | 6332 Metric |
Bourns Inc. | 1 % | 3 W | 2512 | AEC-Q200 | Automotive AEC-Q200 Current Sense Moisture Resistant | 2512 2512 (6432 Metric) | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 170 °C | -55 C | 50 ppm/░C | Metal Element | 0.08 Ohms | 2 | 0.035 in | 0.9 mm | 6332 Metric |
Bourns Inc. | 5 % | 3 W | 2512 | AEC-Q200 | Automotive AEC-Q200 Current Sense Moisture Resistant | 2512 2512 (6432 Metric) | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 170 °C | -55 C | 50 ppm/░C | Metal Element | 0.07 Ohms | 2 | 0.035 in | 0.9 mm | 6332 Metric |
Bourns Inc. | 5 % | 3 W | 2512 | AEC-Q200 | Automotive AEC-Q200 Current Sense Moisture Resistant | 2512 (6432 Metric) | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 170 °C | -55 C | 50 ppm/░C | Metal Element | 85 mOhms | 2 | 0.035 in | 0.9 mm | |
Bourns Inc. | 1 % | 3 W | 2512 | AEC-Q200 | Automotive AEC-Q200 Current Sense Moisture Resistant | 2512 2512 (6432 Metric) | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 170 °C | -55 C | 50 ppm/░C | Metal Element | 0.05 Ohms | 2 | 0.035 in | 0.9 mm | 6332 Metric |
 Bourns Inc. | 1 % | 3 W | 2512 | AEC-Q200 | Automotive AEC-Q200 Current Sense Moisture Resistant | 2512 (6432 Metric) | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 170 °C | -55 C | 50 ppm/░C | Metal Element | 90 mOhms | 2 | 0.035 in | 0.9 mm | |
Bourns Inc. | 1 % | 3 W | 2512 | AEC-Q200 | Automotive AEC-Q200 Current Sense Moisture Resistant | 2512 2512 (6432 Metric) | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 170 °C | -55 C | 50 ppm/░C | Metal Element | 0.03 Ohms | 2 | 0.035 in | 0.9 mm | 6332 Metric |
Bourns Inc. | 1 % | 3 W | 2512 | AEC-Q200 | Automotive AEC-Q200 Current Sense Moisture Resistant | 2512 2512 (6432 Metric) | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 170 °C | -55 C | 50 ppm/░C | Metal Element | 0.06 Ohms | 2 | 0.035 in | 0.9 mm | 6332 Metric |
