TC-1A Series

Catalog

SWITCH TOGGLE SPST 6A 125V

Part	Electrical Life (Cycles)	Voltage Rating - AC	Termination Style	Illumination	Current Rating	Actuator Type	Operating Temperature (Max)	Operating Temperature (Min)	Switch Function	Actuator Length	Panel Cutout Diameter	Panel Cutout Shape	Mounting Type	Voltage Rating - DC	Circuit	Bushing Thread Pitch	Bushing Thread	Bushing Thread Diameter
Switch Components TC-1A-DC-6-1	6000 Cycles	125 V	Screw Terminal	Non-Illuminated	6 A 6 A	Ball Tip	85 °C	-20 °C	On-Off	9 mm	12.2 mm	Circular	Panel Mount	12 V	SPST	0.75 mm	M12 x 0.75	12 mm

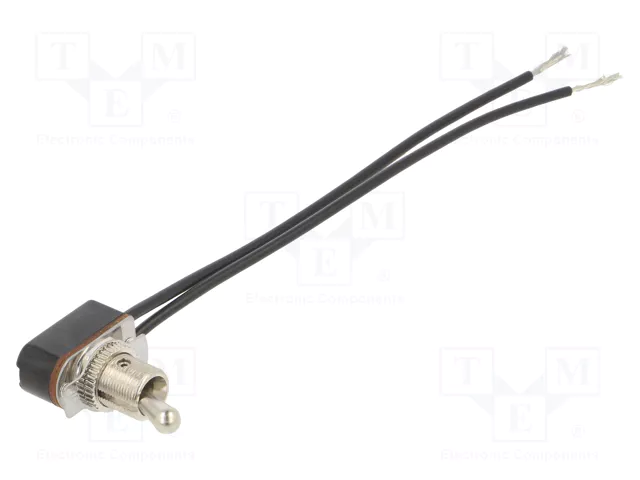

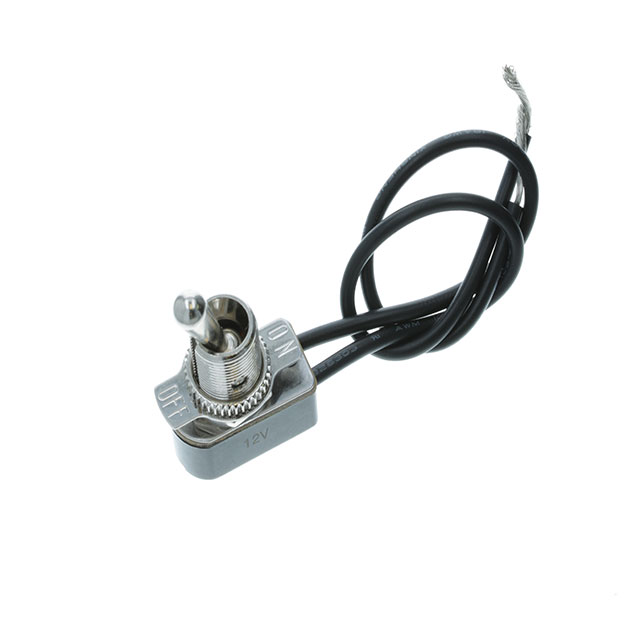

Switch Components TC-1A-DC-W-2	6000 Cycles		Wire Leads	Non-Illuminated	6 A	Standard Round	85 °C	-20 °C	On-Off	11.1 mm	12.2 mm	Circular	Panel Mount	12 V	SPST	0.75 mm	M12 x 0.75	12 mm
Switch Components TC-1A-AC-6-1		125 V	Screw Terminal	Non-Illuminated	6 A	Ball Tip			On-Off	9 mm	12.2 mm	Circular	Panel Mount		SPST	0.75 mm	M12 x 0.75	12 mm

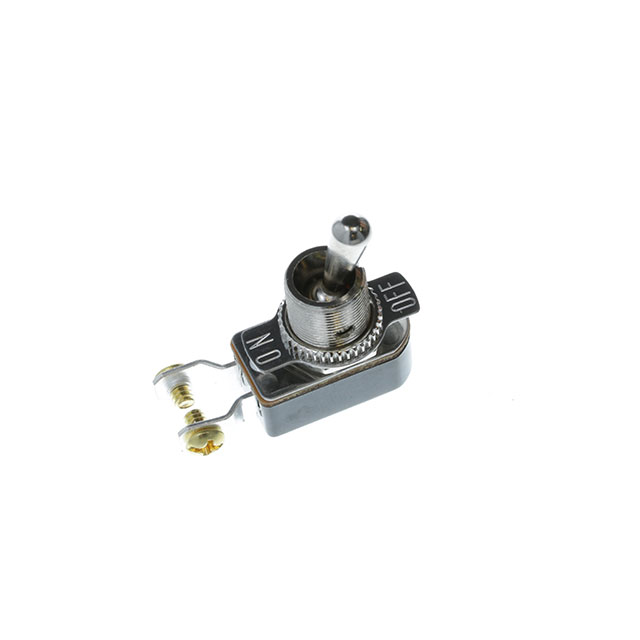

Switch Components TC-1A-AC-6-2		125 V	Screw Terminal	Non-Illuminated	6 A	Standard Round	85 °C	-20 °C	On-Off	11.1 mm	12.2 mm	Circular	Panel Mount		SPST	0.75 mm	M12 x 0.75	12 mm
Switch Components TC-1A-DC-6-2	6000 Cycles	125 V	Screw Terminal	Non-Illuminated	6 A 6 A	Standard Round	85 °C	-20 °C	On-Off	11.1 mm	12.2 mm	Circular	Panel Mount	12 V	SPST	0.75 mm	M12 x 0.75	12 mm
