629W17W Series
Manufacturer: EDAC Inc.
Beta
⌘K

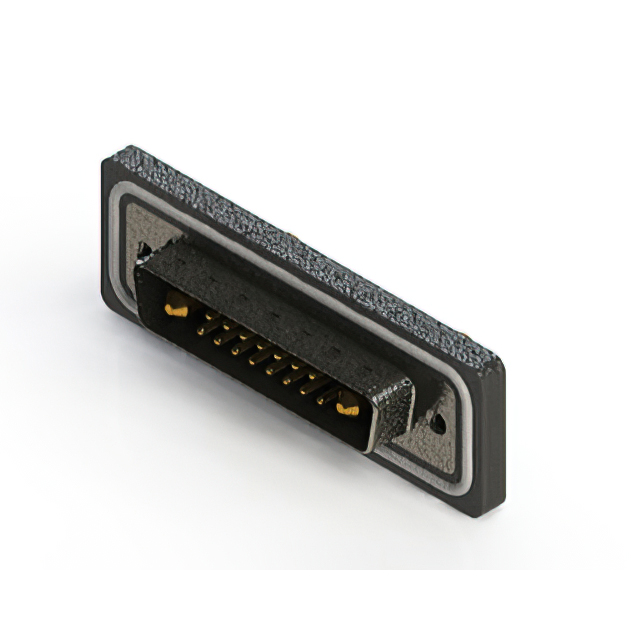

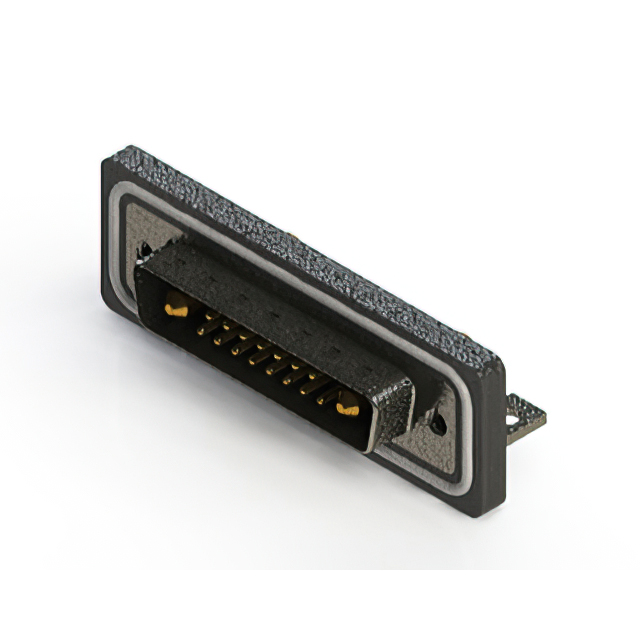

CONN D-SUB PLUG 17POS R/A SLDR
| Part | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Contact Finish | Material Flammability Rating | Shell Material, Finish | Connector Type | Contact Type | Mounting Type | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Features | Contact Finish Thickness | Contact Finish Thickness | Ingress Protection | Flange Feature | Flange Feature | Connector Style | Number of Positions | Current Rating (Amps) | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Gold | UL94 V-0 | Nickel Plated Steel | Plug Male Pins | Signal and Power | Panel Mount Right Angle Through Hole | Solder | B DB | 17W2 | 3 | 2 | Board Lock Grounding Indents Mounting Brackets Shielded | 0.38 µm | 15 µin | IP67 - Dust Tight Waterproof | Housing/Shell | 4-40 | Combo D-Sub | 17 | 5 A 40 A | ||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Gold | UL94 V-0 | Nickel Plated Steel | Plug Male Pins | Signal and Power | Right Angle Through Hole | Solder | B DB | 17W2 | 3 | 2 | Grounding Indents Mounting Brackets Shielded | 0.76 Ám | 30 Áin | IP67 - Dust Tight Waterproof | Housing/Shell (M3) | Combo D-Sub | 17 | 10A 5A | |||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Gold | UL94 V-0 | Nickel Plated Steel | Plug Male Pins | Signal and Power | Panel Mount Right Angle Through Hole | Solder | B DB | 17W2 | 3 | 2 | Grounding Indents Mounting Brackets Shielded | IP67 - Dust Tight Waterproof | Housing/Shell | 4-40 | Combo D-Sub | 17 | 10A 5A | Flash | |||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Gold | UL94 V-0 | Nickel Plated Steel | Plug Male Pins | Signal and Power | Right Angle Through Hole | Solder | B DB | 17W2 | 3 | 2 | Grounding Indents Mounting Brackets Shielded | 0.76 Ám | 30 Áin | IP67 - Dust Tight Waterproof | Housing/Shell (M3) | Combo D-Sub | 17 | 5 A 30 A | |||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Gold | UL94 V-0 | Nickel Plated Steel | Plug Male Pins | Signal and Power | Panel Mount Right Angle Through Hole | Solder | B DB | 17W2 | 3 | 2 | Grounding Indents Mounting Brackets Shielded | 0.76 Ám | 30 Áin | IP67 - Dust Tight Waterproof | Housing/Shell | 4-40 | Combo D-Sub | 17 | 10A 5A | ||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Gold | UL94 V-0 | Nickel Plated Steel | Plug Male Pins | Signal and Power | Panel Mount Right Angle Through Hole | Solder | B DB | 17W2 | 3 | 2 | Grounding Indents Shielded | 0.76 Ám | 30 Áin | IP67 - Dust Tight Waterproof | Housing/Shell | 4-40 | Combo D-Sub | 17 | 5 A 40 A | ||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Gold | UL94 V-0 | Nickel Plated Steel | Plug Male Pins | Signal and Power | Panel Mount Right Angle Through Hole | Solder | B DB | 17W2 | 3 | 2 | Grounding Indents Mounting Brackets Shielded | 0.76 Ám | 30 Áin | IP67 - Dust Tight Waterproof | Housing/Shell | 4-40 | Combo D-Sub | 17 | 5 A 30 A | ||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Gold | UL94 V-0 | Nickel Plated Steel | Plug Male Pins | Signal and Power | Panel Mount Right Angle Through Hole | Solder | B DB | 17W2 | 3 | 2 | Grounding Indents Mounting Brackets Shielded | 0.127 µm | 5 µin | IP67 - Dust Tight Waterproof | Housing/Shell | 4-40 | Combo D-Sub | 17 | 5 A 30 A | ||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Gold | UL94 V-0 | Nickel Plated Steel | Plug Male Pins | Signal and Power | Right Angle Through Hole | Solder | B DB | 17W2 | 3 | 2 | Grounding Indents Mounting Brackets Shielded | 0.127 µm | 5 µin | IP67 - Dust Tight Waterproof | Housing/Shell (M3) | Combo D-Sub | 17 | 10A 5A | |||
 EDAC Inc. | Black | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Gold | UL94 V-0 | Nickel Plated Steel | Plug Male Pins | Signal and Power | Right Angle Through Hole | Solder | B DB | 17W2 | 3 | 2 | Grounding Indents Mounting Brackets Shielded | 0.38 µm | 15 µin | IP67 - Dust Tight Waterproof | Housing/Shell (M3) | Combo D-Sub | 17 | 5 A 40 A |
