R16132 Series

Catalog

N / STRAIGHT BULKHEAD JACK PANEL

Part	Mating Cycles	Voltage Rating	Body Material	Body Finish	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Insertion Loss	Housing Color	Mounting Type	Impedance	Mounting Feature	Connector Type	Connector Style	Cable Group	Cable Group	Fastening Type	Number of Ports	Center Contact Material	Contact Termination	Frequency - Max [Max]	Shield Termination	Ingress Protection
Radiall USA, Inc. R161329000W	500	850 V	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Gold	0.15 dB	Silver	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	Female Socket Jack	N Type	RG-58	141	Threaded	1	Beryllium Copper	Crimp	11 GHz	Crimp	IP67 - Dust Tight Waterproof
Radiall USA, Inc. R161321000W	500	250 V	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Gold	0.15 dB	Silver	Panel Mount	50 Ohms	Bulkhead - Rear Side Nut	Female Socket Jack	N Type	187 188 316 RG-179		Threaded	1	Beryllium Copper	Crimp	11 GHz	Crimp	IP67 - Dust Tight Waterproof

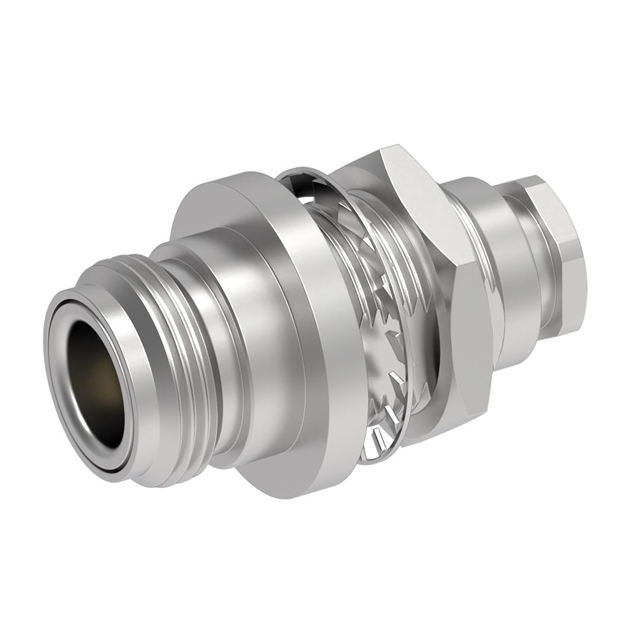

Radiall USA, Inc. R161321000	500	250 V	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Gold	0.15 dB	Silver	Panel Mount	50 Ohms	Bulkhead - Rear Side Nut	Female Socket Jack	N Type	176DS 316 RG-174		Threaded	1	Beryllium Copper	Crimp	11 GHz	Crimp	IP67 - Dust Tight Waterproof
Radiall USA, Inc. R161329200W	500	850 V	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Gold	0.15 dB	Silver	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	Female Socket Jack	N Type	223 400 RG-142		Threaded	1	Beryllium Copper	Crimp	11 GHz	Crimp	IP67 - Dust Tight Waterproof

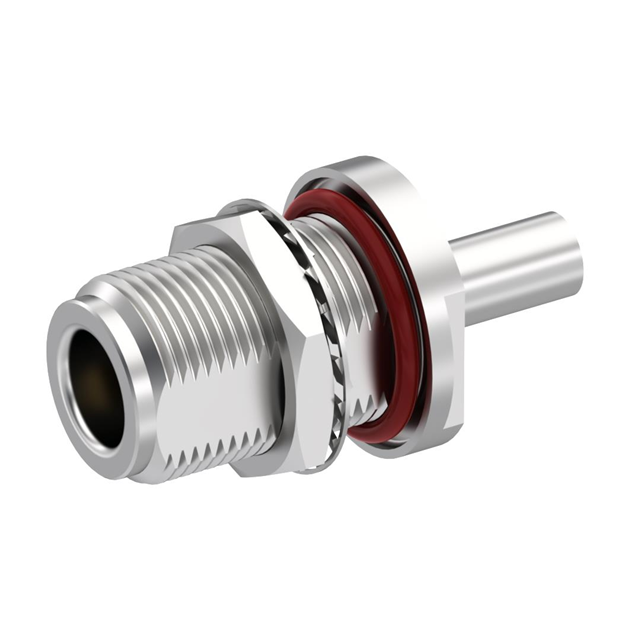

Radiall USA, Inc. R161329000	500	850 V	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Gold	0.15 dB	Silver	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	Female Socket Jack	N Type	RG-58	141	Threaded	1	Beryllium Copper	Crimp	11 GHz	Crimp	IP67 - Dust Tight Waterproof
Radiall USA, Inc. R161322000W	500	250 V	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Gold	0.15 dB	Silver	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	Female Socket Jack	N Type	187 188 316 316 Double Braid RG-179		Threaded	1	Beryllium Copper	Solder	11 GHz	Clamp	IP67 - Dust Tight Waterproof
Radiall USA, Inc. R161325000W	500	850 V	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Gold	0.15 dB	Silver	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	Female Socket Jack	N Type	141 142 223 400 RG-58		Threaded	1	Beryllium Copper	Solder	11 GHz	Clamp	IP67 - Dust Tight Waterproof

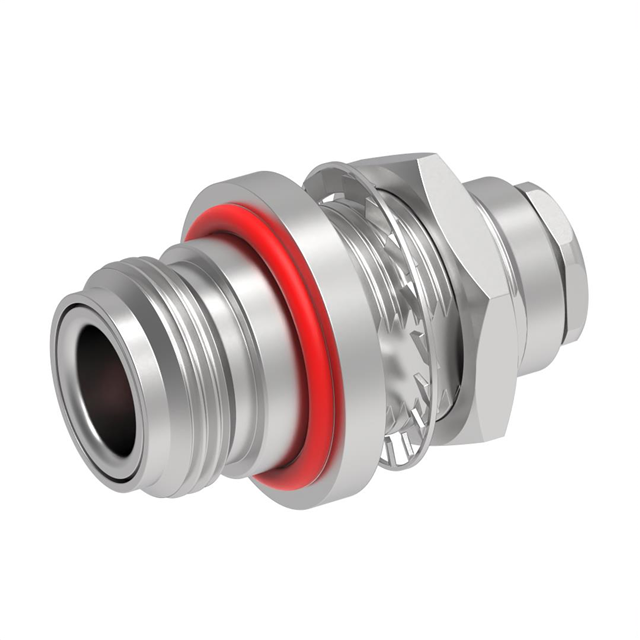

Radiall USA, Inc. R161323000	500	335 V	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	105 ░C	-55 C	Gold	0.15 dB	Silver	Panel Mount	50 Ohms	Bulkhead - Rear Side Nut	Female Socket Jack	N Type			Threaded	1	Beryllium Copper	Solder	11 GHz	Clamp	IP67 - Dust Tight Waterproof
Radiall USA, Inc. R161329200	500	850 V	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Gold	0.15 dB	Silver	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	Female Socket Jack	N Type	223 400 RG-142		Threaded	1	Beryllium Copper	Crimp	11 GHz	Crimp	IP67 - Dust Tight Waterproof

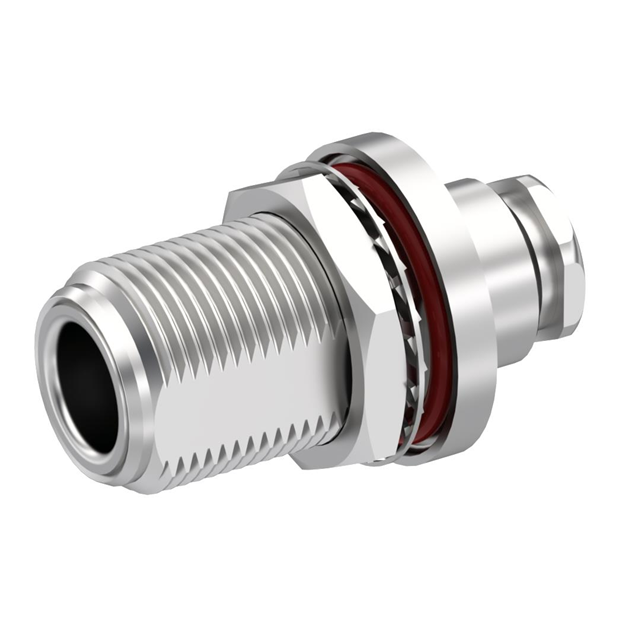

Radiall USA, Inc. R161325000	500	850 V	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Gold	0.15 dB	Silver	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	Female Socket Jack	N Type	141 142 223 400 RG-58		Threaded	1	Beryllium Copper	Solder	11 GHz	Clamp	IP67 - Dust Tight Waterproof
