ZSS-115 Series

Catalog

CONN HEADER VERT 30POS 2.54MM

...

Part	Fastening Type	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Insulation Height	Insulation Height	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Material Flammability Rating	Insulation Material	Style	Connector Type	Contact Type	Contact Shape	Termination	Contact Length - Mating	Contact Length - Mating	Features	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions	Number of Rows	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Length - Post [x]	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

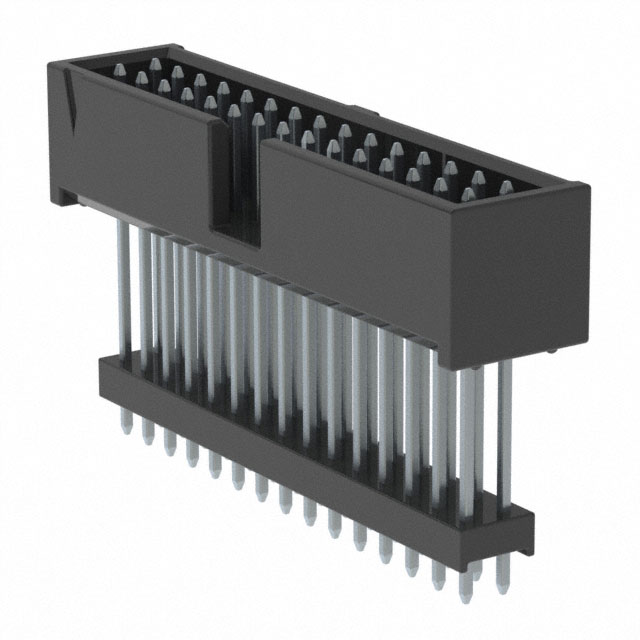

Samtec Inc. ZSS-115-04-T-D-800	Push-Pull	0.93 in	23.62 mm	3 A	0.8 in	20.32 mm	Shrouded - 4 Wall	2.54 mm	0.1 in	Black	UL94 V-0	Polyester Glass Filled	Board to Board Cable	Elevated Header	Male Pin	Square	Solder	6.35 mm	0.25 in	Keying Slot	Phosphor Bronze	105 ░C	-55 °C	0.1 in	2.54 mm	Through Hole	30	2	All	0.13 in	3.3 mm	Tin

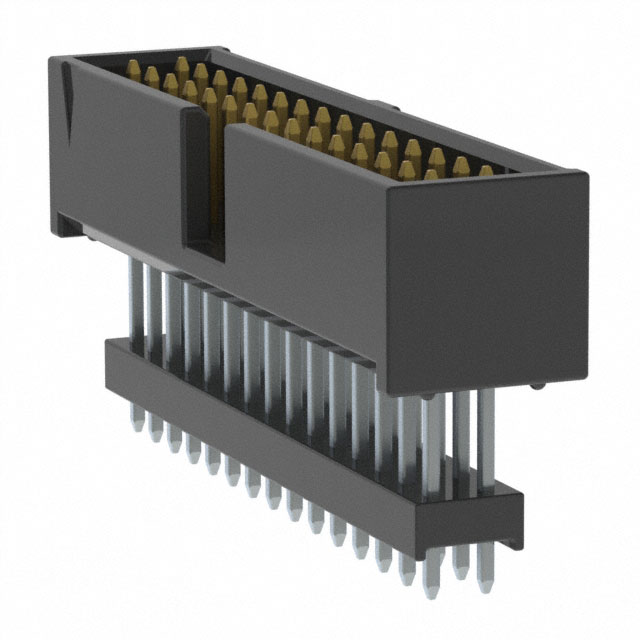

Samtec Inc. ZSS-115-02-S-D-640

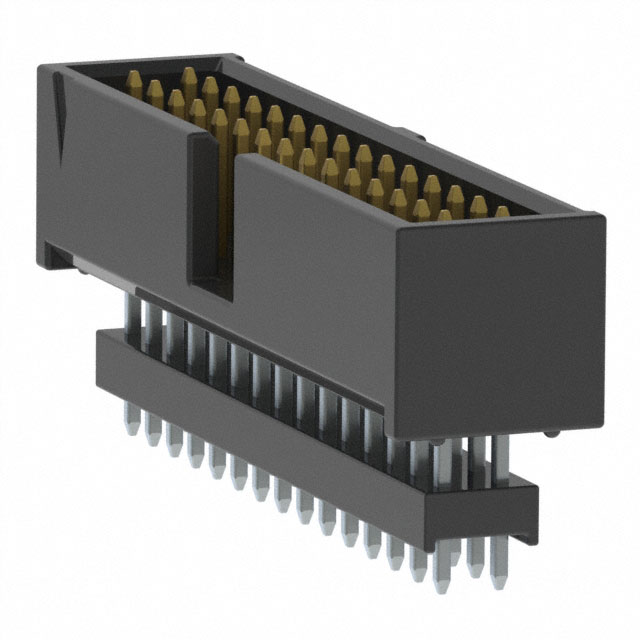

Samtec Inc. ZSS-115-01-S-D-515

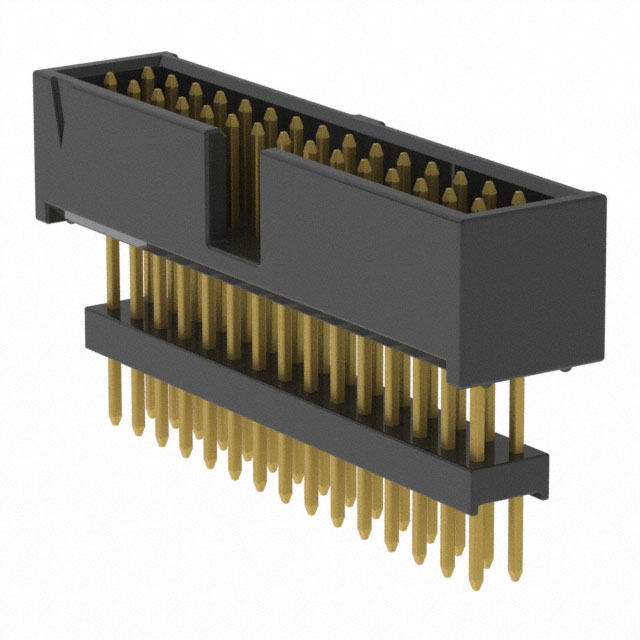

Samtec Inc. ZSS-115-03-G-D-650

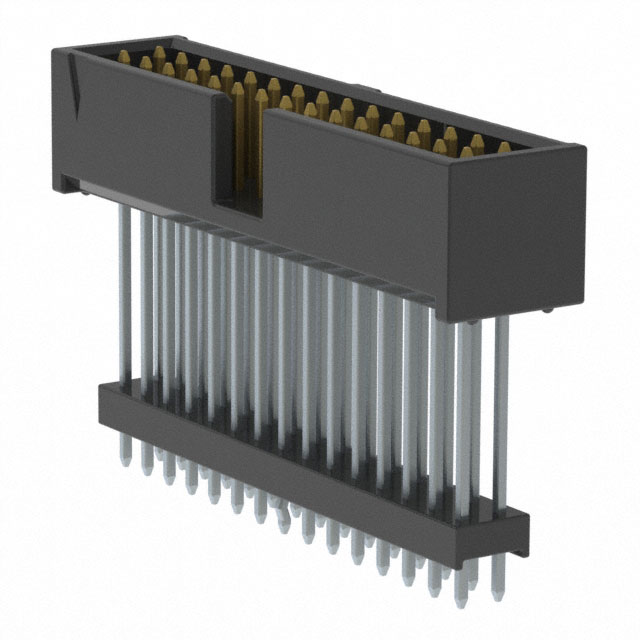

Samtec Inc. ZSS-115-05-L-D-927-LL

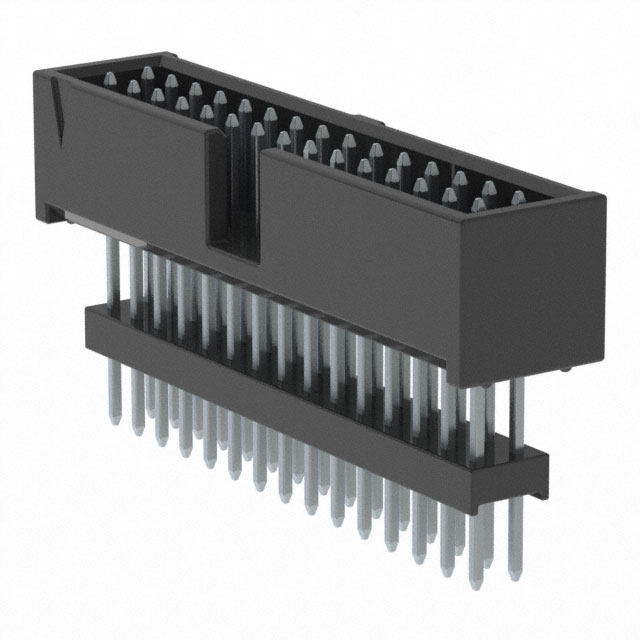

Samtec Inc. ZSS-115-03-T-D-664

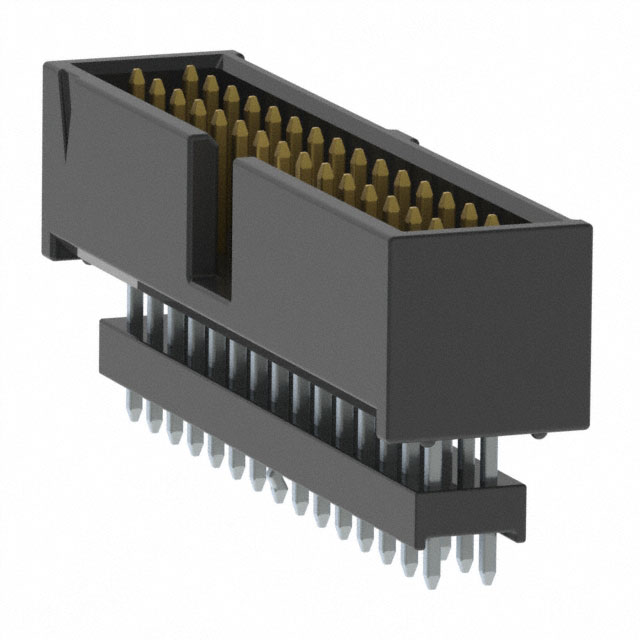

Samtec Inc. ZSS-115-01-L-D-504-LL	Push-Pull			3 A	0.504 in	12.8 mm	Shrouded - 4 Wall	2.54 mm	0.1 in	Black	UL94 V-0	Polyester Glass Filled	Board to Board Cable	Elevated Header	Male Pin	Square	Kinked Pin Solder	6.35 mm	0.25 in	Keying Slot	Phosphor Bronze	125 °C	-55 °C	0.1 in	2.54 mm	Through Hole	30	2	All		3.2 mm	Tin	0.126 in	0.63 "	16 mm	Gold	10 çin	0.25 çm
Samtec Inc. ZSS-115-05-S-D-865

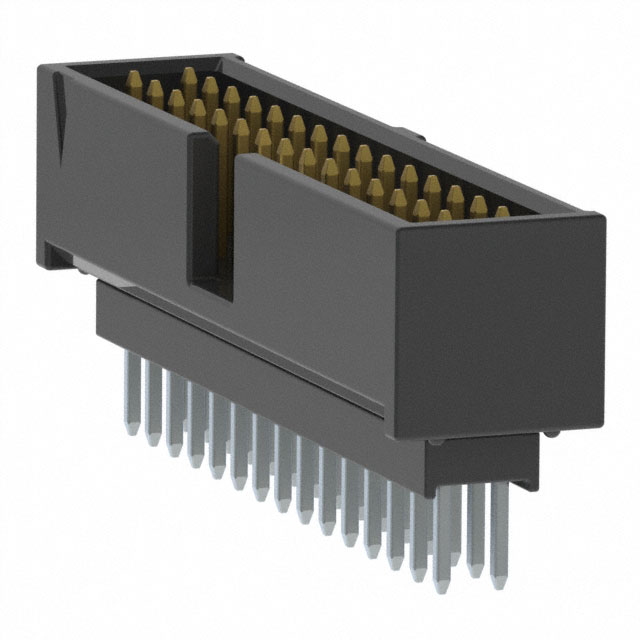

Samtec Inc. ZSS-115-01-S-D-450	Push-Pull			3 A	0.45 in	11.43 mm	Shrouded - 4 Wall	2.54 mm	0.1 in	Black	UL94 V-0	Polyester Glass Filled	Board to Board Cable	Elevated Header	Male Pin	Square	Solder	6.35 mm	0.25 in	Keying Slot	Phosphor Bronze	125 °C	-55 °C	0.1 in	2.54 mm	Through Hole	30	2	All	0.18 in	4.57 mm	Tin		0.63 "	16 mm	Gold	30 Áin	0.76 Ám
Samtec Inc. ZSS-115-07-L-D-1000	Push-Pull	1.23 in	31.24 mm	3 A	1 in	25.4 mm	Shrouded - 4 Wall	2.54 mm	0.1 in	Black	UL94 V-0	Polyester Glass Filled	Board to Board Cable	Elevated Header	Male Pin	Square	Solder	6.35 mm	0.25 in	Keying Slot	Phosphor Bronze	125 °C	-55 °C	0.1 in	2.54 mm	Through Hole	30	2	All	0.23 in	5.84 mm	Tin				Gold	10 çin	0.25 çm
