cc45 Series

Catalog

CAPACITOR: CERAMIC; 100PF; 1KV; ±5%; THT; 5MM; BODY DIM: Ø6.5X5MM

Part	Temperature Coefficient	Lead Style	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Tolerance	Lead Spacing	Lead Spacing	Mounting Type	Voltage - Rated	Voltage - Rated	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]
TDK Corporation CC45SL3AD101JYVNA	SL	Formed Leads - Kinked	100 pF	-25 °C	125 °C	General Purpose	5 %	0.197 "	5 mm	Through Hole	1 kV	1000 V	Disc Radial	0.413 "	10.5 mm	High Voltage Low Dissipation Factor
TDK Corporation CC45SL3AD470JYNNA	SL	Formed Leads - Kinked	47 pF	-25 °C	125 °C	General Purpose	5 %	0.197 "	5 mm	Through Hole	1 kV	1000 V	Disc Radial	0.374 "	9.5 mm	High Voltage Low Dissipation Factor	5.5 mm	0.217 in

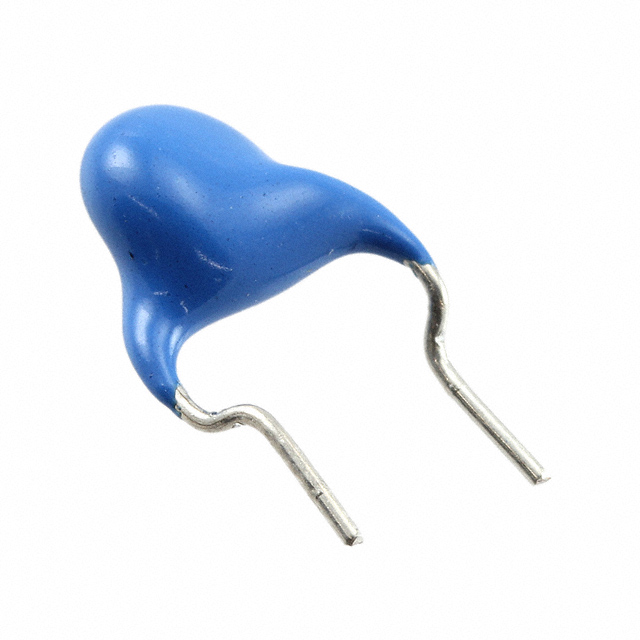

TDK Corporation CC45SL3JD220JYNNA	SL	Formed Leads - Kinked	22 pF	-25 °C	125 °C	General Purpose	5 %	0.295 in	7.5 mm	Through Hole	6 kV	6000 V	Disc Radial		0.453 in	High Voltage Low Dissipation Factor	7.5 mm	0.295 in	11.5 mm
