9729 Series
Manufacturer: Belden Inc.
Beta
⌘K

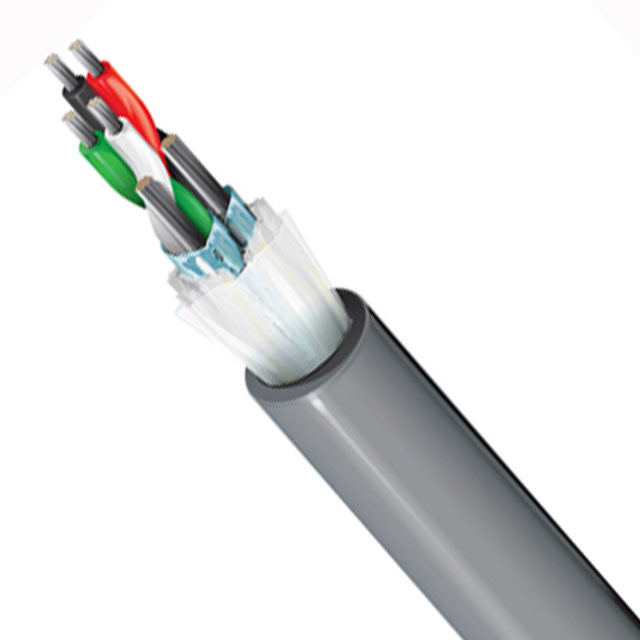

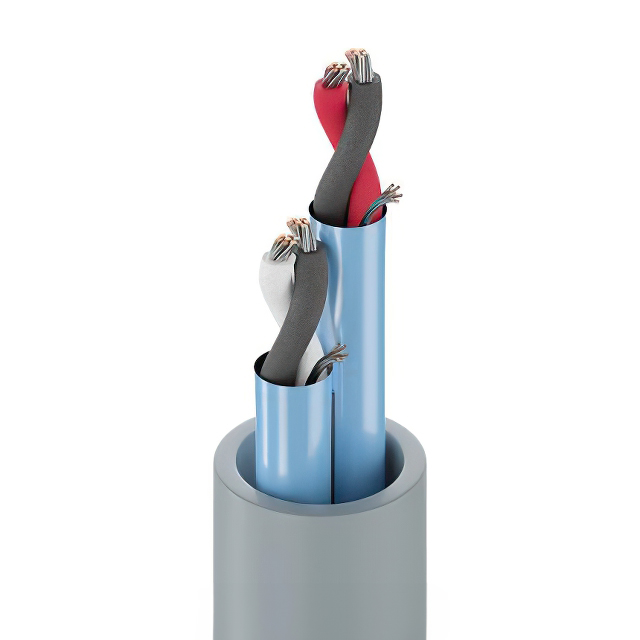

CABLE 4CON 24AWG CHROM SHLD
| Part | Shield Coverage | Shield Material | Cable Type | Usage | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Length | Length | Ratings | Jacket (Insulation) Material | Number of Conductors | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Voltage | Wire Gauge | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Multi-Conductor | Computer | Drain Wire | 1.219 mm | 0.048 in | Copper Tinned | 152.4 m | 500 ft | UL Style 2919 | Poly-Vinyl Chloride (PVC) | 4 | Foam Polyethylene (FPE) | 6.76 mm | 0.266 in | Chrome | 300 VDC | 24 AWG | Foil | 80 °C | -20 ░C | 7 | 32 AWG | ||
 Belden Inc. | 100 % | Aluminum | Multi-Conductor | Computer | Drain Wire | 1.219 mm | 0.048 in | Copper Tinned | 304.8 m | 1000 ft | UL Style 2919 | Poly-Vinyl Chloride (PVC) | 4 | Foam Polyethylene (FPE) | 6.76 mm | 0.266 in | Chrome | 300 VDC | 24 AWG | Foil | 80 °C | -20 ░C | 7 | 32 AWG | ||
Belden Inc. | 100 % | Aluminum | Multi-Pair | Drain Wire | 1.219 mm | 0.048 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | 4 | Foam Polyethylene (FPE) | 6.76 mm | 0.266 in | Chrome | 24 AWG | Foil | 80 °C | -20 ░C | 7 | 32 AWG | 100 ft | 30.5 m |
