L777TSBH25 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

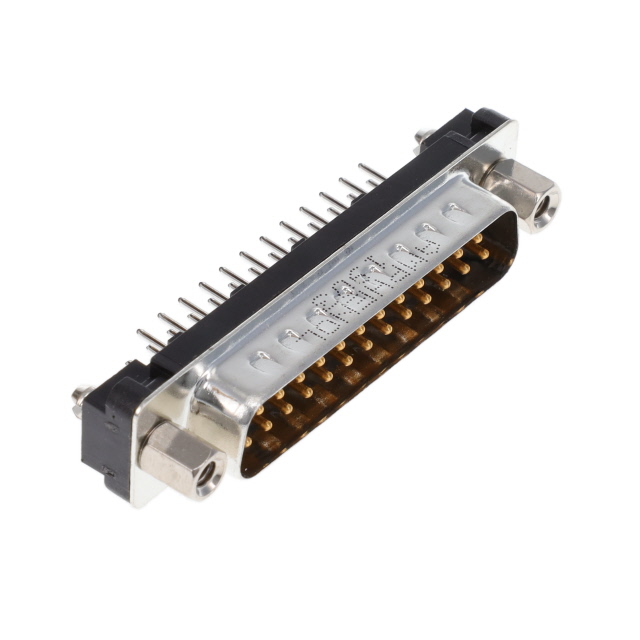

CONN D-SUB PLUG 25POS VERT SLDR
| Part | Dielectric Material | Contact Material | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Flange Feature | Material Flammability Rating | Termination | Contact Type | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Features | Contact Finish | Number of Positions | Mounting Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | Stamped | -55 C | 125 °C | 600 V | Plug Male Pins | B DB | 3 | Board Side (4-40) | UL94 V-0 | Solder | Signal | 5 A | 0.38 µm | 15 µin | 2 | Board Lock Grounding Indents | Gold | 25 | Through Hole | D-Sub |
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | Stamped | -55 C | 125 °C | 600 V | Plug Male Pins | B DB | 3 | 4-40 Mating Side Female Screwlock | UL94 V-0 | Solder | Signal | 5 A | 0.38 µm | 15 µin | 2 | Board Lock Grounding Indents | Gold | 25 | Through Hole | D-Sub |
