XC6806 Series

Catalog

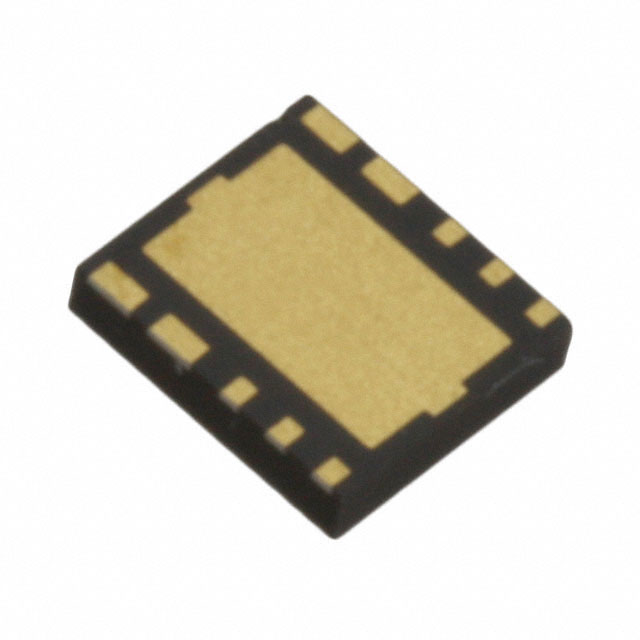

IC BATT CHG LI-ION 1CELL 10USPB

Part	Interface	Number of Cells	Battery Pack Voltage	Mounting Type	Fault Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current - Charging	Charge Current - Max [Max]	Programmable Features	Package / Case	Battery Chemistry [custom]	Voltage - Supply (Max) [Max]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package
Torex Semiconductor Ltd XC6806C445DR-G	USB	1	4.45 V	Surface Mount	Over Current Over Temperature Reverse Current	85 C	-40 ¯C	Constant - Programmable	385 mA	Current	10-PowerUDFN	Lithium Ion/Polymer	5.5 V	2.9	2.6	10-USPB
Torex Semiconductor Ltd XC6806B415DR-G	USB	1	4.15 V	Surface Mount	Over Current Over Temperature Reverse Current	85 C	-40 ¯C	Constant - Programmable	385 mA	Current	10-PowerUDFN	Lithium Ion/Polymer	5.5 V	2.9	2.6	10-USPB
Torex Semiconductor Ltd XC6806B35011-G	USB	1	3.5 V	Surface Mount	Over Current Over Temperature Reverse Current	85 C	-40 ¯C	Constant - Programmable	385 mA	Current	10-XFLGA	Lithium Ion/Polymer	5.5 V			10-LGA-B01 (2.5x1.6)
Torex Semiconductor Ltd XC6806B42511-G	USB	1	4.25 V	Surface Mount	Over Current Over Temperature Reverse Current	85 C	-40 ¯C	Constant - Programmable	385 mA	Current	10-XFLGA	Lithium Ion/Polymer	5.5 V			10-LGA-B01 (2.5x1.6)
Torex Semiconductor Ltd XC6806B41011-G	USB	1	4.1 V	Surface Mount	Over Current Over Temperature Reverse Current	85 C	-40 ¯C	Constant - Programmable	385 mA	Current	10-XFLGA	Lithium Ion/Polymer	5.5 V			10-LGA-B01 (2.5x1.6)
Torex Semiconductor Ltd XC6806C395DR-G	USB	1	3.95 V	Surface Mount	Over Current Over Temperature Reverse Current	85 C	-40 ¯C	Constant - Programmable	385 mA	Current	10-PowerUDFN	Lithium Ion/Polymer	5.5 V	2.9	2.6	10-USPB
Torex Semiconductor Ltd XC6806C420DR-G	USB	1	4.2 V	Surface Mount	Over Current Over Temperature Reverse Current	85 C	-40 ¯C	Constant - Programmable	385 mA	Current	10-PowerUDFN	Lithium Ion/Polymer	5.5 V	2.9	2.6	10-USPB
Torex Semiconductor Ltd XC6806B405DR-G	USB	1	4.05 V	Surface Mount	Over Current Over Temperature Reverse Current	85 C	-40 ¯C	Constant - Programmable	385 mA	Current	10-PowerUDFN	Lithium Ion/Polymer	5.5 V	2.9	2.6	10-USPB
Torex Semiconductor Ltd XC6806A410DR-G	USB	1	4.1 V	Surface Mount	Over Current Over Temperature Reverse Current	85 C	-40 ¯C	Constant - Programmable	385 mA	Current	10-PowerUDFN	Lithium Ion/Polymer	5.5 V	2.9	2.6	10-USPB
Torex Semiconductor Ltd XC6806A39511-G	USB	1	3.95 V	Surface Mount	Over Current Over Temperature Reverse Current	85 C	-40 ¯C	Constant - Programmable	385 mA	Current	10-XFLGA	Lithium Ion/Polymer	5.5 V			10-LGA-B01 (2.5x1.6)
