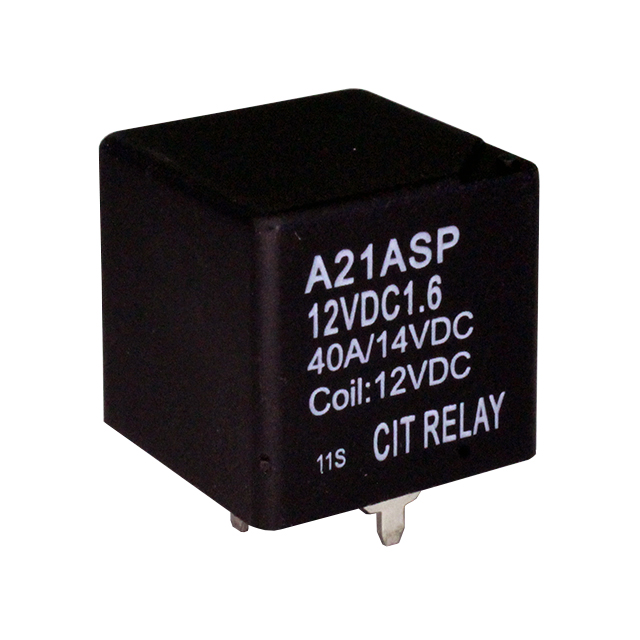

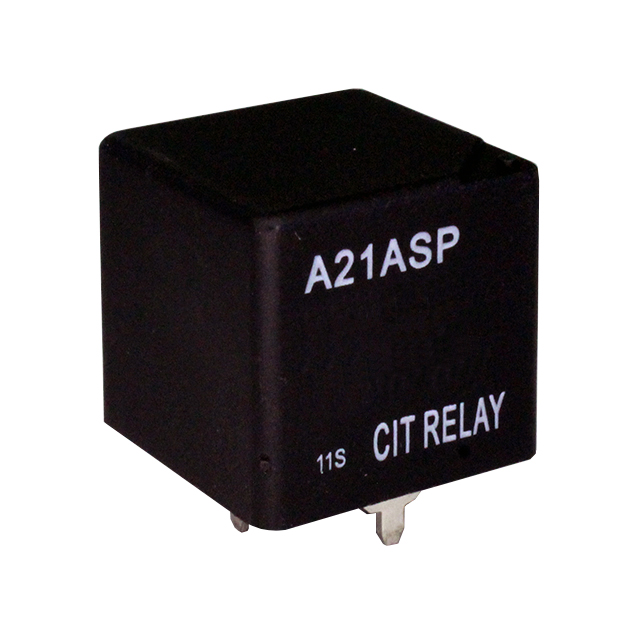

A21ASP Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 40A 24V
| Part | Coil Power | Coil Resistance | Contact Material | Must Release Voltage | Coil Current | Mounting Type | Operate Time | Contact Rating (Current) | Contact Form | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Features | Release Time | Must Operate Voltage | Coil Voltage | Coil Type | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 1.6 W | 360 Ohms | Silver Tin Oxide (AgSnO) | 2.4 VDC | 66.7 mA | Through Hole | 7 ms | 40 A | SPST-NO (1 Form A) | PC Pin | 125 °C | -40 C | Resistor Sealed - Fully | 5 ms | 16.8 VDC | 24 VDC | Non Latching | 75 VDC |
 CIT Relay and Switch | 1.6 W | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.2 VDC | 133.3 mA | Through Hole | 7 ms | 40 A | SPST-NO (1 Form A) | PC Pin | 125 °C | -40 C | Diode Sealed - Fully | 5 ms | 8.4 VDC | 12 VDC | Non Latching | 75 VDC |
 CIT Relay and Switch | 1.6 W | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.2 VDC | 133.3 mA | Through Hole | 7 ms | 40 A | SPST-NO (1 Form A) | PC Pin | 125 °C | -40 C | Sealed - Fully | 5 ms | 8.4 VDC | 12 VDC | Non Latching | 75 VDC |
 CIT Relay and Switch | 1.6 W | 360 Ohms | Silver Tin Oxide (AgSnO) | 2.4 VDC | 66.7 mA | Through Hole | 7 ms | 40 A | SPST-NO (1 Form A) | PC Pin | 125 °C | -40 C | Diode Sealed - Fully | 5 ms | 16.8 VDC | 24 VDC | Non Latching | 75 VDC |
