160336 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

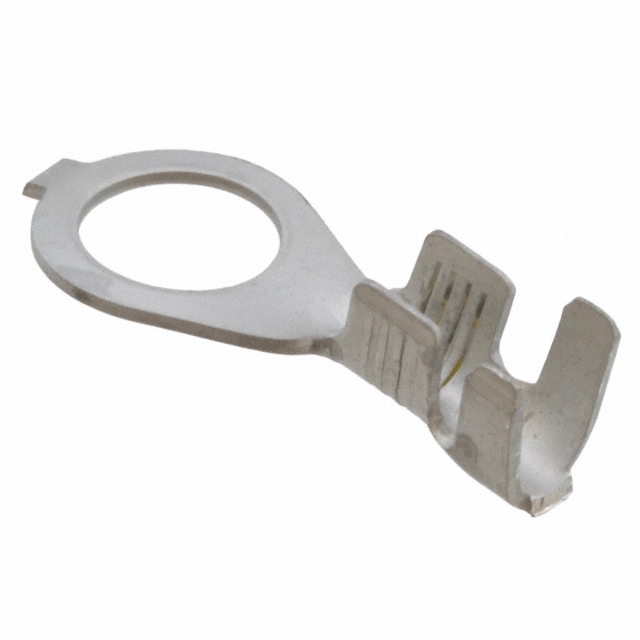

CONN RING CIRC 10-12AWG M8 CRIMP
| Part | Length - Overall [x] | Length - Overall [x] | Terminal Type | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Termination | Width - Outer Edges [y] | Width - Outer Edges [y] | Thickness | Thickness | Insulation | Stud/Tab Size | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 26 mm | 1.024 in | Circular | Free Hanging (In-Line) | 12 AWG | 10 AWG | 0.15 " | 0.209 in | 5.31 mm | 3.81 mm | Crimp | 0.468 in | 11.89 mm | 0.03 in | 0.76 mm | Non-Insulated | M8 Stud | Brass | Tin |
