H6B Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
CONN HOOD SIDE ENTRY SZH6B M20
| Part | Size | Housing Finish | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Housing Material | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Style | Lock Location | Thread Size | Features | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

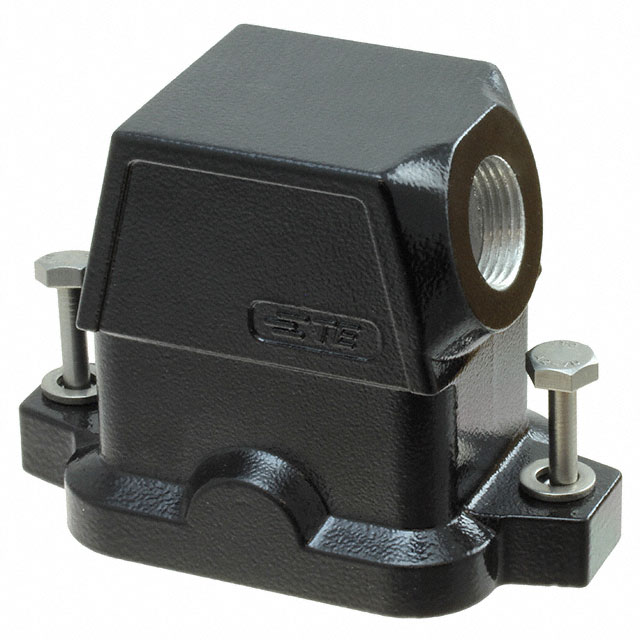

 TE Connectivity Aerospace, Defense and Marine | H6B | Powder Coated | 70 mm | 53.2 mm | 2.094 " | 3.78 " | 2.756 in | 96 mm | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | 125 °C | -40 °C | Black | Side Entry | Screw Locks on Hood | M20 | Corrosion Resistant EMC Resistant | Hood |

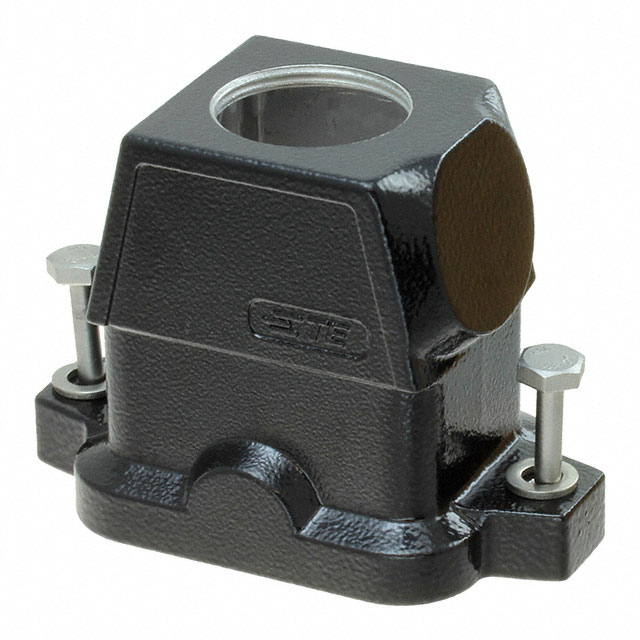

 TE Connectivity Aerospace, Defense and Marine | H6B | Powder Coated | 70 mm | 53.2 mm | 2.094 " | 3.78 " | 2.756 in | 96 mm | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | 125 °C | -40 °C | Black | Top Entry | Screw Locks on Hood | M32 | Corrosion Resistant EMC Resistant | Hood |
