381-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K

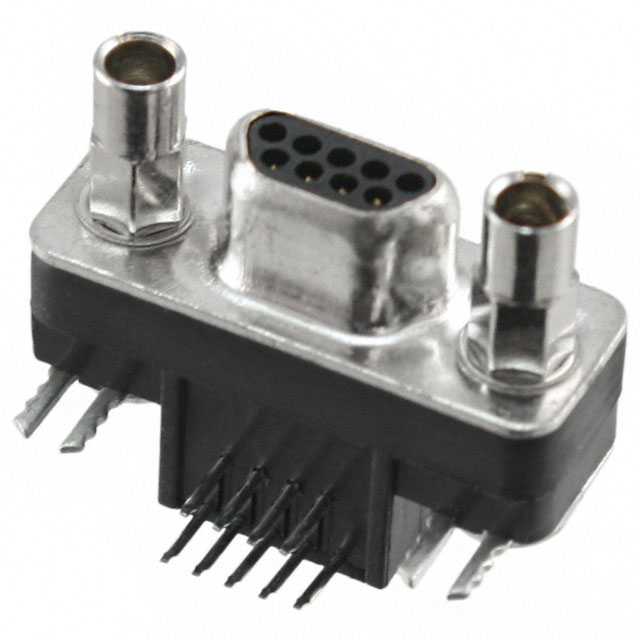

D SUB CONNECTOR, MICRO D, PLUG, 381 SERIES, 9 CONTACTS, SOLDER
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Finish | Termination | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Connector Type | Mounting Type | Flange Feature | Material Flammability Rating | Features | Contact Type | Shell Size, Connector Layout [y] | Shell Size, Connector Layout [x] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Copper Alloy | -55 C | 85 °C | Thermoplastic | Gold | Solder | D-Type Micro-D | 0.38 µm | 15 µin | 9 | Plug Male Pins | Board Edge Right Angle Through Hole | Mating Side Female Screwlock (2-56) | UL94 V-0 | Board Lock Shielded | Signal | 0.043 in | 0.05 in | 2 |
