LGA50-D Series

Catalog

NON ISOLATED POL DC/DC CONVERTER, ITE, 92 W, 600 MV, 3.3 V, 50 A, ADJUSTABLE

Part	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max)	Type	Features	Applications	Voltage - Output 2 [Min]	Voltage - Output 2 [Max]	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]

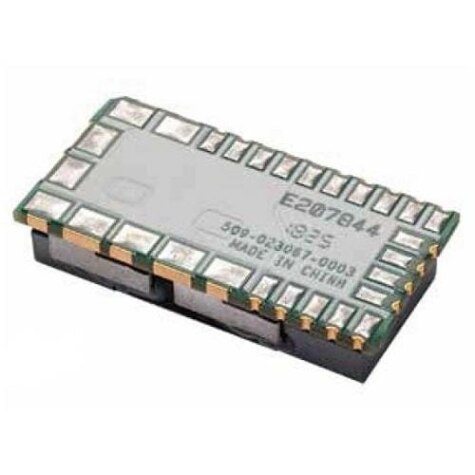

ARTESYN / Advanced Energy LGA50D-01DADJLPJ	2	85 °C	-40 C	7.5 V	25 A	Non-Isolated PoL Module Digital	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	0.6 V	3.3 V	14 V	91.1 %	Surface Mount	0.6 V	3.3 V	0.24 in	25.4 mm	1 in	6 mm	12.9 mm	0.51 in	28-SMD Module

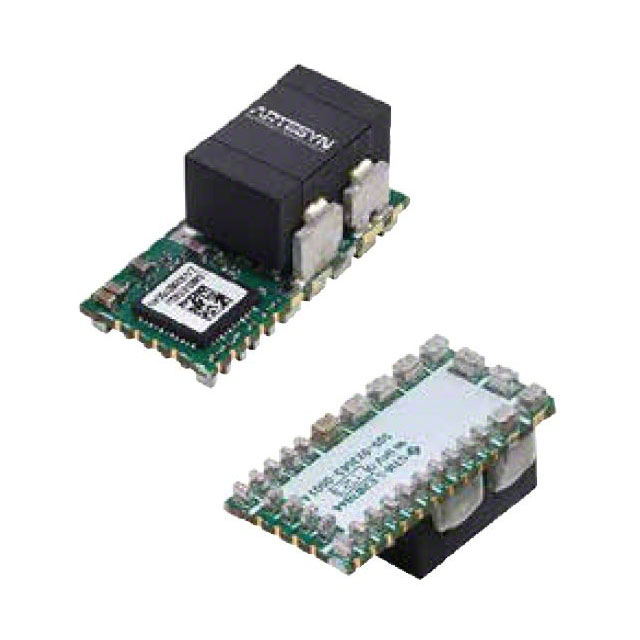

ARTESYN / Advanced Energy LGA50D-01DADJJ	2	85 °C	-40 C	7.5 V	25 A	Non-Isolated PoL Module Digital		ITE (Commercial)	0.6 V	5 V	14 V	95.5 %	Surface Mount			0.48 "	25.4 mm	1 in	12.2 mm	12.7 mm	0.5 "	28-SMD Module	0.6 V	5 V

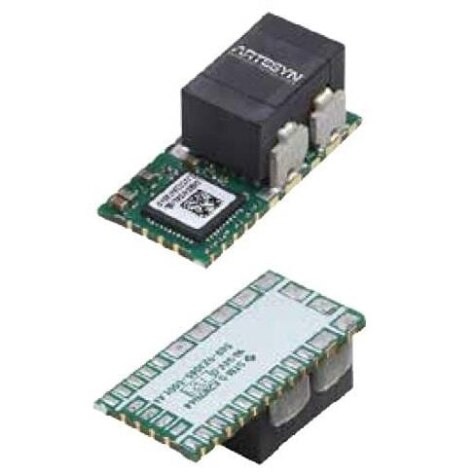

ARTESYN / Advanced Energy LGA50D-01DADJSBJ	2	85 °C	-40 C	7.5 V	25 A	Non-Isolated PoL Module Digital		ITE (Commercial)	0.6 V	5 V	14 V	95.5 %	Surface Mount			0.42 "	25.4 mm	1 in	10.6 mm	12.7 mm	0.5 "	28-SMD Module	0.6 V	5 V
