M52-040 Series

Catalog

10 POS. MALE SIL VERTICAL SMT CONN. ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Connector Type	Contact Type	Number of Rows	Termination	Insulation Material	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Shrouding	Contact Material	Contact Finish - Mating	Insulation Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]
Harwin Inc. M52-040000P1045	8.37 mm 9.77 mm 12.27 mm	Header	Male Pin	1	Solder	Nylon 6T Polyamide (PA6T)	0.098 "	2.5 mm	UL94 V-0	All	Flash	Unshrouded	Brass	Gold	Black	Push-Pull	-40 C	105 ░C	Square	1.27 mm	0.05 in	Surface Mount	10	4 mm	0.157 in

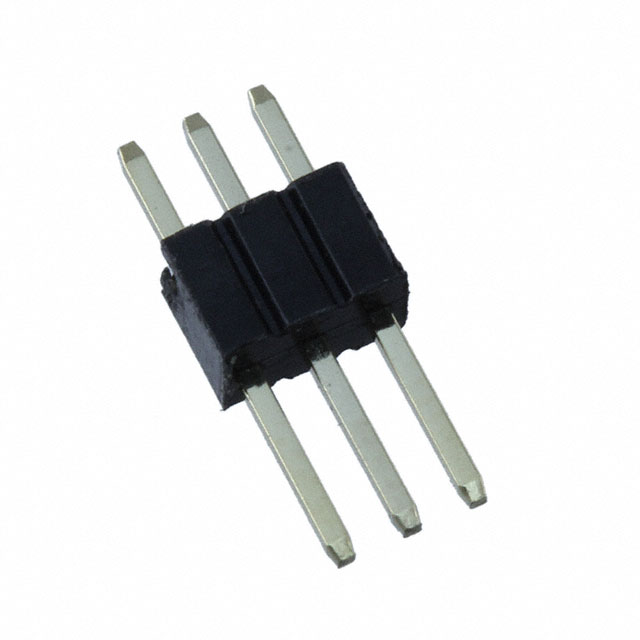

Harwin Inc. M52-040023V0345	7.1 mm 8.5 mm 11 mm	Header	Male Pin	1	Solder	Nylon 6T Polyamide (PA6T)	0.098 "	2.5 mm	UL94 V-0	All	Flash	Unshrouded	Brass	Gold	Black	Push-Pull	-40 C	105 ░C	Square	1.27 mm	0.05 in	Through Hole		4 mm	0.157 in	8.8 mm	0.346 in	0.091 "	2.3 mm

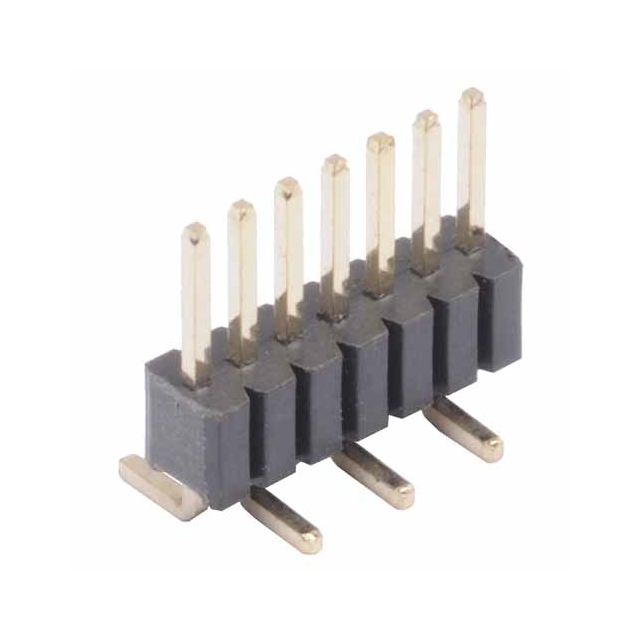

Harwin Inc. M52-040000P2045	8.37 mm 9.77 mm 12.27 mm	Header	Male Pin	1	Solder	Nylon 6T Polyamide (PA6T)	0.098 "	2.5 mm	UL94 V-0	All	Flash	Unshrouded	Brass	Gold	Black	Push-Pull	-40 C	105 ░C	Square	1.27 mm	0.05 in	Surface Mount	20	4 mm	0.157 in					Flash	Gold

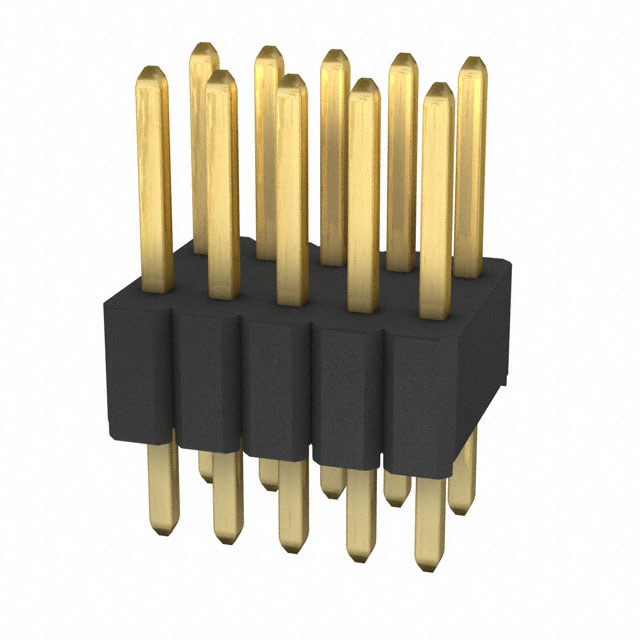

Harwin Inc. M52-040023W0545	7.1 mm 8.5 mm 11 mm	Header	Male Pin		Solder	Nylon 6T Polyamide (PA6T)	0.098 "	2.5 mm	UL94 V-0	All	Flash	Unshrouded	Brass	Gold	Black	Push-Pull	-40 C	105 ░C	Square	1.27 mm	0.05 in	Through Hole	10	4 mm	0.157 in	8.8 mm	0.346 in	0.091 "	2.3 mm			0.1 in	2.54 mm	2

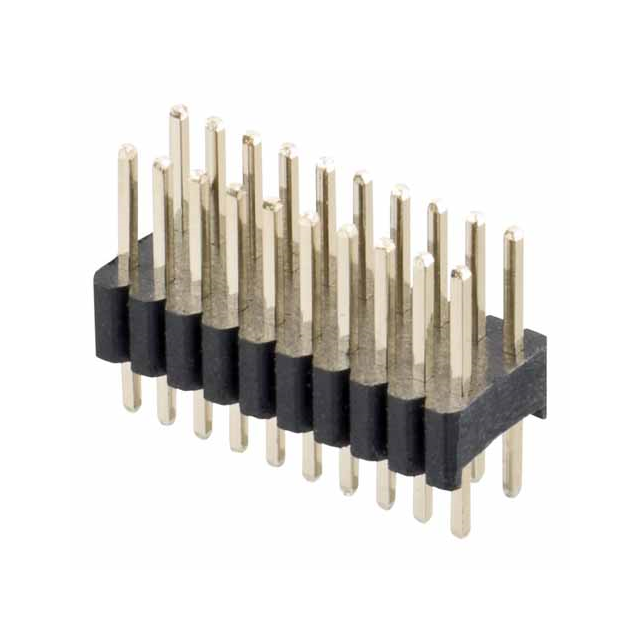

Harwin Inc. M52-040023W2045	7.1 mm 8.5 mm 11 mm	Header	Male Pin		Solder	Nylon 6T Polyamide (PA6T)	0.098 "	2.5 mm	UL94 V-0	All	Flash	Unshrouded	Brass	Gold	Black	Push-Pull	-40 C	105 ░C	Square	1.27 mm	0.05 in	Through Hole	40	4 mm	0.157 in	8.8 mm	0.346 in	0.091 "	2.3 mm	Flash	Gold	0.1 in	2.54 mm	2
Harwin Inc. M52-040000S2045	8.37 mm 9.77 mm 12.27 mm	Header	Male Pin		Solder	Nylon 6T Polyamide (PA6T)	0.098 "	2.5 mm	UL94 V-0	All	Flash	Unshrouded	Brass	Gold	Black	Push-Pull	-40 C	105 ░C	Square	1.27 mm	0.05 in	Through Hole	40	4 mm	0.157 in					Flash	Gold	0.1 in	2.54 mm	2
Harwin Inc. M52-040000S2545	8.37 mm 9.77 mm 12.27 mm	Header	Male Pin		Solder	Nylon 6T Polyamide (PA6T)	0.098 "	2.5 mm	UL94 V-0	All	Flash	Unshrouded	Brass	Gold	Black	Push-Pull	-40 C	105 ░C	Square	1.27 mm	0.05 in	Through Hole	50	4 mm	0.157 in					Flash	Gold	0.1 in	2.54 mm	2
Harwin Inc. M52-040000P2545	8.37 mm 9.77 mm 12.27 mm	Header	Male Pin	1	Solder	Nylon 6T Polyamide (PA6T)	0.098 "	2.5 mm	UL94 V-0	All	Flash	Unshrouded	Brass	Gold	Black	Push-Pull	-40 C	105 ░C	Square	1.27 mm	0.05 in	Surface Mount	25	4 mm	0.157 in
