91AR Series

Catalog

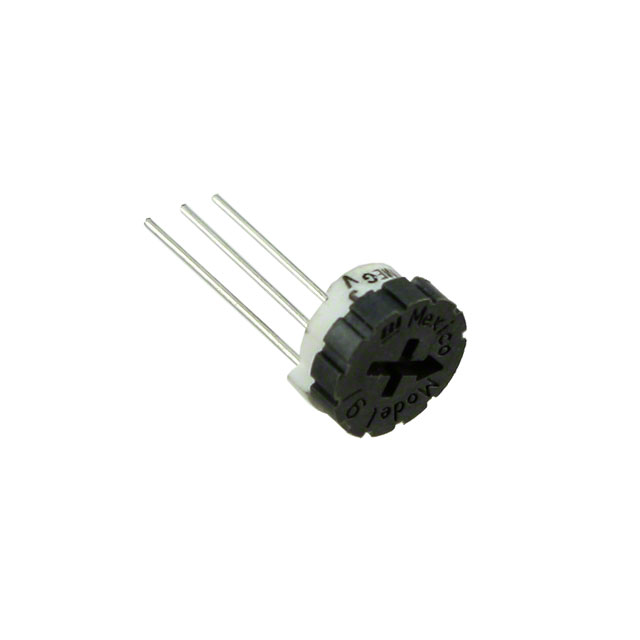

TRIMMER 2M OHM 0.5W PC PIN TOP

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Adjustment Type	Termination Style	Power (Watts)	Power (Watts)	Number of Turns	Tolerance	Resistance	Resistive Material	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination
TT Electronics/BI 91AR2MEGLF	0.375 in	9.78 mm	9.53 mm	0.385 "	100 ppm/°C	Top Adjustment	PC Pins	0.5 W	0.5 W	1	20 %	2 MOhms	Cermet	Through Hole
TT Electronics/BI 91AR250KLF	0.375 in	9.78 mm	9.53 mm	0.385 "	100 ppm/°C	Top Adjustment	PC Pins	0.5 W	0.5 W	1	20 %	250000 Ohms	Cermet	Through Hole
TT Electronics/BI 91AR5KLF						Top Adjustment		0.5 W	0.5 W	1	20 %	5 kOhms		Through Hole	0.2 "	0.2 "	9.53 mm	0.375 "	PC Pins
TT Electronics/BI 91AR25KLF						Top Adjustment		0.5 W	0.5 W	1	20 %	25 kOhms		Through Hole	0.2 "	0.2 "	9.53 mm	0.375 "	PC Pins
TT Electronics/BI 91AR500LF						Top Adjustment		0.5 W	0.5 W	1	20 %	0.5 kOhms		Through Hole	0.2 "	0.2 "	9.53 mm	0.375 "	PC Pins
TT Electronics/BI 91AR50KLF						Top Adjustment		0.5 W	0.5 W	1	20 %	50000 Ohms		Through Hole	0.2 "	0.2 "	9.53 mm	0.375 "	PC Pins
TT Electronics/BI 91AR50LF	0.375 in	9.78 mm	9.53 mm	0.385 "	100 ppm/°C	Top Adjustment	PC Pins	0.5 W	0.5 W	1	20 %	50 Ohms	Cermet	Through Hole
TT Electronics/BI 91AR2KLF						Top Adjustment		0.5 W	0.5 W	1	20 %	2 kOhms		Through Hole	0.2 "	0.2 "	9.53 mm	0.375 "	PC Pins
TT Electronics/BI 91AR200LF						Top Adjustment		0.5 W	0.5 W	1	20 %	200 Ohms		Through Hole	0.2 "	0.2 "	9.53 mm	0.375 "	PC Pins
TT Electronics/BI 91AR500KLF	0.375 in	9.78 mm	9.53 mm	0.385 "	100 ppm/°C	Top Adjustment	PC Pins	0.5 W	0.5 W	1	20 %		Cermet	Through Hole
