ADS5547 Series
Manufacturer: Texas Instruments
Beta
⌘K

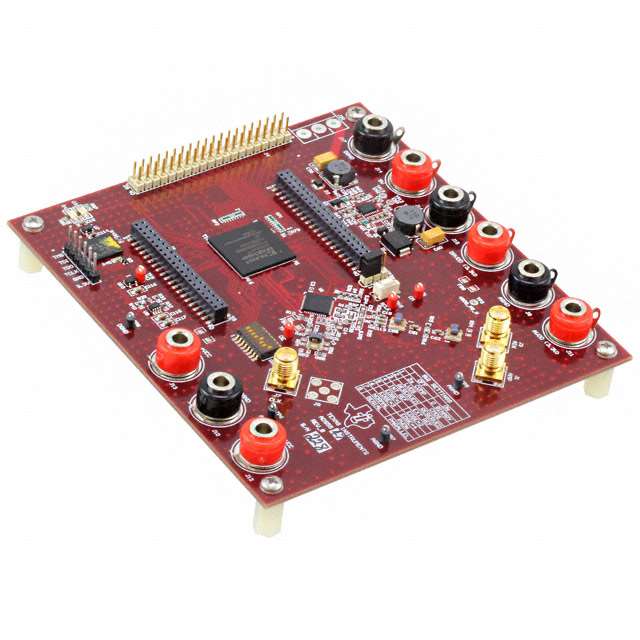

ADS5547EVM
| Part | Sampling Rate (Per Second) | Number of A/D Converters | Power (Typ) @ Conditions | Number of Bits | Utilized IC / Part | Supplied Contents | Data Interface | Input Range [Min] | Input Range [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Package / Case | Mounting Type | Number of Inputs | Input Type | Configuration | Architecture | Reference Type | Ratio - S/H:ADC | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 210 M per second | 1 | 1.23 W | 14 | ADS5547 | Board(s) | Parallel Serial | 1 Vpp | 2 Vpp | |||||||||||||||
 Texas Instruments | 210 M per second | 1 | 14 | LVDS - Parallel Parallel | 48-VQFN (7x7) | 85 °C | -40 °C | 3.6 V | 3 V | 48-VFQFN Exposed Pad | Surface Mount | 1 | Differential | S/H-ADC | Pipelined | External Internal | 1:1 | 3.6 V | 3 V | |||||
Texas Instruments | 210 M per second | 1 | 14 | LVDS - Parallel Parallel | 48-VQFN (7x7) | 85 °C | -40 °C | 3.6 V | 3 V | 48-VFQFN Exposed Pad | Surface Mount | 1 | Differential | S/H-ADC | Pipelined | External Internal | 1:1 | 3.6 V | 3 V | |||||
Texas Instruments | 210 M per second | 1 | 14 | LVDS - Parallel Parallel | 48-VQFN (7x7) | 85 °C | -40 °C | 3.6 V | 3 V | 48-VFQFN Exposed Pad | Surface Mount | 1 | Differential | S/H-ADC | Pipelined | External Internal | 1:1 | 3.6 V | 3 V | |||||
Texas Instruments | 210 M per second | 1 | 14 | LVDS - Parallel Parallel | 48-VQFN (7x7) | 85 °C | -40 °C | 3.6 V | 3 V | 48-VFQFN Exposed Pad | Surface Mount | 1 | Differential | S/H-ADC | Pipelined | External Internal | 1:1 | 3.6 V | 3 V |
