HLMP-EL08 Series

Catalog

LED AMBER CLEAR T-1 3/4 T/H

Part	Height (Max) [Max]	Lens Style	Millicandela Rating	Package / Case	Lens Transparency	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Configuration	Supplier Device Package	Viewing Angle	Current - Test	Lens Color	Color	Mounting Type	Wavelength - Dominant	Lens Size	Lens Size
Broadcom Limited HLMP-EL08-XYK00	8.91 mm	Round with Domed Top	9600 mcd	Radial	Clear	592 nm	2.02 V	Standard	T-1 3/4	8 °	20 mA	Colorless	Amber	Through Hole	590 nm	T-1 3/4	5 mm
Broadcom Limited HLMP-EL08-Y20DD	8.91 mm	Round with Domed Top	18150 mcd	Radial	Clear	592 nm	2.02 V	Standard	T-1 3/4	8 °	20 mA	Colorless	Amber	Through Hole	590 nm	T-1 3/4	5 mm
Broadcom Limited HLMP-EL08-VYKDD	8.91 mm	Round with Domed Top	8100 mcd	Radial	Clear	592 nm	2.02 V	Standard	T-1 3/4	8 °	20 mA	Colorless	Amber	Through Hole	590 nm	T-1 3/4	5 mm
Broadcom Limited HLMP-EL08-VY0YY	8.91 mm	Round with Domed Top	8100 mcd	Radial	Clear	592 nm	2.02 V	Standard	T-1 3/4	8 °	20 mA	Colorless	Amber	Through Hole	590 nm	T-1 3/4	5 mm

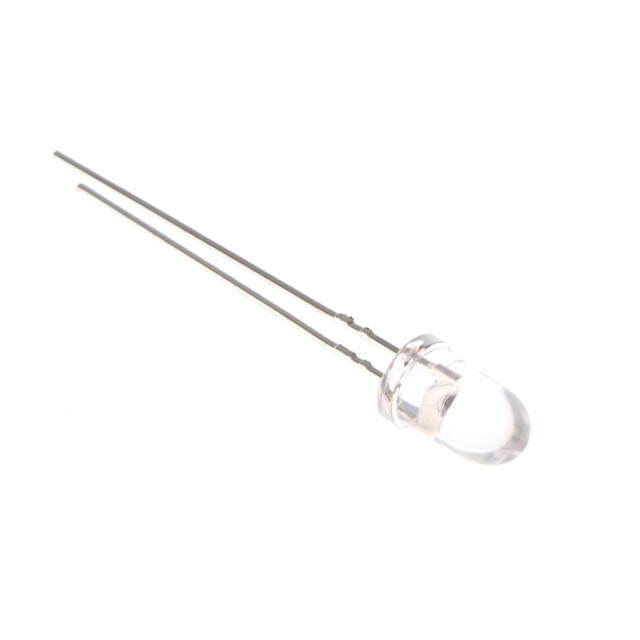

Broadcom Limited HLMP-EL08-X1000	8.91 mm	Round with Domed Top	14100 mcd	Radial	Clear	592 nm	2.02 V	Standard	T-1 3/4	8 °	20 mA	Colorless	Amber	Through Hole	590 nm	T-1 3/4	5 mm
Broadcom Limited HLMP-EL08-VY0DD	8.91 mm	Round with Domed Top	8100 mcd	Radial	Clear	592 nm	2.02 V	Standard	T-1 3/4	8 °	20 mA	Colorless	Amber	Through Hole	590 nm	T-1 3/4	5 mm
Broadcom Limited HLMP-EL08-X1KDD	8.91 mm	Round with Domed Top	14100 mcd	Radial	Clear	592 nm	2.02 V	Standard	T-1 3/4	8 °	20 mA	Colorless	Amber	Through Hole	590 nm	T-1 3/4	5 mm
Broadcom Limited HLMP-EL08-X1K00	8.91 mm	Round with Domed Top	14100 mcd	Radial	Clear	592 nm	2.02 V	Standard	T-1 3/4	8 °	20 mA	Colorless	Amber	Through Hole	590 nm	T-1 3/4	5 mm
Broadcom Limited HLMP-EL08-X10DD	8.91 mm	Round with Domed Top	14100 mcd	Radial	Clear	592 nm	2.02 V	Standard	T-1 3/4	8 °	20 mA	Colorless	Amber	Through Hole	590 nm	T-1 3/4	5 mm
Broadcom Limited HLMP-EL08-Z3K00	8.91 mm	Round with Domed Top		Radial	Clear	592 nm	2.02 V	Standard	T-1 3/4	8 °	20 mA	Colorless	Amber	Through Hole	590 nm	T-1 3/4	5 mm
