A-2004 Series

Catalog

CONN MOD JACK 6P4C R/A UNSHLD

Part	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	LED Color	Orientation	Termination	Tab Direction	Contact Material	Shielding	Number of Positions/Contacts [y]	Number of Positions/Contacts [x]	Connector Type	Features	Contact Finish	Number of Ports	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Number of Positions/Contacts
Assmann WSW Components A-2004-0-1-N	Polyester Glass Filled	85 °C	-40 C	0.38 µm	15 µin	1	Through Hole	Does Not Contain LED	90 °	Solder	Down	Phosphor Bronze	Unshielded	4	6	Jack	Board Lock	Gold	1

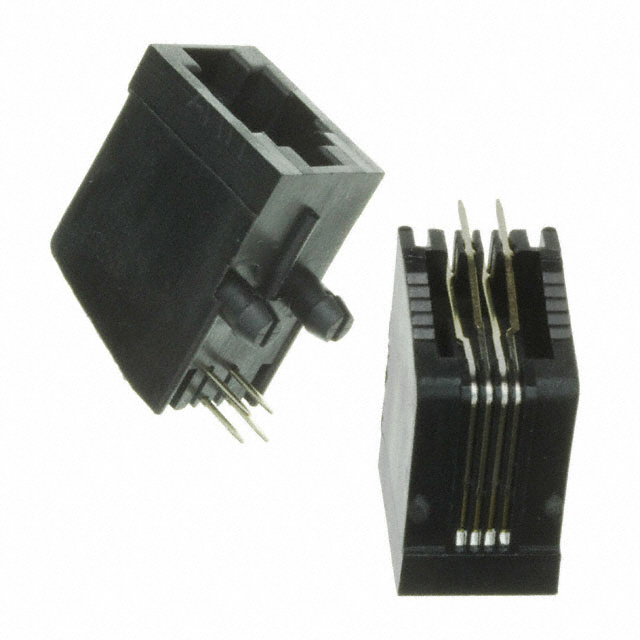

Assmann WSW Components A-2004-3-4-N-R	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-40 C	0.152 Ám	6 Áin	1	Through Hole	Does Not Contain LED	90 °	Solder	Down	Phosphor Bronze	Unshielded			Jack	Board Lock	Gold	1	4 contacts	4 positions

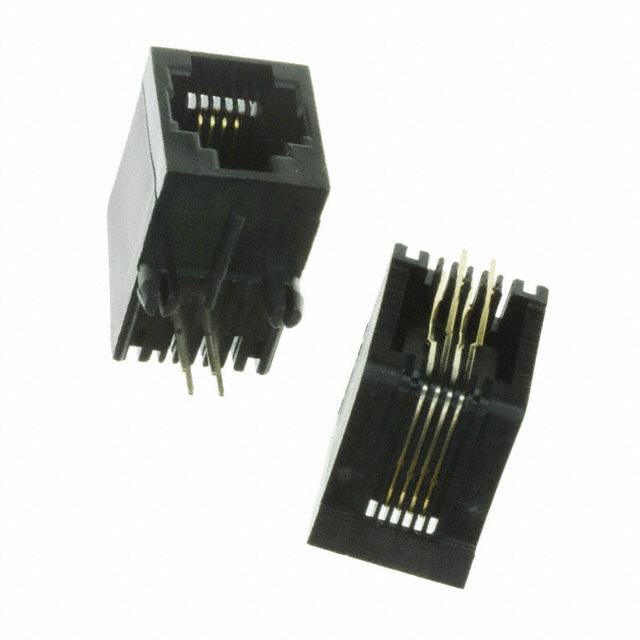

Assmann WSW Components A-2004-0-4-N-R	Polyester Glass Filled	85 °C	-40 C	0.152 Ám	6 Áin	1	Through Hole	Does Not Contain LED	90 °	Solder	Down	Phosphor Bronze	Unshielded	4	6	Jack	Board Lock	Gold	1
Assmann WSW Components A-2004-3-2-LP-N	Polyester Glass Filled	85 °C	-40 C	0.76 Ám	30 Áin	1	Through Hole	Does Not Contain LED	90 °	Solder	Down	Phosphor Bronze	Unshielded			Jack	Board Lock	Gold	1	4 contacts	4 positions
Assmann WSW Components A-2004-0-1-LP-N	Polyester Glass Filled	85 °C	-40 C	0.38 µm	15 µin	1	Through Hole	Does Not Contain LED	90 °	Solder	Down	Phosphor Bronze	Unshielded	4	6	Jack	Board Lock	Gold	1
Assmann WSW Components A-2004-2-2-LP/FS-N	Polyester	85 °C	-40 C	0.76 Ám	30 Áin	1	Through Hole	Does Not Contain LED	90 °	Solder	Down	Phosphor Bronze	Shielded			Jack	Board Lock	Gold	1			8p8c (RJ45 Ethernet)
Assmann WSW Components A-2004-1-3-N	Polyester Glass Filled	85 °C	-40 C	1.27 µm	50 µin	1	Through Hole	Does Not Contain LED	90 °	Solder	Down	Phosphor Bronze	Unshielded	6	6	Jack	Board Lock	Gold	1
Assmann WSW Components A-2004-3-2-N	Polyester Glass Filled	85 °C	-40 C	0.76 Ám	30 Áin	1	Through Hole	Does Not Contain LED	90 °	Solder	Down	Phosphor Bronze	Unshielded			Jack	Board Lock	Gold	1	4 contacts	4 positions
Assmann WSW Components A-2004-2-2-LP-N	Polyester Glass Filled	85 °C	-40 C	0.76 Ám	30 Áin	1	Through Hole	Does Not Contain LED	90 °	Solder	Down	Phosphor Bronze	Unshielded			Jack	Board Lock	Gold	1			8p8c (RJ45 Ethernet)
Assmann WSW Components A-2004-3-2	Polyester Glass Filled	85 °C	-40 C	0.76 Ám	30 Áin	1	Through Hole	Does Not Contain LED	90 °	Solder	Down	Phosphor Bronze	Unshielded			Jack	Board Lock Panel Stops	Gold	1	4 contacts	4 positions
