2466287 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

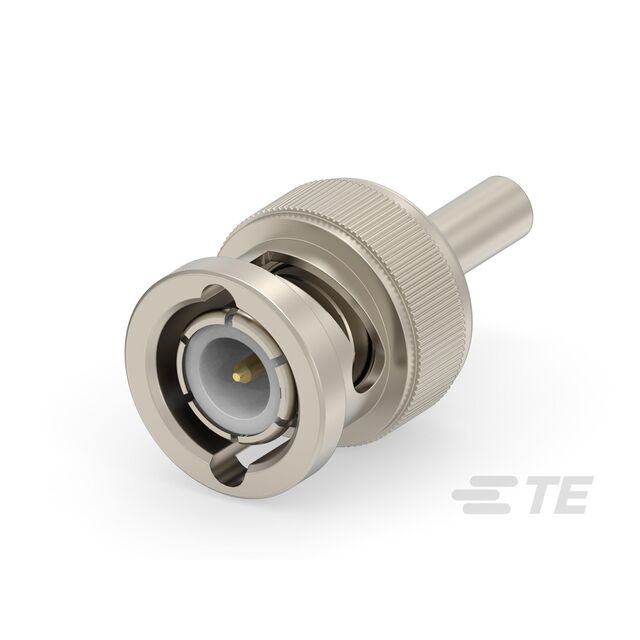

BNC M STR CRIMP RG174 188 316 4GHZ 50OHM
| Part | Cable Group | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Contact Termination | Fastening Type | Number of Ports | Impedance | Includes | Frequency - Max [Max] | Body Material | Connector Type | Connector Style | Mounting Type | Dielectric Material | Center Contact Plating | Center Contact Material | Housing Color | Mating Cycles | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 188 316 RG-174 | -65 ░C | 165 °C | Nickel | Crimp | Bayonet Lock | 1 | 50 Ohms | 1 Connector 1 Contact 1 Ferrule | 4 GHz | Brass | Male Pin Plug | BNC | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Gold | Phosphor Bronze | Silver | 500 | Crimp |
