TB62218 Series

Catalog

IC MTRDRV BIPLR 4.75-5.25V 48QFN

Part	Supplier Device Package	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Mounting Type	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Motor Type - Stepper	Interface	Step Resolution	Step Resolution	Current - Output
Toshiba Semiconductor and Storage TB62218AFTG,8,EL	48-QFN (7x7)	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	General Purpose	Surface Mount	DMOS	150 °C	-20 °C	Half Bridge (4)	38 V	10 V	48-VFQFN Exposed Pad	Bipolar	Parallel	1/2 1/4	1	2 A
Toshiba Semiconductor and Storage TB62218AFTG,C8,EL	48-QFN (7x7)	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	General Purpose	Surface Mount	DMOS	150 °C	-20 °C	Half Bridge (4)	38 V	10 V	48-VFQFN Exposed Pad	Bipolar	Parallel	1/2 1/4	1	2 A

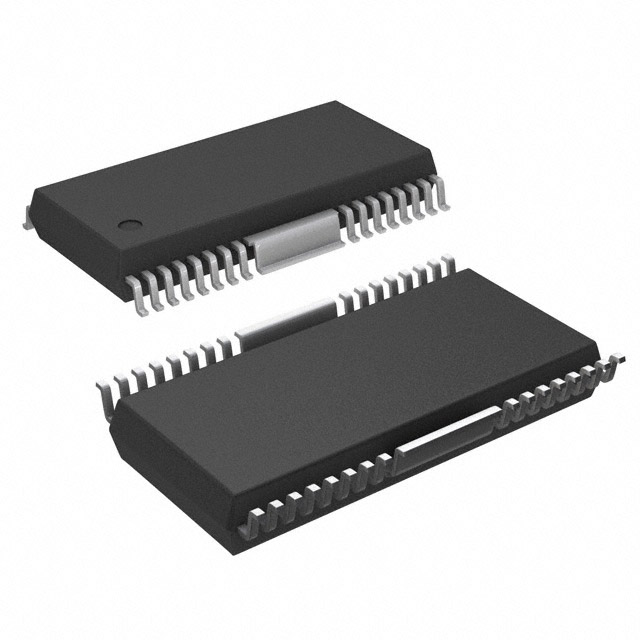

Toshiba Semiconductor and Storage TB62218AFG,C8,EL	28-HSOP	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	General Purpose	Surface Mount	DMOS	150 °C	-20 °C	Half Bridge (4)	38 V	10 V		Bipolar	Parallel	1/2 1/4	1	2 A
Toshiba Semiconductor and Storage TB62218AFNG,C8,EL	48-HTSSOP	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	General Purpose	Surface Mount	DMOS	150 °C	-20 °C	Half Bridge (4)	38 V	10 V	48-TFSOP (0.240" 6.10mm Width) Exposed Pad	Bipolar	Parallel	1/2 1/4	1	2 A
Toshiba Semiconductor and Storage TB62218AFG,8,EL	28-HSOP	Driver - Fully Integrated Control and Power Stage	4.75 V	5.25 V	General Purpose	Surface Mount	DMOS	150 °C	-20 °C	Half Bridge (4)	38 V	10 V		Bipolar	Parallel	1/2 1/4	1	2 A
