TPL0401B-10-Q1 Series

Automotive 128-tap single-channel digital potentiometer with I2C interface (address 0111110)

Catalog

Automotive 128-tap single-channel digital potentiometer with I2C interface (address 0111110)

Part	Configuration	Number of Circuits	Taper	Tolerance	Interface	Temperature Coefficient (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Memory Type	Number of Taps	Resistance - Wiper (Ohms) (Typ)	Mounting Type	Resistance (Ohms)	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Contents	Secondary Attributes	Primary Attributes	Function	Utilized IC / Part	Supplied Contents	Grade	Qualification
Texas Instruments TPL0401B-10DCKR	Potentiometer	1	Linear	20 %	I2C	22 ppm/°C	125 °C	-40 °C	SC-70-6	Volatile	128	35 Ohms	Surface Mount	10k	6-TSSOP SC-88 SOT-363	2.7 V	5.5 V

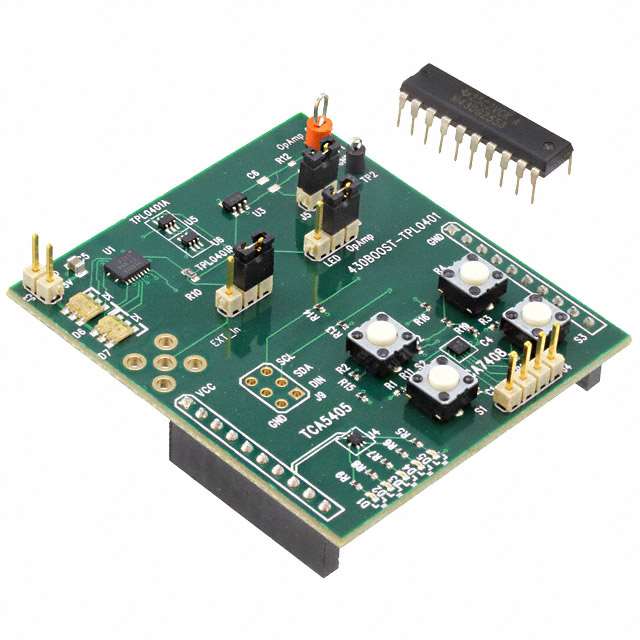

Texas Instruments TPL0401EVM																		Data Acquisition	Board(s)	USB Powered	1 Channel 128 Position	Digital Potentiometer	TPL0401	Board(s)
Texas Instruments TPL0401B-10QDCKRQ1	Potentiometer	1	Linear	20 %	I2C	22 ppm/°C	125 °C	-40 °C	SC-70-6	Volatile	128	35 Ohms	Surface Mount	10k	6-TSSOP SC-88 SOT-363	2.7 V	5.5 V								Automotive	AEC-Q100
Texas Instruments TPL0401A-10QDCKRQ1	Potentiometer	1	Linear	20 %	I2C	22 ppm/°C	125 °C	-40 °C	SC-70-6	Volatile	128	35 Ohms	Surface Mount	10k	6-TSSOP SC-88 SOT-363	2.7 V	5.5 V								Automotive	AEC-Q100

Catalog

Automotive 128-tap single-channel digital potentiometer with I2C interface (address 0111110)

Key Features

• Single-Channel, 128-Position Resolution10-kΩ End-to-End Resistance OptionsLow Temperature Coefficient: 22 ppm/°CI2C Serial Interface2.7-V to 5.5-V Single-Supply Operation±20% Resistance ToleranceA and B Versions Have Different I2C AddressesL Terminal is Internal and Connected to GNDOperating Temperature: –40°C to +125°CAvailable in Industry Standard SC70 PackagesESD Performance Tested per JESD 222000-V Human-Body Model (A114-B, Class II)Single-Channel, 128-Position Resolution10-kΩ End-to-End Resistance OptionsLow Temperature Coefficient: 22 ppm/°CI2C Serial Interface2.7-V to 5.5-V Single-Supply Operation±20% Resistance ToleranceA and B Versions Have Different I2C AddressesL Terminal is Internal and Connected to GNDOperating Temperature: –40°C to +125°CAvailable in Industry Standard SC70 PackagesESD Performance Tested per JESD 222000-V Human-Body Model (A114-B, Class II)

Description

The TPL0401x-10-Q1 device is a single-channel, linear-taper digital potentiometer with 128 wiper positions. The TPL0401x-10-Q1 has the low terminal internal and connected to GND. The position of the wiper can be adjusted using an I2C interface. The TPL0401x-10-Q1 is available in a 6-pin SC70 package with a specified temperature range of –40°C to +125°C. The part has a 10-kΩ end-to-end resistance and can operate with a supply voltage range of 2.7 V to 5.5 V. This kind of product is widely used in setting the voltage reference for low power DDR3 memory. The TPL0401x-10-Q1 has the low terminal internal and connected to GND. The TPL0401x-10-Q1 device is a single-channel, linear-taper digital potentiometer with 128 wiper positions. The TPL0401x-10-Q1 has the low terminal internal and connected to GND. The position of the wiper can be adjusted using an I2C interface. The TPL0401x-10-Q1 is available in a 6-pin SC70 package with a specified temperature range of –40°C to +125°C. The part has a 10-kΩ end-to-end resistance and can operate with a supply voltage range of 2.7 V to 5.5 V. This kind of product is widely used in setting the voltage reference for low power DDR3 memory. The TPL0401x-10-Q1 has the low terminal internal and connected to GND.
