T31-0 Series

Catalog

TIP,CHISEL,5.2 X 7.8MM,IH,350C/6

Part	Tip Shape	For Use With/Related Products	Temperature Range	Temperature Range	Tip Type	Height [z]	Height [z]	Width	Width	Length [x]	Length [x]	Width [x]	Width [x]	Length	Length	Diameter [diameter]	Diameter [diameter]	Width [y]	Width [y]	Height	Height

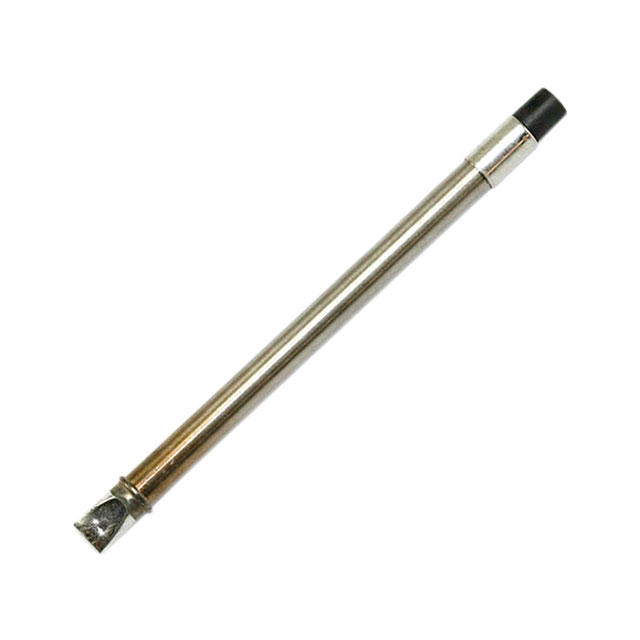

American Hakko Products, Inc. T31-03D52	Chisel	FX-100 FX1001	350 °C	662 °F	Soldering	0.03 in	0.76 mm	0.2 in	0.2 in	7.87 mm	0.31 in

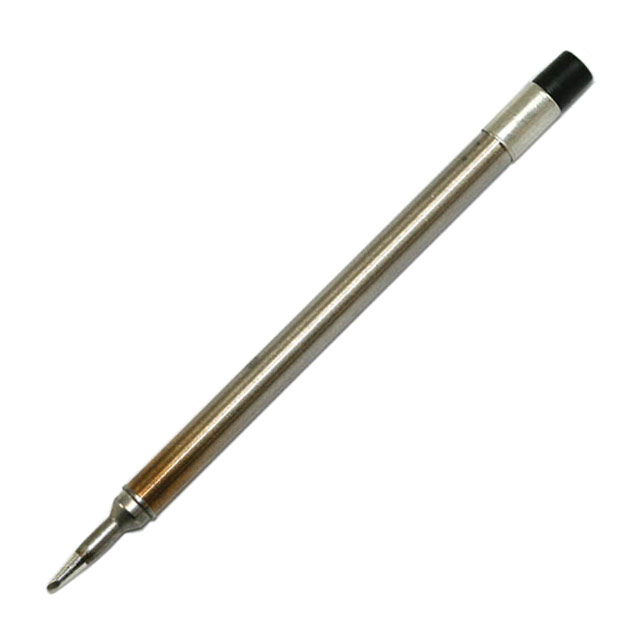

American Hakko Products, Inc. T31-01BC1	Bevel 60°	FX-100 FX1001	450 °C	842 °F	Soldering	0.05 in	1.28 mm			14.2 mm	0.559 in	1.02 mm	0.04 in

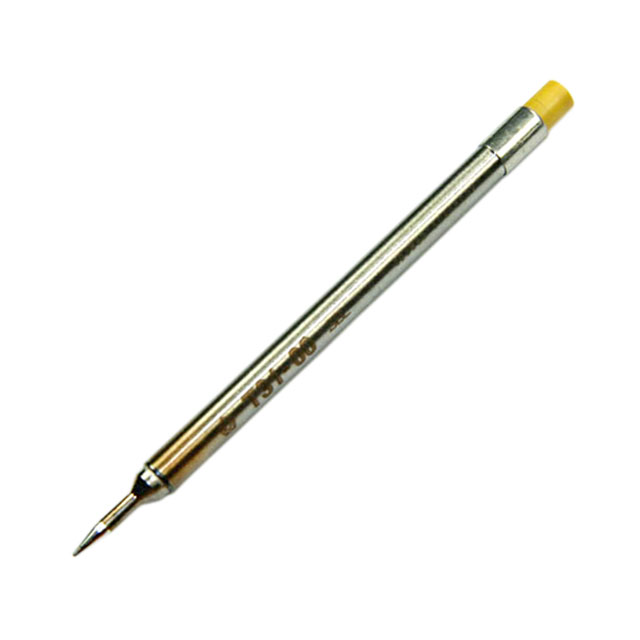

American Hakko Products, Inc. T31-00SBL	Conical	FX-100 FX1001	480 °C	896 °F	Soldering									0.54 in	13.72 mm	0.2 mm	0.008 in

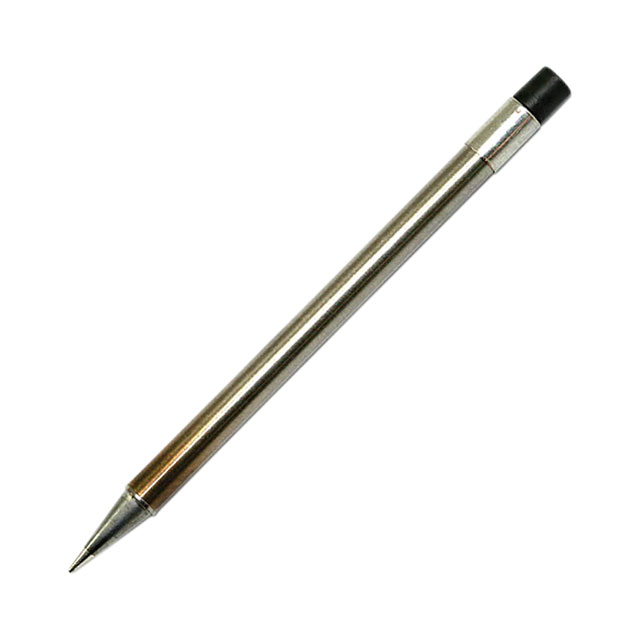

American Hakko Products, Inc. T31-03BL	Conical	FX-100 FX1001	350 °C	662 °F	Soldering									0.47 in	11.94 mm	0.2 mm	0.008 in

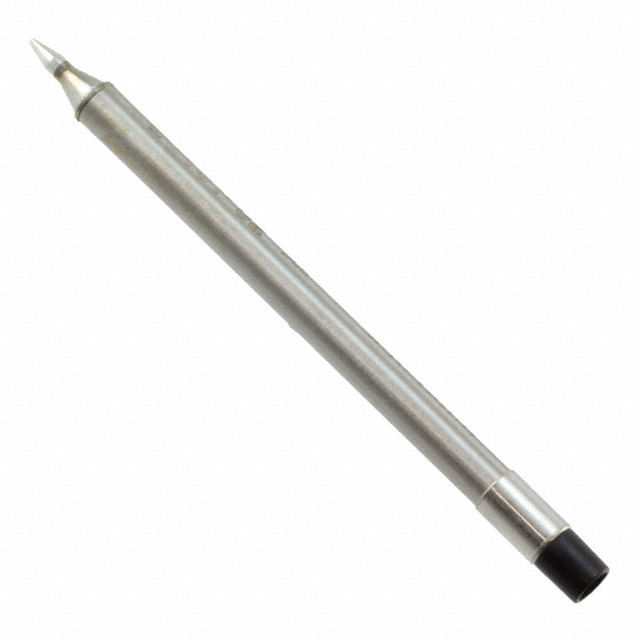

American Hakko Products, Inc. T31-02D08	Chisel	FX-100 FX1001	400 °C	752 °F	Soldering									0.35 in	8.89 mm			0.76 mm	0.03 in	0.02 in	0.5 mm

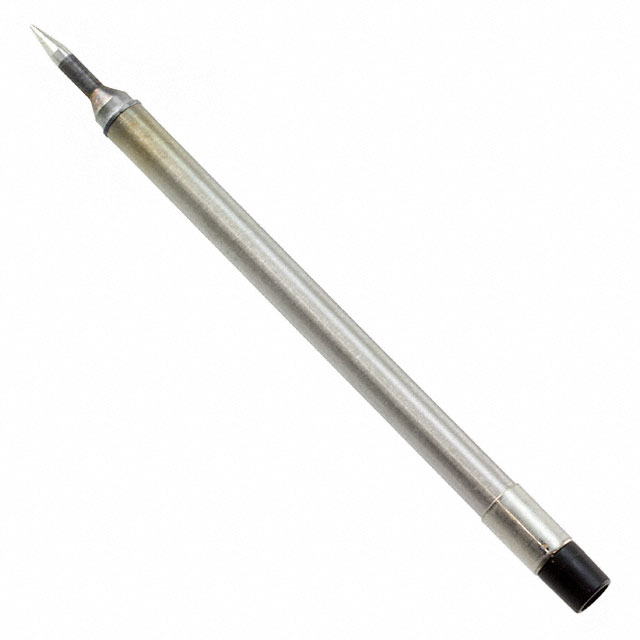

American Hakko Products, Inc. T31-02SBL	Conical	FX-100 FX1001	400 °C	752 °F	Soldering									0.54 in	13.72 mm	0.2 mm	0.008 in

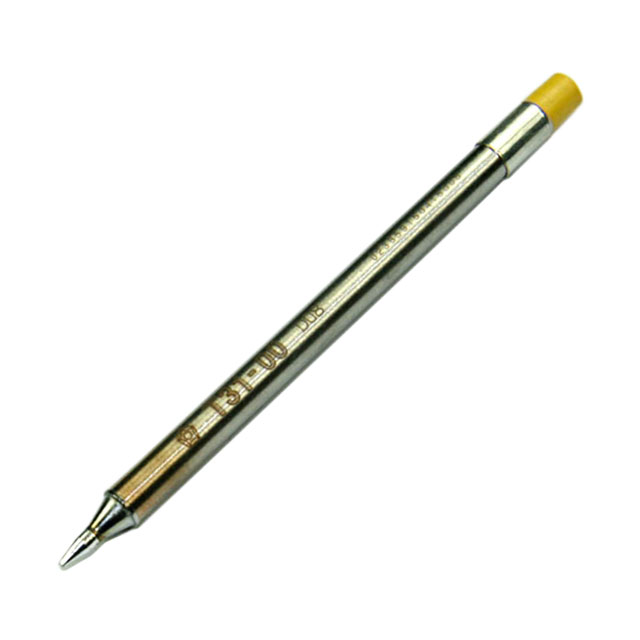

American Hakko Products, Inc. T31-00D08	Chisel	FX-100 FX1001	480 °C	896 °F	Soldering									0.35 in	8.89 mm			0.76 mm	0.03 in	0.02 in	0.5 mm

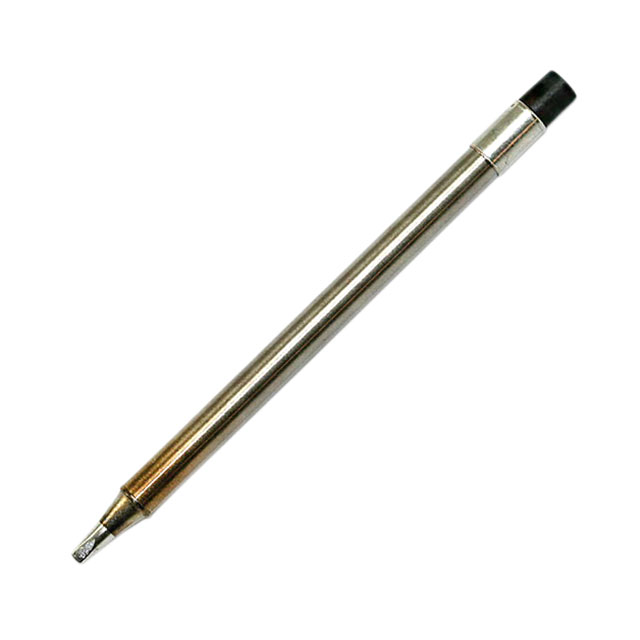

American Hakko Products, Inc. T31-03D16	Chisel	FX-100 FX1001	350 °C	662 °F	Soldering							1.52 mm	0.06 in	0.39 "	9.91 mm					0.02 in	0.5 mm

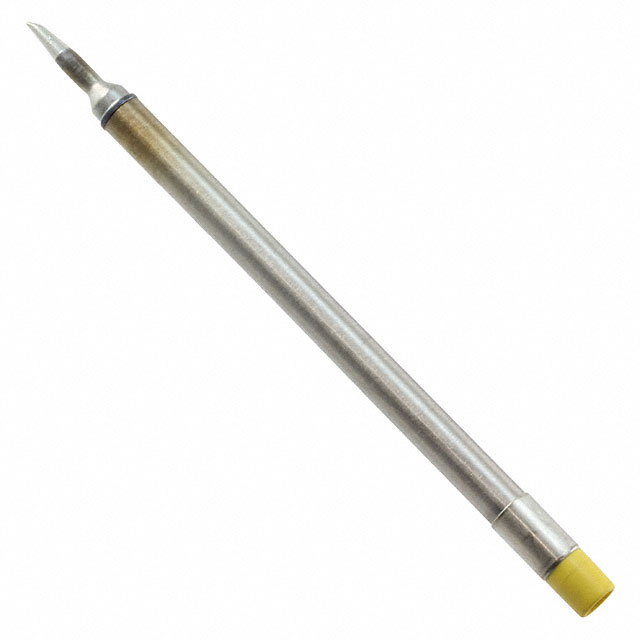

American Hakko Products, Inc. T31-00BC1	Bevel 60°	FX-100 FX1001	480 °C	896 °F	Soldering	0.05 in	1.28 mm			14.22 mm	0.56 in	1.02 mm	0.04 in

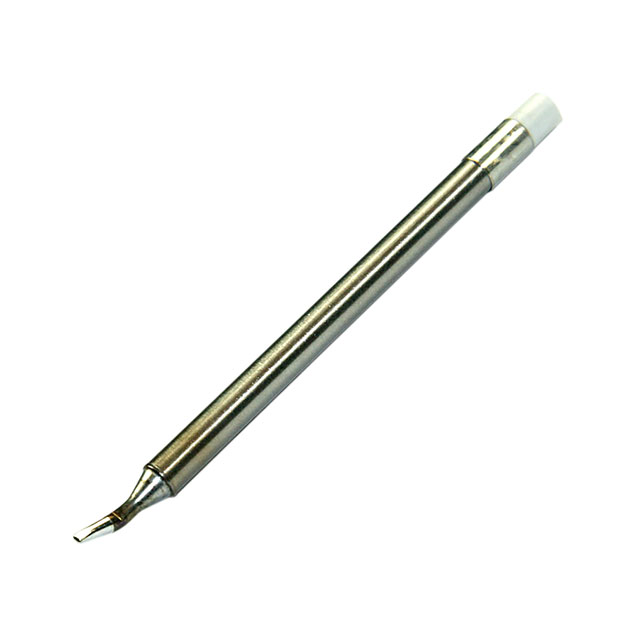

American Hakko Products, Inc. T31-03JD14	Chisel Bent 30°	FX-100 FX1001	350 °C	662 °F	Soldering	0.08 in	2.03 mm					1.52 mm	0.06 in			0.25 mm	0.01 in
