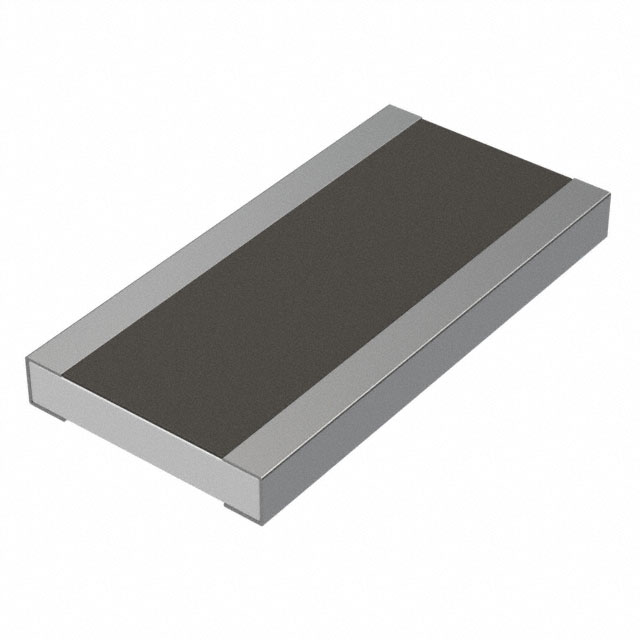

WK73R2H Series
Manufacturer: KOA Speer Electronics, Inc.
Catalog
FIXED RESISTOR, METAL GLAZE/THICK FILM, 1W, 20000OHM, 200V, 5% +/-TOL, 100PPM/CEL, SURFACE MOUNT, 1020, CHIP, ROHS COMPLIANT
...
| Part | Features | Number of Terminations | Resistance | Temperature Coefficient | Power (Watts) | Package / Case | Ratings | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Composition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KOA Speer Electronics, Inc. | Automotive AEC-Q200 Moisture Resistant | 2 | 20 kOhms | 100 ppm/°C | 1 W | 1020 Wide 2010 (5025 Metric) | AEC-Q200 | 5 % | 0.7 mm | 0.028 in | 155 °C | -55 °C | 0.197 " | 5 mm | 0.098 " | 2.5 mm | Thick Film |
KOA Speer Electronics, Inc. | Automotive AEC-Q200 Moisture Resistant | 2 | 102 Ohms | 100 ppm/°C | 1 W | 1020 Wide 2010 (5025 Metric) | AEC-Q200 | 1 % | 0.7 mm | 0.028 in | 155 °C | -55 °C | 0.197 " | 5 mm | 0.098 " | 2.5 mm | Thick Film |
KOA Speer Electronics, Inc. | Automotive AEC-Q200 Moisture Resistant | 2 | 18.2 Ohms | 100 ppm/°C | 1 W | 1020 Wide 2010 (5025 Metric) | AEC-Q200 | 1 % | 0.7 mm | 0.028 in | 155 °C | -55 °C | 0.197 " | 5 mm | 0.098 " | 2.5 mm | Thick Film |
KOA Speer Electronics, Inc. | Automotive AEC-Q200 Moisture Resistant | 2 | 37.4 Ohms | 100 ppm/°C | 1 W | 1020 Wide 2010 (5025 Metric) | AEC-Q200 | 1 % | 0.7 mm | 0.028 in | 155 °C | -55 °C | 0.197 " | 5 mm | 0.098 " | 2.5 mm | Thick Film |
KOA Speer Electronics, Inc. | Automotive AEC-Q200 Moisture Resistant | 2 | 75 Ohms | 100 ppm/°C | 1 W | 1020 Wide 2010 (5025 Metric) | AEC-Q200 | 5 % | 0.7 mm | 0.028 in | 155 °C | -55 °C | 0.197 " | 5 mm | 0.098 " | 2.5 mm | Thick Film |
KOA Speer Electronics, Inc. | Automotive AEC-Q200 Moisture Resistant | 2 | 499 kOhms | 200 ppm/°C | 1 W | 1020 Wide 2010 (5025 Metric) | AEC-Q200 | 1 % | 0.7 mm | 0.028 in | 155 °C | -55 °C | 0.197 " | 5 mm | 0.098 " | 2.5 mm | Thick Film |
KOA Speer Electronics, Inc. | Automotive AEC-Q200 Moisture Resistant | 2 | 560 Ohms | 100 ppm/°C | 1 W | 1020 Wide 2010 (5025 Metric) | AEC-Q200 | 5 % | 0.7 mm | 0.028 in | 155 °C | -55 °C | 0.197 " | 5 mm | 0.098 " | 2.5 mm | Thick Film |
KOA Speer Electronics, Inc. | Automotive AEC-Q200 Moisture Resistant | 2 | 523 Ohms | 100 ppm/°C | 1 W | 1020 Wide 2010 (5025 Metric) | AEC-Q200 | 1 % | 0.7 mm | 0.028 in | 155 °C | -55 °C | 0.197 " | 5 mm | 0.098 " | 2.5 mm | Thick Film |
KOA Speer Electronics, Inc. | Automotive AEC-Q200 Moisture Resistant | 2 | 1.2 kOhms | 100 ppm/°C | 1 W | 1020 Wide 2010 (5025 Metric) | AEC-Q200 | 5 % | 0.7 mm | 0.028 in | 155 °C | -55 °C | 0.197 " | 5 mm | 0.098 " | 2.5 mm | Thick Film |
KOA Speer Electronics, Inc. | Automotive AEC-Q200 Moisture Resistant | 2 | 2.7 kOhms | 100 ppm/°C | 1 W | 1020 Wide 2010 (5025 Metric) | AEC-Q200 | 5 % | 0.7 mm | 0.028 in | 155 °C | -55 °C | 0.197 " | 5 mm | 0.098 " | 2.5 mm | Thick Film |
