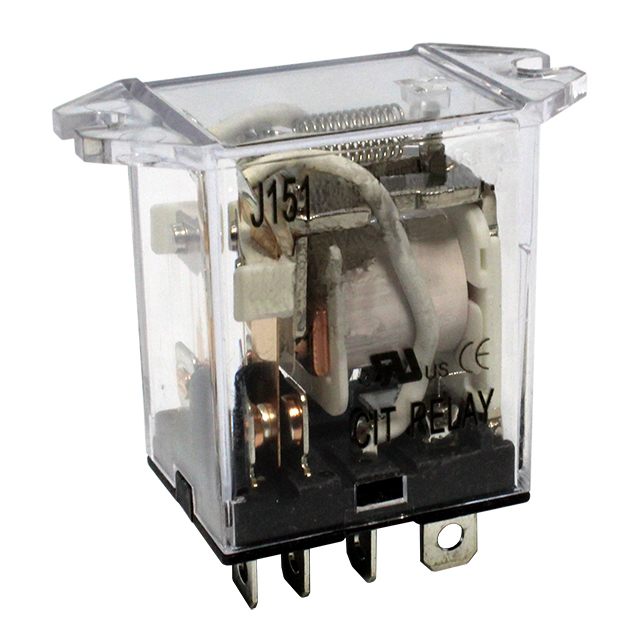

J1512A Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE DPST 20A 24V
| Part | Coil Resistance | Contact Material | Switching Voltage [Max] | Must Operate Voltage | Relay Type | Coil Type | Operate Time | Load - Max Switching | Termination Style | Coil Voltage | Contact Rating (Current) | Must Release Voltage | Release Time | Coil Current | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 184 Ohms | Silver Cadmium Oxide (AgCdO) | 300 VAC | 19.2 VAC | General Purpose | Non Latching | 25 ms | 6000 VA | Plug In | 24 VAC | 12 A | 7.2 VAC | 25 ms | 130.4 mA | DPST-NO (2 Form A) | 85 °C | -40 C | Lighted Indicator | Chassis Mount |
CIT Relay and Switch | 184 Ohms | Silver Cadmium Oxide (AgCdO) | 300 VAC | 19.2 VAC | General Purpose | Non Latching | 25 ms | 6000 VA | Plug In | 24 VAC | 12 A | 7.2 VAC | 25 ms | 130.4 mA | DPST-NO (2 Form A) | 85 °C | -40 C | Chassis Mount | |
CIT Relay and Switch | 160 Ohms | Silver Cadmium Oxide (AgCdO) | 300 VAC | 9 VDC | General Purpose | Non Latching | 25 ms | 6000 VA | Plug In | 12 VDC | 12 A | 1.2 VDC | 25 ms | 0.075 A | DPST-NO (2 Form A) | 85 °C | -40 C | Lighted Indicator | Chassis Mount |
CIT Relay and Switch | 160 Ohms | Silver Cadmium Oxide (AgCdO) | 300 VAC | 9 VDC | General Purpose | Non Latching | 25 ms | 6000 VA | Plug In | 12 VDC | 12 A | 1.2 VDC | 25 ms | 0.075 A | DPST-NO (2 Form A) | 85 °C | -40 C | Chassis Mount |
