LS1020 Series

Catalog

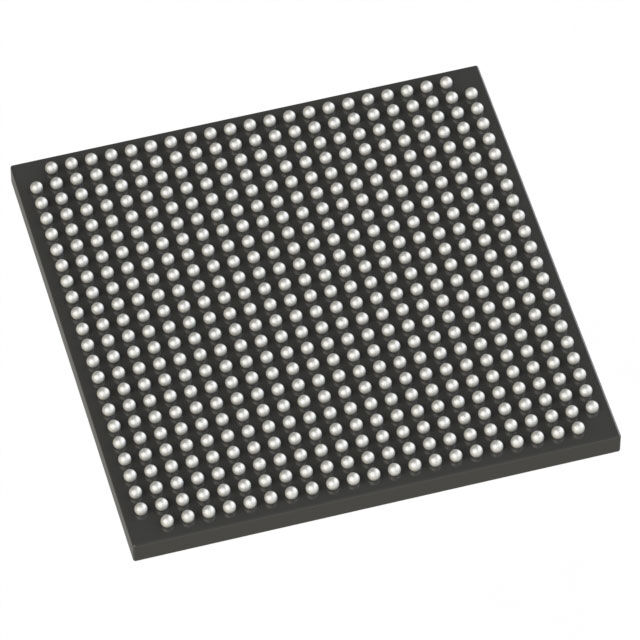

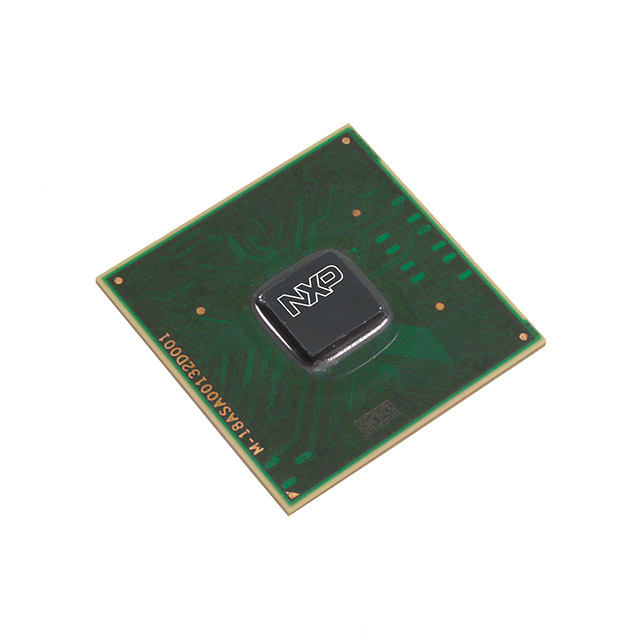

IC MPU QORIQ 1.2GHZ 525FCPBGA

Part	Security Features	SATA	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Supplier Device Package	Co-Processors/DSP	Mounting Type	Core Processor	Operating Temperature [Min]	Operating Temperature [Max]	Speed	USB	Ethernet
Freescale Semiconductor - NXP LS1020AXE7MQB	Secure Boot TrustZone®	3 Gbps	32 Bit	2	525-FCPBGA (19x19)	Multimedia NEON™ SIMD	Surface Mount	ARM® Cortex®-A7	-40 °C	105 ░C	1.2 GHz	USB 2.0 (1) USB 3.0 + PHY	GbE (3)
Freescale Semiconductor - NXP LS1020AXE7HNB	Secure Boot TrustZone®	3 Gbps	32 Bit	2	525-FCPBGA (19x19)	Multimedia NEON™ SIMD	Surface Mount	ARM® Cortex®-A7	-40 °C	105 ░C	800 MHz	USB 2.0 (1) USB 3.0 + PHY	GbE (3)
Freescale Semiconductor - NXP LS1020AXN7MQB	Secure Boot TrustZone®	3 Gbps	32 Bit	2	525-FCPBGA (19x19)	Multimedia NEON™ SIMD	Surface Mount	ARM® Cortex®-A7	-40 °C	105 ░C	1.2 GHz	USB 2.0 (1) USB 3.0 + PHY	GbE (3)
Freescale Semiconductor - NXP LS1020AXN7KQB	Secure Boot TrustZone®	3 Gbps	32 Bit	2	525-FCPBGA (19x19)	Multimedia NEON™ SIMD	Surface Mount	ARM® Cortex®-A7	-40 °C	105 ░C	1 GHz	USB 2.0 (1) USB 3.0 + PHY	GbE (3)
Freescale Semiconductor - NXP LS1020AXN7HNB	Secure Boot TrustZone®	3 Gbps	32 Bit	2	525-FCPBGA (19x19)	Multimedia NEON™ SIMD	Surface Mount	ARM® Cortex®-A7	-40 °C	105 ░C	800 MHz	USB 2.0 (1) USB 3.0 + PHY	GbE (3)
