PKU351 Series

Catalog

DC DC CONVERTER 12V 50W

Part	Efficiency	Features	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Isolation	Control Features	Type	Applications	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Supplier Device Package	Power (Watts)	Voltage - Output 1	Current - Output (Max) [Max]	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Flex Power Modules PKU3513SPI	88 %	Adjustable Output Remote On/Off Remote Sense	CB CSA IEC TUV UL	9 V	2250 VDC	Active Low Enable	Isolated Module	ITE (Commercial)	36 V	Through Hole	Sixteenth Brick	-40 °C	100 °C	1	Sixteenth Brick	50 W	12 V	4.2 A	62368-1	1.39 in	0.41 in	10.4 mm	0.98 in	35.3 mm	25 mm
Flex Power Modules PKU3511SPI	90 %	Adjustable Output Remote On/Off Remote Sense	CB CSA IEC TUV UL	9 V	2250 VDC	Active Low Enable	Isolated Module	ITE (Commercial)	36 V	Through Hole	Sixteenth Brick	-40 °C	100 °C	1	Sixteenth Brick	50 W	5 V	10 A	62368-1	1.39 in	0.41 in	10.4 mm	0.98 in	35.3 mm	25 mm

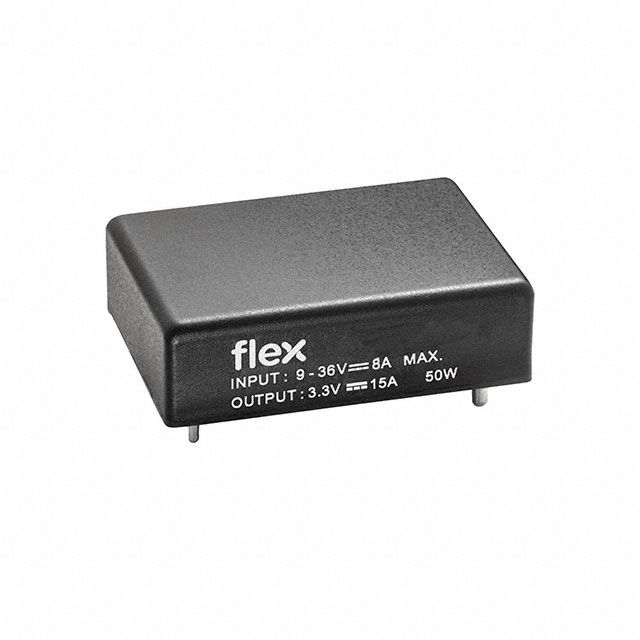

Flex Power Modules PKU3510SPI	90 %	Adjustable Output Remote On/Off Remote Sense	CB CSA IEC TUV UL	9 V	2250 VDC	Active Low Enable	Isolated Module	ITE (Commercial)	36 V	Through Hole	Sixteenth Brick	-40 °C	100 °C	1	Sixteenth Brick	50 W	3.3 V	15 A	62368-1	1.39 in	0.41 in	10.4 mm	0.98 in	35.3 mm	25 mm
Flex Power Modules PKU3515SPI	89 %	Adjustable Output Remote On/Off Remote Sense	CB CSA IEC TUV UL	9 V	2250 VDC	Active Low Enable	Isolated Module	ITE (Commercial)	36 V	Through Hole	Sixteenth Brick	-40 °C	100 °C	1	Sixteenth Brick	51 W	15 V	3.4 A	62368-1	1.39 in	0.41 in	10.4 mm	0.98 in	35.3 mm	25 mm
Flex Power Modules PKU3516ZSPI	91 %	Adjustable Output Remote On/Off Remote Sense	CB CSA IEC TUV UL	9 V	2250 VDC	Active Low Enable	Isolated Module	ITE (Commercial)	36 V	Through Hole	Sixteenth Brick	-40 °C	100 °C	1	Sixteenth Brick	50 W	24 V	2.1 A	62368-1	1.39 in	0.41 in	10.4 mm	0.98 in	35.3 mm	25 mm
