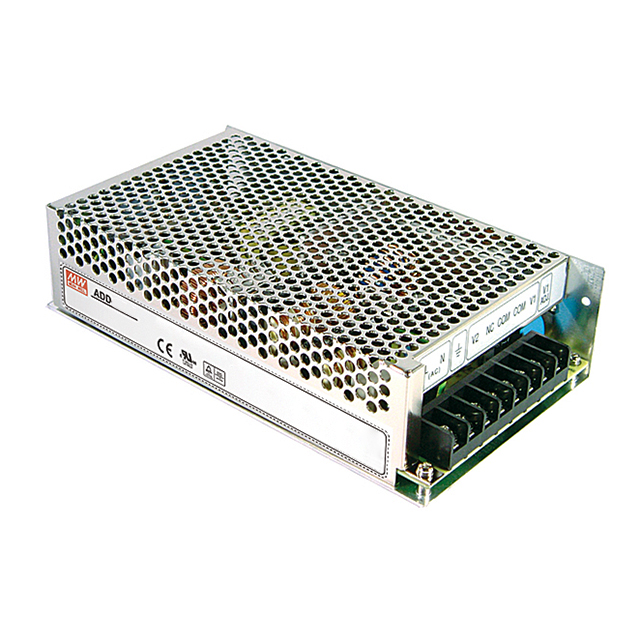

ADD-155 Series

Catalog

AC/DC CNVRTR 54V 5V 53.5V 150W

Part	Current - Output 3	Current - Output 2	Features	Applications	Number of Outputs	Current - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Power (Watts)	Voltage - Output 1	Approval Agency	Mounting Type	Type	Efficiency	Voltage - Output 3	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 2	Voltage - Output 1 [custom]
MEAN WELL USA Inc. ADD-155C	200 mA	3 A	Adjustable Output PFC Universal Input	ITE (Commercial)	3	2.3 A	50 mm	199 mm	110 mm	1.97 "	7.83 in	4.33 "	3000 V	150 W	54 V	CB CE cURus TUV	Chassis Mount	Enclosed	81 %	53.5 V	-10 °C	60 °C	264 VAC 370 VDC	88 VAC 124 VDC	5 V
MEAN WELL USA Inc. ADD-155A	500 mA	3 A	Adjustable Output PFC Universal Input	ITE (Commercial)	3	9.5 A	50 mm	199 mm	110 mm	1.97 "	7.83 in	4.33 "	3000 V	153 W		CB CE cURus TUV	Chassis Mount	Enclosed	78 %	13.3 V	-10 °C	60 °C	264 VAC 370 VDC	88 VAC 124 VDC	5 V	13.8 V
MEAN WELL USA Inc. ADD-155B	500 mA	3 A	Adjustable Output PFC Universal Input	ITE (Commercial)	3	4.5 A	50 mm	199 mm	110 mm	1.97 "	7.83 in	4.33 "	3000 V	153 W	27.6 V	CB CE cURus TUV	Chassis Mount	Enclosed	81 %	27.1 V	-10 °C	60 °C	264 VAC 370 VDC	88 VAC 124 VDC	5 V
