RPI USB Series

Catalog

AC/DC WALL MNT ADAPTER 5.1V 15W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Form	Power (Watts)	Output Connector	No Load Power Consumption [Max]	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Cord Length	Cord Length	Input Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Mounting Type	Convert To (Adapter End)	Convert From (Adapter End)

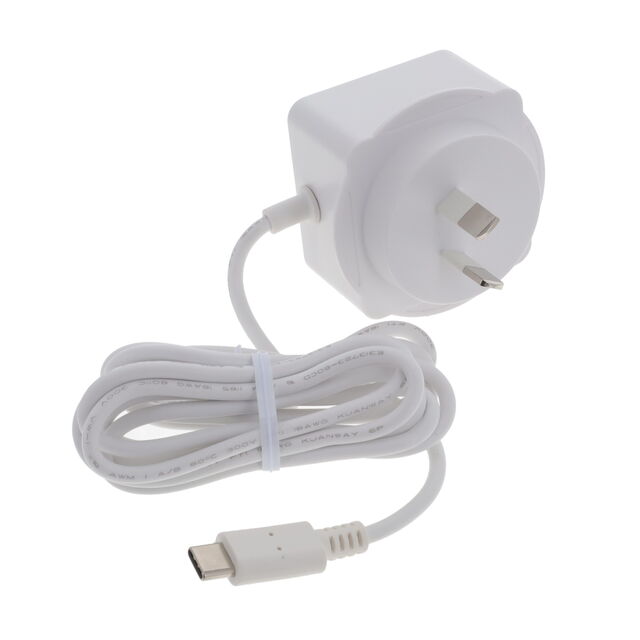

Raspberry Pi SC0523	90 VAC	264 VAC	Fixed Blade	Wall Mount (Class II)	15 W	USB C	75 mW	5.1 V	40 °C	0 °C	Australia	1.5 m	59 in	AS 3112	45 mm	1.77 "	1.4 "	1.77 in	45 mm	35.6 mm	3 A

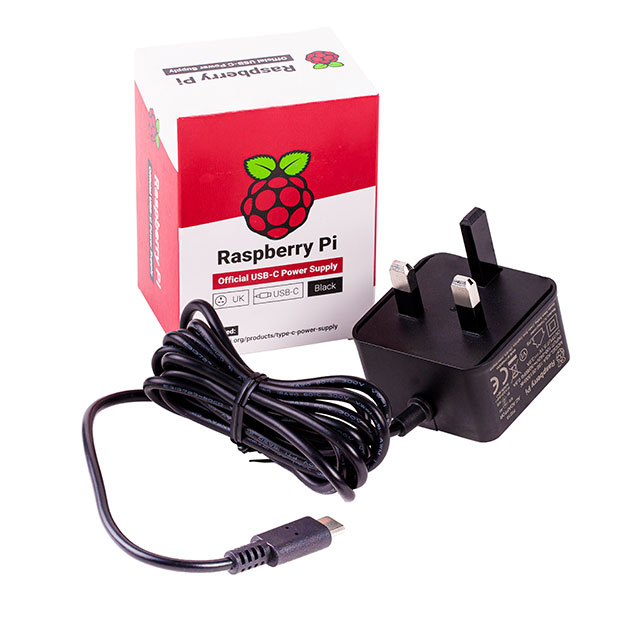

Raspberry Pi SC0216	90 VAC	264 VAC	Fixed Blade	Wall Mount (Class II)	15 W	USB C	75 mW	5.1 V	40 °C	0 °C	United Kingdom	1.5 m	59 in	BS 1363	48 mm	1.77 "	1.06 in	1.89 in	45 mm	27 mm	3 A

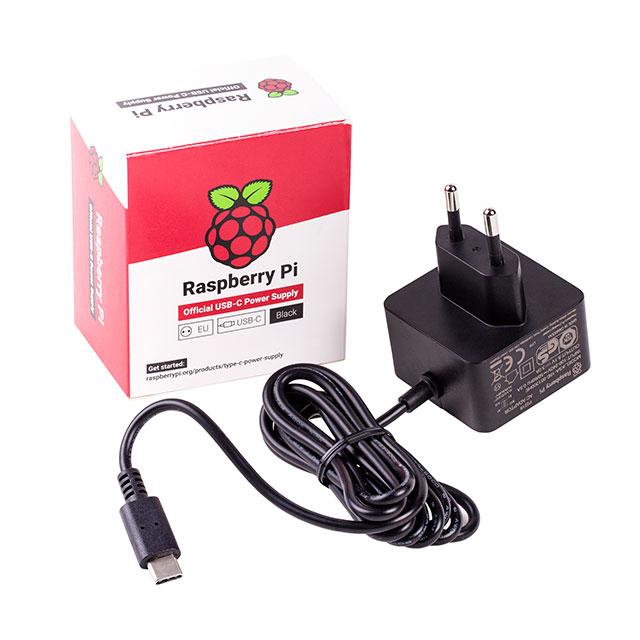

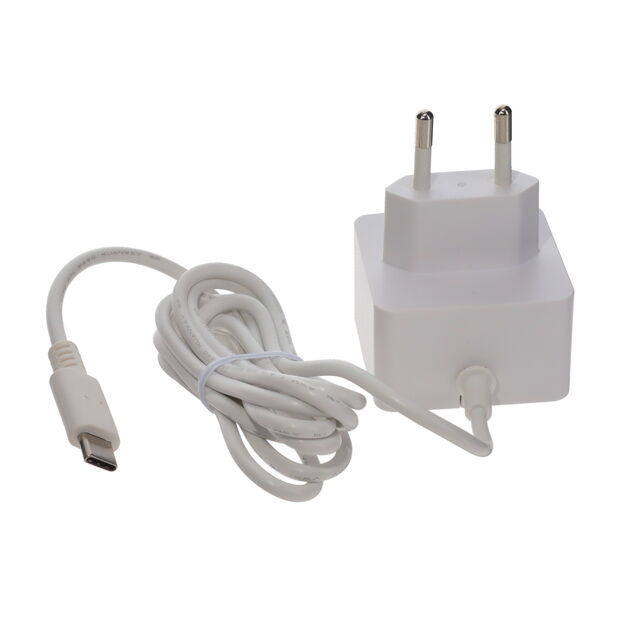

Raspberry Pi SC0753	90 VAC	264 VAC	Fixed Blade	Wall Mount (Class II)	15 W	USB C	75 mW	5.1 V	40 °C	0 °C	Europe	1.5 m	59 in	KSC 8305	45 mm	1.77 "	1.77 in	1.77 in	45 mm	45 mm	3 A
Raspberry Pi SC0221																						Free Hanging (In-Line)	USB-C (USB TYPE-C)	USB - Micro B

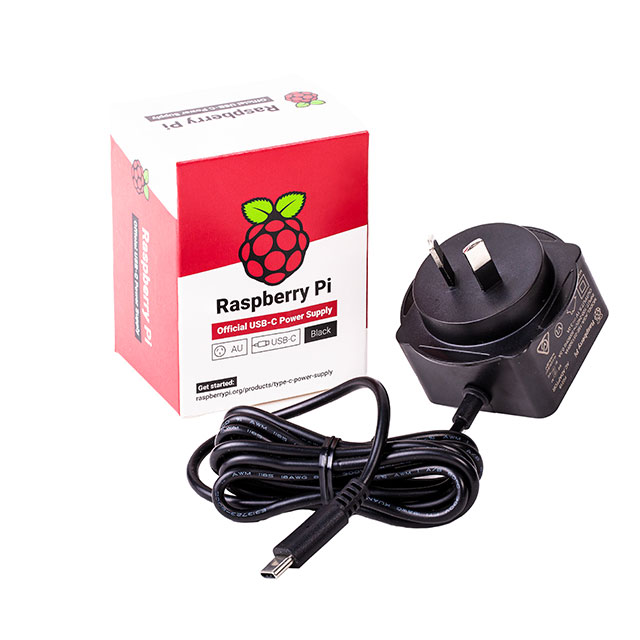

Raspberry Pi SC0219	90 VAC	264 VAC	Fixed Blade	Wall Mount (Class II)	15 W	USB C	75 mW	5.1 V	40 °C	0 °C	Australia	1.5 m	59 in	AS 3112	45 mm	1.77 "	1.4 "	1.77 in	45 mm	35.6 mm	3 A

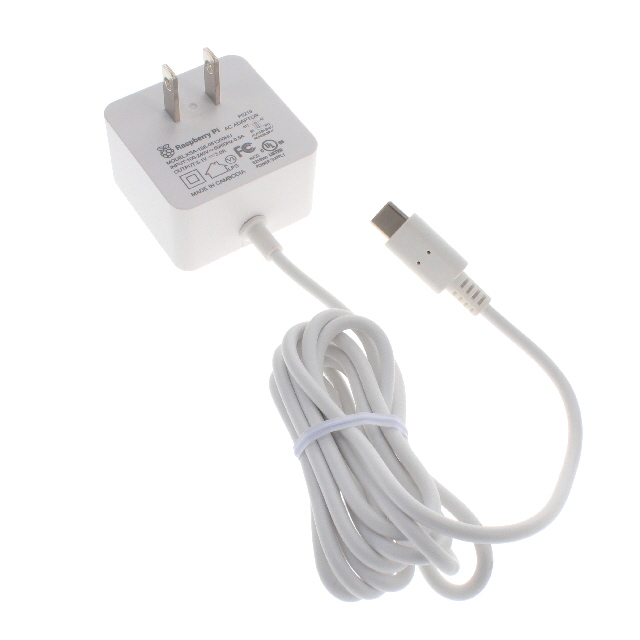

Raspberry Pi SC0218	90 VAC	264 VAC	Fixed Blade	Wall Mount (Class II)	15 W	USB C	75 mW	5.1 V	40 °C	0 °C	North America	1.5 m	59 in	NEMA 1-15P	45 mm	1.77 "	1.06 in	1.77 in	45 mm	27 mm	3 A
Raspberry Pi SC1412	90 VAC	264 VAC	Fixed Blade	Wall Mount (Class II)	15 W	USB C	75 mW	5.1 V	40 °C	0 °C	Europe	1.5 m	59 in	KSC 8305	45 mm	1.77 "	1.77 in	1.77 in	45 mm	45 mm	3 A

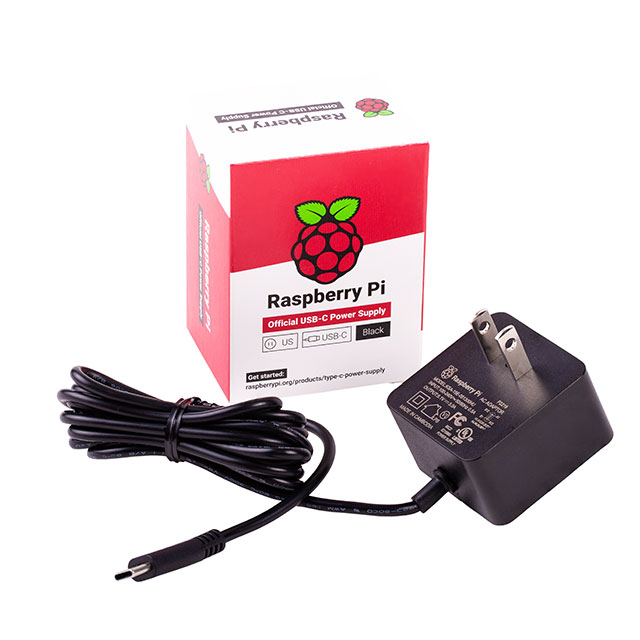

Raspberry Pi SC0445	90 VAC	264 VAC	Fixed Blade	Wall Mount (Class II)	15 W	USB C	75 mW	5.1 V	40 °C	0 °C	North America	1.5 m	59 in	NEMA 1-15P	45 mm	1.77 "	1.06 in	1.77 in	45 mm	27 mm	3 A
