GW6D Series

Catalog

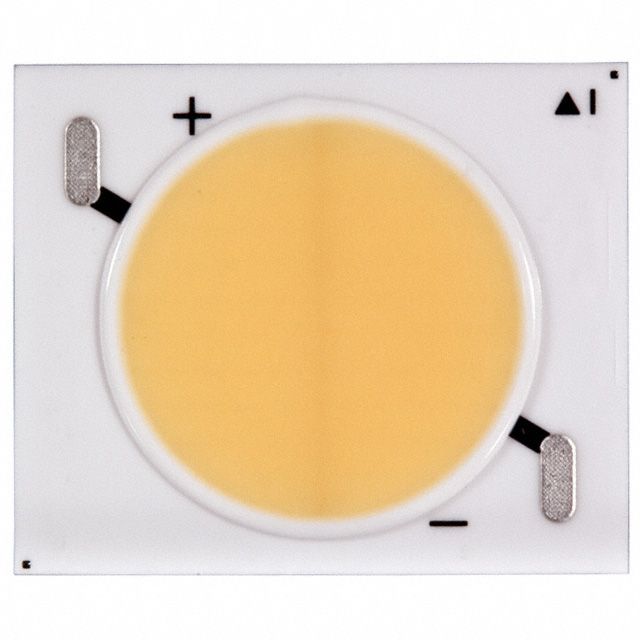

LED COB MEGA ZENIGATA RECT

Part	Voltage - Forward (Vf) (Typ)	Current - Test	Color	CRI (Color Rendering Index)	Type	CCT (K)	Height	Configuration	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Lens Type
Sharp Microelectronics GW6DMD27NFC	37 V	950 mA	Warm White	80	Chip On Board (COB)	2700 K	1.8 mm	Rectangle	24 mm	20 mm	1.3 A	Flat
Sharp Microelectronics GW6DGE30NFC	50 V	950 mA	Warm White	90	Chip On Board (COB)	3000 K	1.8 mm	Rectangle	24 mm	20 mm	1.5 A	Flat
Sharp Microelectronics GW6DMD40NFC	37 V	950 mA	Neutral White	80	Chip On Board (COB)	4000 K	1.8 mm	Rectangle	24 mm	20 mm	1.3 A	Flat
Sharp Microelectronics GW6DGD50NFC	37 V	950 mA	Neutral White		Chip On Board (COB)	5000 K	1.8 mm	Rectangle	24 mm	20 mm	1.3 A	Flat
Sharp Microelectronics GW6DGA27NFC	37 V	400 mA	Warm White	90	Chip On Board (COB)	2700 K	1.8 mm	Rectangle	24 mm	20 mm	700 mA	Flat
Sharp Microelectronics GW6DMD30NFC	37 V	950 mA	Warm White	80	Chip On Board (COB)	3000 K	1.8 mm	Rectangle	24 mm	20 mm	1.3 A	Flat
