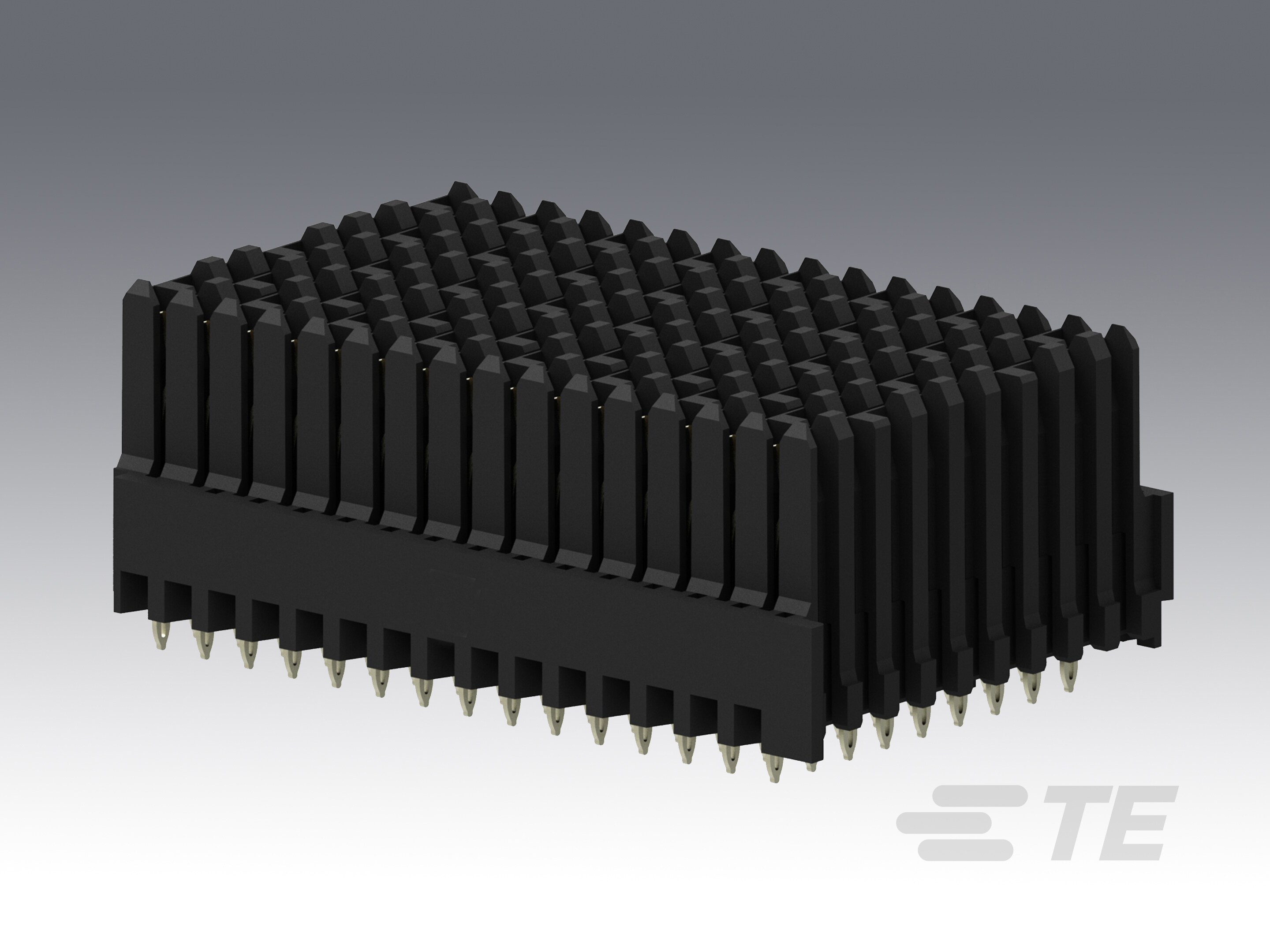

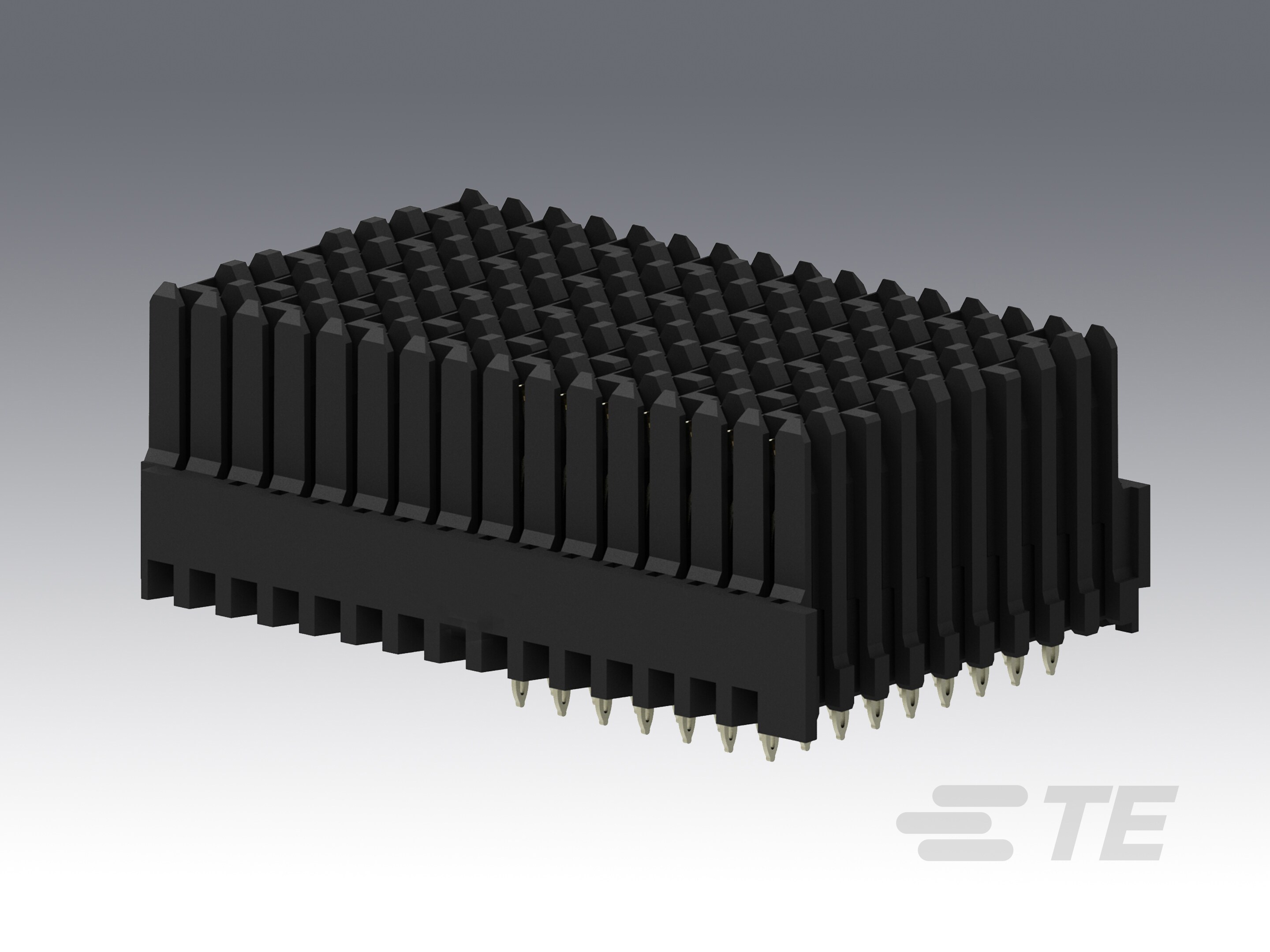

MULTIGIG RT 2 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN PLUG VITA46 56POS EDGE MNT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Material Flammability Rating	Connector Type	Color	Number of Positions Loaded	Termination	Pitch	Pitch	Connector Usage	Number of Columns	Number of Positions	Mounting Type	Contact Finish	Number of Rows [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish Thickness	Contact Finish Thickness	Features	Connector Style	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Rows	Number of Positions Loaded	Contact Layout, Typical	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]

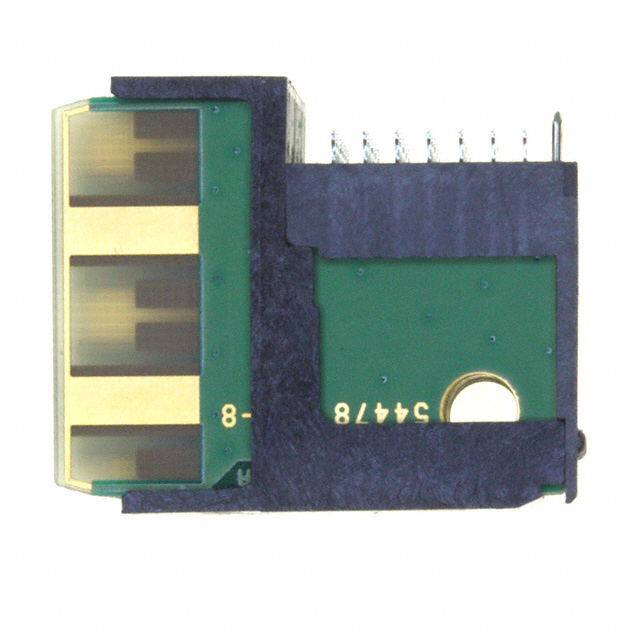

TE Connectivity AMP Connectors 1410971-3	-55 C	105 ░C	50 V	UL94 V-0	Plug Male Blades	Black	All	Press-Fit	1.8 mm	0.071 in	Daughtercard	8	56	Board Edge Right Angle Through Hole	Gold	7	16 Signal Pairs	4 Single Signal	20 Ground	50 µin	1.27 µm	Board Guide	VITA 46 Half Left End
TE Connectivity AMP Connectors 1410147-1	-55 C	105 ░C		UL94 V-0	Plug Male Blades	Black	All	Solder	1.8 mm	0.071 in	Daughtercard	15	105	Board Edge Right Angle Through Hole	Gold	7				30 Áin	0.76 Ám	Board Guide	VITA 41 Center	37	8	30
TE Connectivity AMP Connectors 1410135-2	-55 C	105 ░C		UL94 V-0	Receptacle Female Blade Sockets	Black	All	Press-Fit	1.8 mm	0.071 in	Backplane	15	135	Through Hole	Gold					50 µin	1.27 µm		VITA 41 Center				9
TE Connectivity AMP Connectors 1410965-1					Receptacle Female Blade Sockets	Black	All	Press-Fit	1.8 mm	0.071 in	Backplane	16	144	Through Hole	Gold					50 µin	1.27 µm		VITA 46 Center				9
TE Connectivity AMP Connectors 1410326-3	-55 C	105 ░C	50 V	UL94 V-0	Plug Male Blades	Black		Solder	1.8 mm	0.071 in	Daughtercard	16	112	Board Edge Right Angle Through Hole	Gold	7				50 µin	1.27 µm		MULTIG Center					112	3 18 20 20 31
TE Connectivity AMP Connectors 1410125-1					Plug Male Blades	Black	All	Solder	1.8 mm	0.071 in	Daughtercard	16	256	Board Edge Right Angle Through Hole	Gold								MULTIGIG Full Right End				16		64 Signal Ground 128

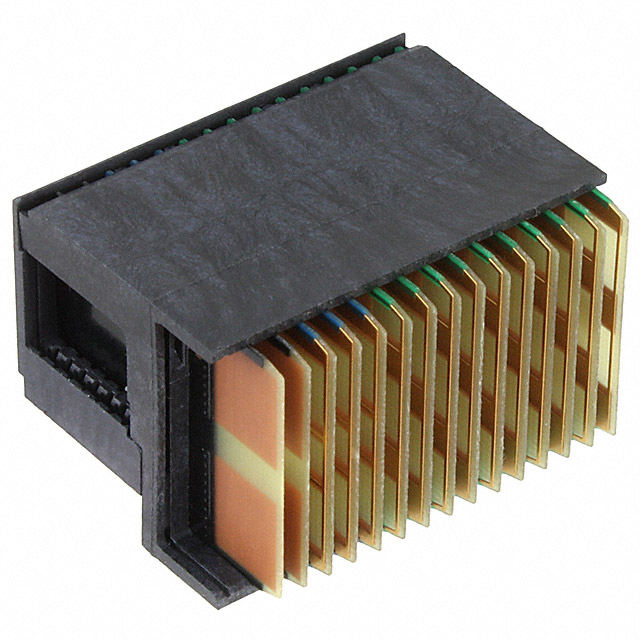

TE Connectivity AMP Connectors 1410968-3	-55 C	105 ░C	50 V	UL94 V-0	Plug Male Blades	Black		Press-Fit	1.8 mm	0.071 in	Daughtercard	16	112	Board Edge Right Angle Through Hole	Gold	7				50 µin	1.27 µm	Board Guide	VITA 46 Center	38		20		105		12	20	2
TE Connectivity AMP Connectors 1410132-1	-55 C	105 ░C	50 V	UL94 V-0	Plug Male Blades	Black	All	Solder	1.8 mm	0.071 in	Daughtercard	16	256	Board Edge Right Angle Through Hole	Gold								MULTIGIG Full Stand Alone				16
TE Connectivity AMP Connectors 1410187-3					Plug Male Blades	Black	All	Press-Fit	1.8 mm	0.071 in	Daughtercard	16	112	Board Edge Right Angle Through Hole	Gold	7				50 µin	1.27 µm	Board Guide	VITA 46 Center	40	8	32
TE Connectivity AMP Connectors 1410303-1	-55 C	105 ░C	50 V	UL94 V-0	Plug Male Blades	Black		Solder	1.8 mm	0.071 in	Daughtercard	15	49	Board Edge Right Angle Through Hole	Gold	7				30 Áin	0.76 Ám	Board Guide	VITA 41 Center	18	3	14
