9S1212 Series

Catalog

FAN AXIAL 120X25MM 12VDC WIRE

Part	Material - Blade	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Material - Frame	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Termination	Voltage - Rated	Bearing Type	Noise	Fan Type	Approval Agency	Features	RPM	Static Pressure	Static Pressure	Weight	Weight	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension	Size / Dimension [y]	Current Rating (Amps)	Static Pressure

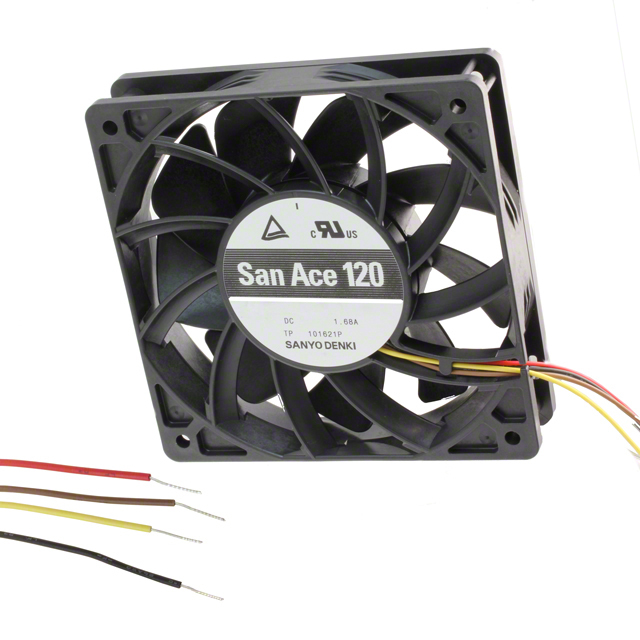

Sanyo Denki America Inc. 9S1212P4L011	Plastic	40000 Hrs	13.8 VDC	7 V	48.1 CFM	1.35 mł/min	Plastic	120 mm	120 mm	25 mm	4 Wire Leads	12 VDC	Ball	36 dB	Tubeaxial	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	1500 RPM	14.9 Pa	0.06 in H2O	0.309 lb	140.16 g	960 mW	70 °C	-10 °C
Sanyo Denki America Inc. 9S1212L401	Plastic	40000 Hrs	13.8 VDC	7 V	48.1 CFM	1.35 mł/min	Plastic		119 mm	25 mm	3 Wire Leads	12 VDC	Ball	17 dB	Tubeaxial	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	1500 RPM	14.9 Pa	0.06 in H2O	0.309 lb	140.16 g	960 mW	70 °C	-10 °C	Square	119 mm
Sanyo Denki America Inc. 9S1212L4D011	Plastic	40000 Hrs	13.8 VDC	7 V	48.1 CFM	1.35 mł/min	Plastic		119 mm	25 mm	3 Wire Leads	12 VDC	Ball	17 dB	Tubeaxial	CSA TUV UL	Locked Rotor Sensor	1500 RPM	14.9 Pa	0.06 in H2O	0.309 lb	140.16 g	960 mW	70 °C	-10 °C	Square	119 mm
Sanyo Denki America Inc. 9S1212L4011	Plastic	40000 Hrs	13.8 VDC	7 V	48.1 CFM	1.35 mł/min	Plastic		119 mm	25 mm	3 Wire Leads	12 VDC	Ball	17 dB	Tubeaxial	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	1500 RPM	14.9 Pa	0.06 in H2O	0.309 lb	140.16 g	960 mW	70 °C	-10 °C	Square	119 mm

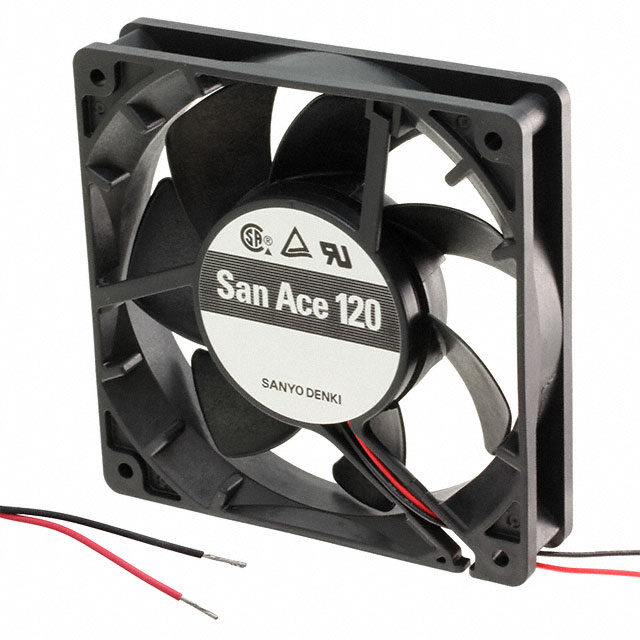

Sanyo Denki America Inc. 9S1212F402	Plastic	40000 Hrs	13.8 VDC	5 VDC	70.6 CFM	1.98 mł/min	Plastic		119 mm	25 mm	2 Wire Leads	12 VDC	Ball	30 dB	Tubeaxial	CSA TUV UL		2200 RPM	29.9 Pa		0.309 lb	140.16 g	2.28 W	70 °C	-10 °C	Square	119 mm	190 mA	0.12 in H2O
Sanyo Denki America Inc. 9S1212M4D011	Plastic	40000 Hrs	13.8 VDC	6 VDC	58.6 CFM	1.64 m³/min	Plastic		119 mm	25 mm	3 Wire Leads	12 VDC	Ball	24 dB	Tubeaxial	CSA TUV UL	Locked Rotor Sensor	1850 RPM	22.4 Pa		0.309 lb	140.16 g	1.56 W	70 °C	-10 °C	Square	119 mm		0.09 in H2O
Sanyo Denki America Inc. 9S1212M4011	Plastic	40000 Hrs	13.8 VDC	6 VDC	58.6 CFM	1.64 m³/min	Plastic		119 mm	25 mm	3 Wire Leads	12 VDC	Ball	24 dB	Tubeaxial	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	1850 RPM	22.4 Pa		0.309 lb	140.16 g	1.56 W	70 °C	-10 °C	Square	119 mm		0.09 in H2O
Sanyo Denki America Inc. 9S1212F4011	Plastic	40000 Hrs	13.8 VDC	5 VDC	70.6 CFM	1.98 mł/min	Plastic		119 mm	25 mm	3 Wire Leads	12 VDC	Ball	30 dB	Tubeaxial	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	2200 RPM	29.9 Pa		0.309 lb	140.16 g	2.28 W	70 °C	-10 °C	Square	119 mm	190 mA	0.12 in H2O
Sanyo Denki America Inc. 9S1212H402	Plastic	40000 Hrs	13.2 VDC	5 VDC	86.5 CFM	2.42 m³/min	Plastic		119 mm	25 mm	2 Wire Leads	12 VDC	Ball	36 dB	Tubeaxial	CSA TUV UL		2700 RPM	44.8 Pa		0.309 lb	140.16 g		60 °C	-10 °C	Square	119 mm	390 mA	0.18 in H2O

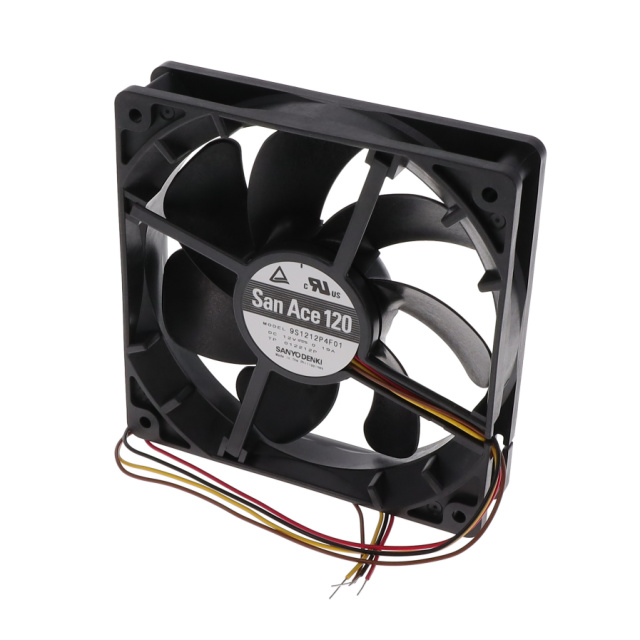

Sanyo Denki America Inc. 9S1212P4F011	Plastic	40000 Hrs	13.8 VDC	5 VDC	70.6 CFM	1.98 mł/min	Plastic		119 mm	25 mm	4 Wire Leads	12 VDC	Ball	30 dB	Tubeaxial	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	2200 RPM	29.9 Pa		0.309 lb	140.16 g	2.28 W	70 °C	-10 °C	Square	119 mm	190 mA	0.12 in H2O
