EFB1512 Series

Catalog

FAN AXIAL 172X50.8MM 12VDC WIRE

Part	Lifetime @ Temp.	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Operating Temperature [Max]	Operating Temperature [Min]	Termination	RPM	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Weight	Weight	Power (Watts)	Air Flow	Air Flow	Approval Agency	Width [y]	Bearing Type	Noise	Voltage - Rated	Static Pressure	Static Pressure	Ingress Protection
Delta Electronics EFB1512HG	80000 Hrs	1.35 A	Aluminum	8 V	14 V	Plastic	70 °C	-10 °C	2 Wire Leads	3350 RPM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	861.8 g	1.9 lbs	16.2 W	7.05 m³/min	251.8 CFM	CE CSA UL VDE	50.8 mm	Ball	55 dB(A)	12 VDC	0.689 in H2O	171.6 Pa

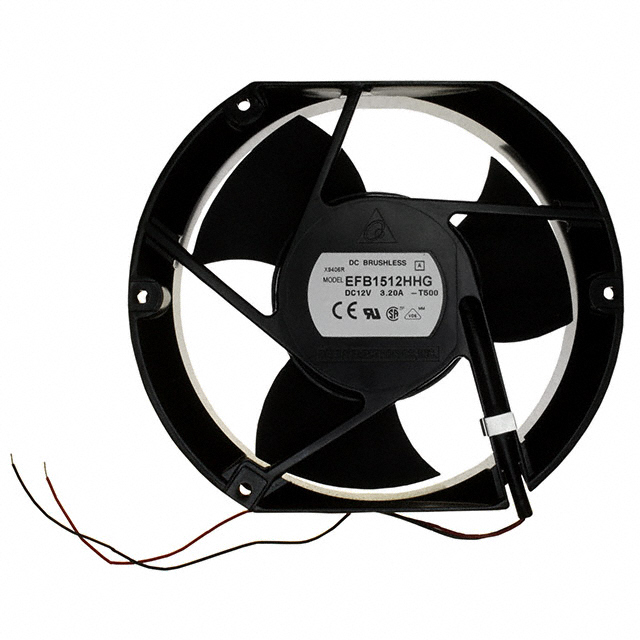

Delta Electronics EFB1512HHG-T500	80000 Hrs	1.79 A	Aluminum	8 V	14 V	Plastic	70 °C	-10 °C	2 Wire Leads	3700 RPM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	861.8 g	1.9 lbs	21.48 W	7.83 m³/min	279.7 CFM	CE CSA UL VDE	50.8 mm	Ball	57.5 dB	12 VDC			IP55 - Dust Protected Water Resistant
