HFA30 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

DIODE ARRAY GP 600V 15A TO220-3

Part	Supplier Device Package	Package / Case	Current - Reverse Leakage @ Vr	Diode Configuration	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Technology	Qualification	Grade	Current - Average Rectified (Io)
Vishay General Semiconductor - Diodes Division VS-HFA30TA60CPBF	TO-220-3	TO-220-3	10 µA	1 Pair Common Cathode	Through Hole	150 °C	-55 °C	60 ns	600 V	200 mA 500 ns	15 A	1.7 V	Standard
Vishay General Semiconductor - Diodes Division HFA30TA60CS	TO-263AB (D2PAK)	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	10 µA	1 Pair Common Cathode	Surface Mount	150 °C	-55 °C	60 ns	600 V	200 mA 500 ns	15 A	1.7 V	Standard
Vishay General Semiconductor - Diodes Division HFA30TA60CSTRL	TO-263AB (D2PAK)	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	10 µA	1 Pair Common Cathode	Surface Mount	150 °C	-55 °C	60 ns	600 V	200 mA 500 ns	15 A	1.7 V	Standard
Vishay General Semiconductor - Diodes Division HFA30PA60C	TO-247AC	TO-247-3	10 µA	1 Pair Common Cathode	Through Hole	150 °C	-55 °C	60 ns	600 V	200 mA 500 ns	15 A	1.7 V	Standard
Vishay General Semiconductor - Diodes Division VS-HFA30TA60CHN3	TO-220-3	TO-220-3	10 µA	1 Pair Common Cathode	Through Hole	150 °C	-55 °C	19 ns	600 V	200 mA 500 ns	15 A	1.7 V	Standard	AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division VS-HFA30TA60C-M3	TO-220-3	TO-220-3	10 µA	1 Pair Common Cathode	Through Hole	150 °C	-55 °C	60 ns	600 V	200 mA 500 ns	15 A	2 V	Standard
Vishay General Semiconductor - Diodes Division HFA30TA60C	TO-220-3	TO-220-3	10 µA	1 Pair Common Cathode	Through Hole	150 °C	-55 °C	60 ns	600 V	200 mA 500 ns	15 A	1.7 V	Standard

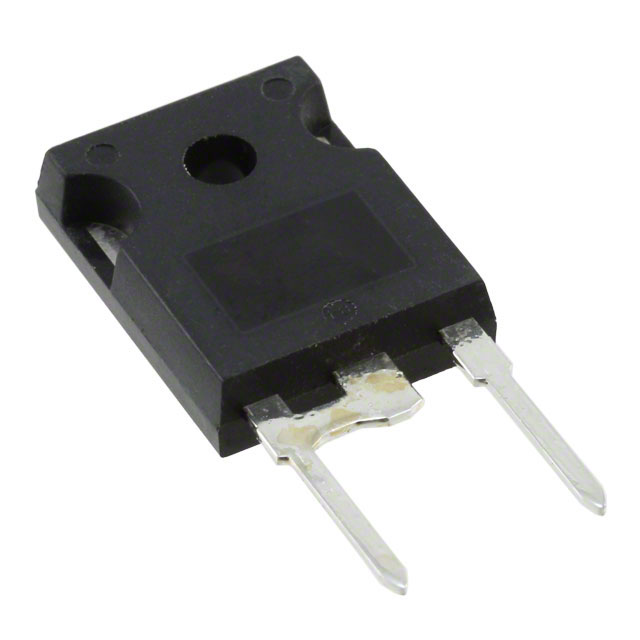

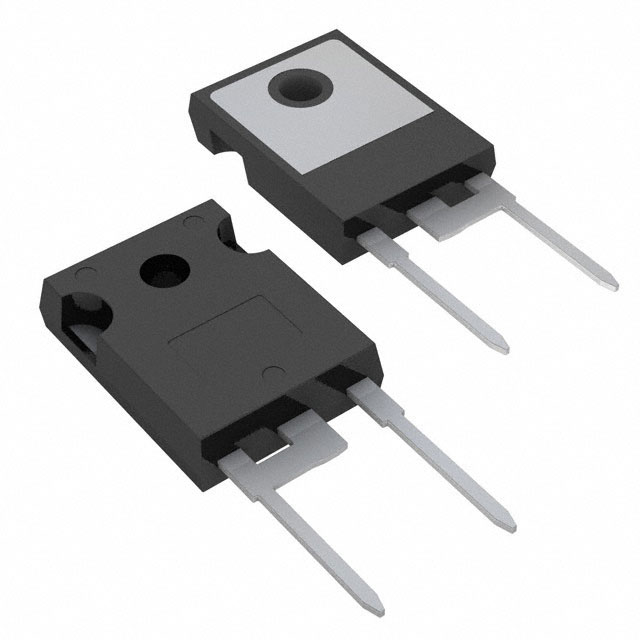

Vishay General Semiconductor - Diodes Division VS-HFA30PB120-N3	TO-247AC Modified	TO-247-2	40 µA		Through Hole	150 °C	-55 °C	170 ns	1.2 kV	200 mA 500 ns		4.1 V	Standard	AEC-Q101	Automotive	30 A
Vishay General Semiconductor - Diodes Division VS-HFA30PB120PBF	TO-247AC Modified	TO-247-2	40 µA		Through Hole	150 °C	-55 °C	170 ns	1.2 kV	200 mA 500 ns		4.1 V	Standard			30 A
Vishay General Semiconductor - Diodes Division VS-HFA30PB120HN3	TO-247AC Modified	TO-247-2	40 µA		Through Hole	150 °C	-55 °C	170 ns	1.2 kV	200 mA 500 ns		4.1 V	Standard	AEC-Q101	Automotive	30 A
