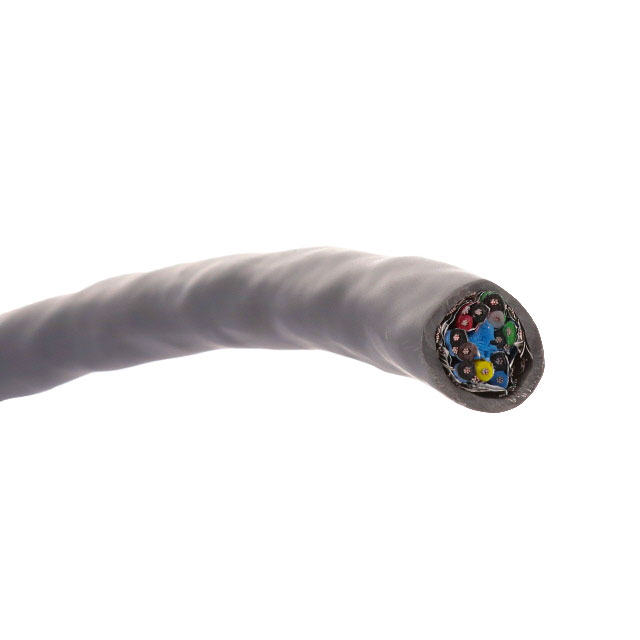

8166 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 12COND 24AWG
| Part | Shield Coverage | Shield Material | Number of Conductors | Jacket Color | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Wire Gauge | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Usage | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Material | Length | Length | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 12 | Chrome | Braid Foil | 60 °C | -40 C | Drain Wire | 24 AWG | UL Style 2493 | 1.219 mm | 0.048 in | 11.33 mm | 0.446 in | Multi-Pair | Computer | Foam Polyethylene (FPE) | 7 | 32 AWG | Copper Tinned | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | |||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 12 | Chrome | Braid Foil | 60 °C | -40 C | Drain Wire | 24 AWG | UL Style 2493 | 1.219 mm | 0.048 in | 11.33 mm | 0.446 in | Multi-Pair | Computer | Foam Polyethylene (FPE) | 7 | 32 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 300 VDC |
