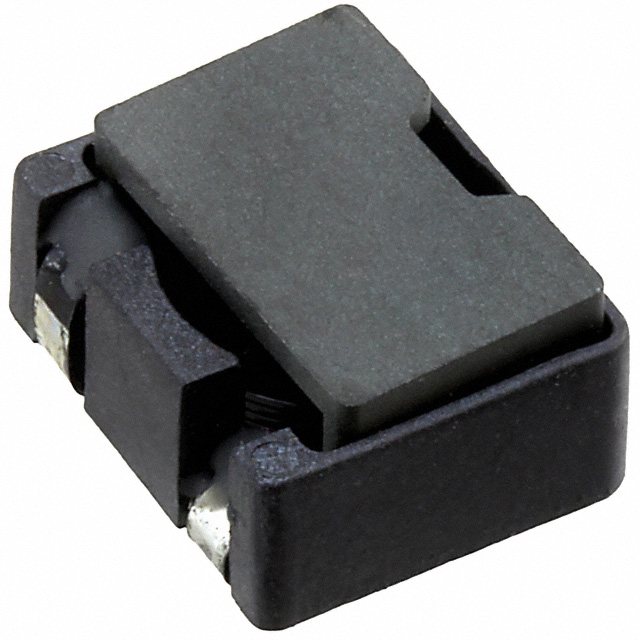

SRP1055 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 4.3UH 10A 8.5 MOHM SMD
| Part | Tolerance | Current - Saturation (Isat) | Material - Core | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Type | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current Rating (Amps) | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 20 % | 8 A | Ferrite | -55 C | 150 °C | Surface Mount | Drum Core Wirewound | Nonstandard | 0.228 " | 5.8 mm | 4.3 µH | 0.368 in | 0.433 in | 11 mm | 9.35 mm | 10 A | 100 kHz | 8.5 mOhm | Shielded |
